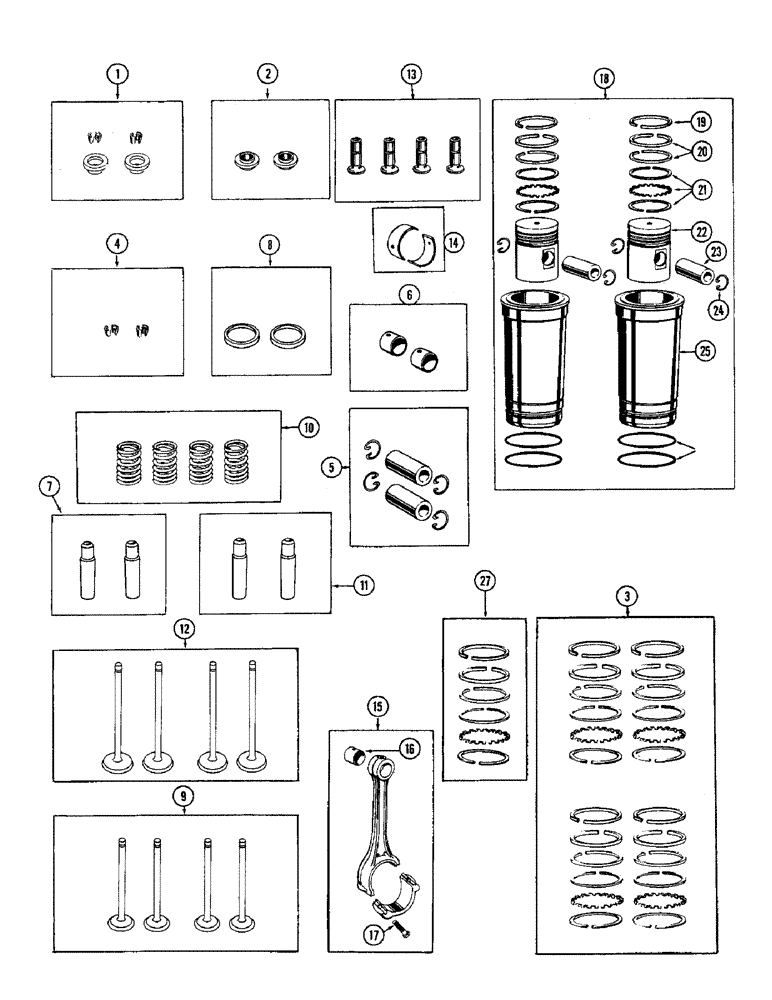

Запчасти Case W9A (016) - ENGINE REPAIR KITS, DIESEL (02) - ENGINE

1

A21657

LOCK

RETAINER KIT - intake valve (Set of 2 retainers and 4 locks)

2шт.

2

A24993

CAP

ROTO CAP KIT - exh. valve (Set of 2)

2шт.

3

A20856

PISTON RING SET

RING KIT - piston (Re-ring, 4 pistons)

1шт.

4

A21656

RETAINER

LOCK KIT - valve (Set of 4) (2 per valve)

4шт.

5

A21725

KIT

PIN KIT - piston (Set of 2 pins & 4 retainers)

2шт.

6

A21722

BUSHING

KIT - piston pin (Set of 2)

2шт.

7

A21674

GUIDE

KIT - exhaust valve (Set of 2)

2шт.

8

A21683

SHAFT

INSERT KIT - exh. valve (Set of 2)

2шт.

9

A22840

X

VALVE KIT - exhaust (Set of 4)

1шт.

10

A21694

SPRING

KIT - valve, int. & exh. (Set of 4)

2шт.

11

A21671

GUIDE

KIT - intake valve (Set of 2)

2шт.

12

A22839

KIT

VALVE KIT - intake (Set of 4)

1шт.

13

A21653

KIT

LIFTER KIT - valve (Set of 4)

2шт.

14

A20393

LINING

LINER KIT - conn. rod, (Std. size)

4шт.

14

A20569

JOURNAL

LINER KIT - conn. rod (.-.002")

4шт.

14

A20571

BEARING LINER

LINER KIT - conn. rod (-.010")

4шт.

14

A20573

KIT

LINER KIT - conn. rod (-.020")

4шт.

14

A20576

LINING

LINER KIT - conn. rod (-.030")

4шт.

15

A24424

ROD

ASSY - connecting

4шт.

16

NSS

NOT SOLD SEPARAT

BUSHING - rod & piston (Order A21722)

4шт.

17

O9718AB

X

SCREW - cap, conn. rod

2шт.

18

A23668

X

SLEEVE & PISTON KIT - cyl. (Set of 2)

2шт.

19

NSS

NOT SOLD SEPARAT

RING - piston, top (Order A40363)

4шт.

20

NSS

NOT SOLD SEPARAT

RING - piston, 2nd & 3rd (Order A40363)

4шт.

21

NSS

NOT SOLD SEPARAT

RING - piston, oil (Order A40363)

4шт.

22

A33712

X

PISTON - cyl. block

2шт.

23

NSS

NOT SOLD SEPARAT

PIN - piston (Order A21725)

2шт.

24

NSS

NOT SOLD SEPARAT

RING - retaining, piston pin (Order A21725)

4шт.

25

A23660

SLEEVE

- cylinder

2шт.

26

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - cylinder sleeve

4шт.

27

A40363

RING

KIT - piston (Re-ring, single piston)

4шт.
