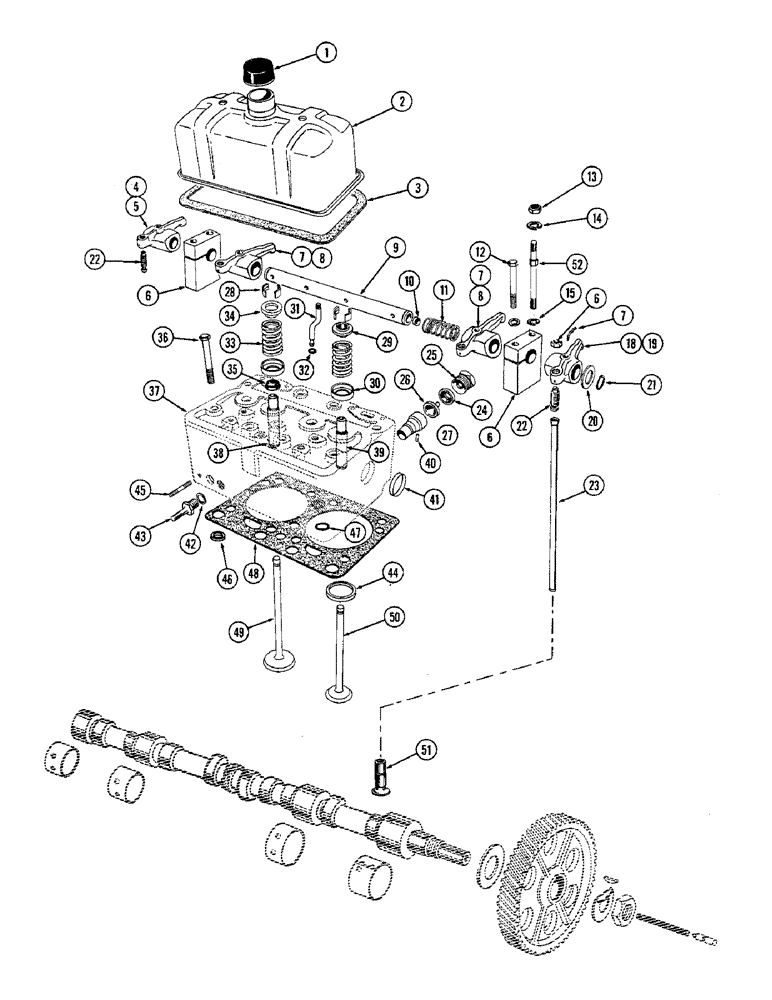

Запчасти Case W9A (006) - CYLINDER HEAD AND VALVE ASSEMBLY, DIESEL (02) - ENGINE

1

O9960AB

X

BREATHER - cylinder head cover

2шт.

2

A20345

COVER ASSY. - cylinder head

2шт.

3

O9959AB

X

GASKET - cylinder head cover

2шт.

4

4609AA

ARM ASSY. - exh. valve rocker (#2 and 4 cyl.)

2шт.

5

O9767AB

X

BUSHING - rocker arm

1шт.

6

O9773AB

BRACKET - rocker arm shaft

4шт.

7

4607AA

X

ARM ASSY. - intake valve rocker

4шт.

8

O9767AB

X

BUSHING - rocker arm

1шт.

9

A23671

X

SHAFT ASSY. - rocker arm

2шт.

10

A22318

PLUG - rocker arm shaft

2шт.

11

O9769AB

X

SPRING - rocker arm shaft

2шт.

12

15-764

BOLT (SPREADER)

BOLT - 7/16" x 4" N.C., hex

4шт.

13

25-117

NUT,7/16"-20, G5

- 7/16" N.F., hex

4шт.

14

A23683

WASHER

- cyl. head cover nut

4шт.

15

92-7

LOCK WASHER,7/16"

8шт.

16

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F., hex

8шт.

17

O9882AB

X

WICK - exhaust rocker arm

4шт.

18

4608AA

ARM ASSY. - exh. valve rocker (#1 and 3 cyl.)

2шт.

19

O9767AB

X

BUSHING - rocker arm

1шт.

20

O9770AB

X

WASHER - rocker arm shaft

12шт.

21

O3658CH

X

RING - retainer, rocker arm shaft

4шт.

22

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adj., push rod

8шт.

23

A21060

ROD

- push

8шт.

24

A11813

PLUG

SCREW - powrcel clamp

4шт.

25

A11812

CLAMP

- powrcel

4шт.

26

A22975

CAP

- powrcel

4шт.

27

A22978

BODY

ASSY. - powrcel

4шт.

28

NSS

NOT SOLD SEPARAT

LOCK - retainer, valve spring (Order A21656 Figure 16)

16шт.

29

NSS

NOT SOLD SEPARAT

CAP ASSY. - roto, exh. valve (Order A23174 Figure 16)

4шт.

30

O9751AB

X

SEAT - spring, int. & exh. valve

8шт.

31

O9771AB

X

TUBE - oil, rocker arm shaft

2шт.

32

O9772AB

X

"O" RING - rocker arm shaft oil tube

2шт.

33

NSS

NOT SOLD SEPARAT

SPRING - exh. & int. valve (Order A21694, Figure 16)

8шт.

34

NSS

NOT SOLD SEPARAT

RET. - intake valve spring (Order A21657, Figure 16)

4шт.

35

A10726

SEAL

SHIELD - intake valve (Rubber)

4шт.

36

A23355

BOLT

- cylinder head

18шт.

37

A21022

HEAD

ASSY. - cylinder

2шт.

38

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order A21671 Figure 16)

4шт.

39

NSS

NOT SOLD SEPARAT

GUIDE - exh. valve (Order A21674 Figure 16)

4шт.

40

A11810

PIN,3.19mm OD x 6.99mm L

- locating, powrcel body

2шт.

41

A23653

X

PLUG - cup, cyl. head

2шт.

42

A10679

GASKET

- nozzle holder stud, large

2шт.

43

A10678

STUD

- nozzle holder, large

2шт.

44

NSS

NOT SOLD SEPARAT

INSERT - exh. valve (Order A21683 Figure 16)

4шт.

45

O9848AB

X

STUD - nozzle holder, small

4шт.

46

A7669

RING

- seal, cyl. head gasket (Rubber)

4шт.

47

O8569AB

X

"O" RING - oil passage, cyl. head

2шт.

48

A23117

GASKET

- cylinder head

2шт.

REF#48 REPLACED BY A57593 AND A34686 11/8/96

1шт.

49

NSS

NOT SOLD SEPARAT

VALVE - intake (Order A22839, Figure 16)

4шт.

50

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order A22840, Figure16)

4шт.

51

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order A21653, Figure 16)

8шт.

52

O9774AB

STUD - rocker arm brkt. & cyl. hd. cover

4шт.
