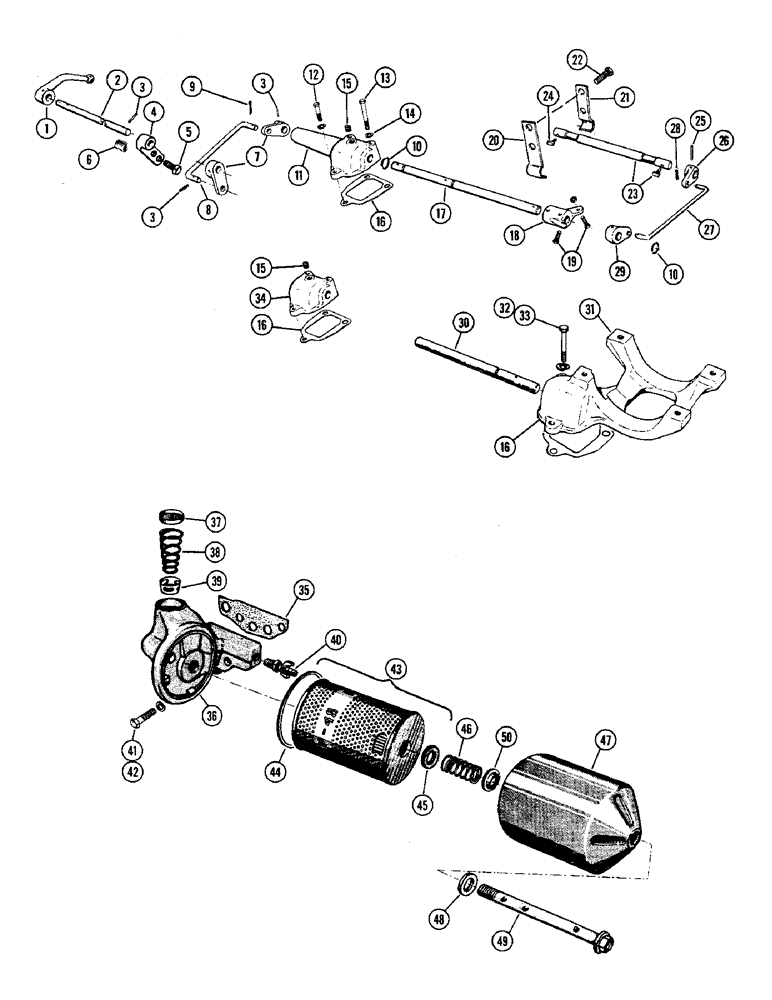

Запчасти Case W9A (004) - DECOMPRESSOR SYSTEM, DIESEL, OIL FILTER (02) - ENGINE

1

A7542

LEVER - hand control, decompressor

1шт.

2

A12460

SHAFT - hand lever

1шт.

3

138-96

LOCK PIN,3/16" x 1", Slotted

PIN - lock, 3/8" SAE

4шт.

4

A12461

BRACKET - hand lever shaft

1шт.

5

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.C., hex

2шт.

6

O7348AB

SPACER - control shaft

1шт.

7

A7541

LEVER - control shaft and link

2шт.

8

A12462

LINK - control

1шт.

9

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

2шт.

10

O9787AB

X

"O" RING - decompressor control

3шт.

11

6457A

HOUSING - control shaft

1шт.

12

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16" x 1-3/4" N.C., hex

4шт.

14

92-5

LOCK WASHER,5/16"

3шт.

15

221-41

PLUG

- 1/8" P.T. slotted hd.

1шт.

16

A22939

GASKET

- decompressor hsg.

2шт.

17

O10713AB

SHAFT - intermediate control

1шт.

18

6458A

COUPLING - control shaft stop

1шт.

19

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

20

O9783AB

BRACKET - shaft, bottom

4шт.

21

O9782AB

BRACKET - shaft, top

4шт.

22

15-764

BOLT (SPREADER)

BOLT - 7/16" x 4" N.C., hex

4шт.

23

A23096

SHAFT ASSY - decompressor

2шт.

24

A23095

AXLE PIN

PIN - trip

2шт.

25

138-96

LOCK PIN,3/16" x 1", Slotted

PIN - lock, 3/8" SAE

1шт.

26

6418A

LEVER - control

1шт.

27

O9790AB

ROD - link, decompressor control

2шт.

28

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

4шт.

29

6418A

LEVER - control

2шт.

30

O9785AB

SHAFT - control, short

1шт.

31

A22183

HOUSING, brkt., decompressor & final filter (Used on late model loader)

1шт.

32

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

33

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2"

2шт.

34

6324A

HOUSING - decompressor, front (Used on early model loader)

1шт.

35

A21084

GASKET

- oil filter base, oil filter

1шт.

36

A23469

BASE

ASSY - engine oil filter

1шт.

37

41-1620

PLUG,Cup, 1 1/4", Stainless

- oil filter

1шт.

38

A21091

VALVE SPRING

SPRING - relief valve, oil filter

1шт.

39

A21090

VALVE

- filter relief, oil filter

1шт.

40

A23656

COCK, DRAIN

VALVE - drain, oil filter

1шт.

41

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Oil filter Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

42

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C., hex, oil filter

1шт.

43

A21475

ENGINE OIL FILTER

ELEMENT KIT - oil filter

1шт.

44

A21473

GASKET

- filter shell, oil filter

1шт.

45

A21474

GASKET

- retainer bolt, inner, oil filter

1шт.

46

A21478

SPRING

- retainer, filter element, oil filter

1шт.

47

A21471

SHELL

- oil filter

1шт.

48

A21479

GASKET

- retainer bolt, outer, oil filter

1шт.

49

A21476

BOLT

ASSY - retainer, filter, oil filter

1шт.

50

A21477

RETAINER

- spring, oil filter

1шт.
