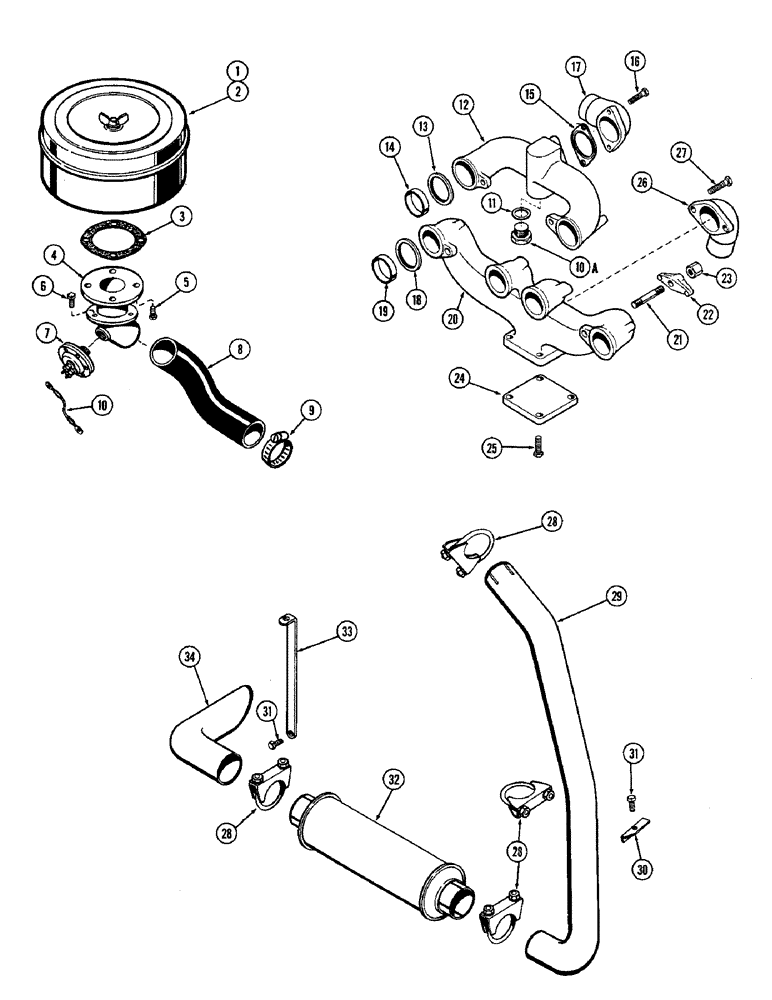

Запчасти Case W9A (002) - DRY AIR CLEANER SYSTEM, DIESEL, MANIFOLDS, EXHAUST PIPE AND (02) - ENGINE

1

A14417

AIR CLEANER

CLEANER ASSY - air, 8" dry-type (Late model) (Repair list Figure 52)

1шт.

2

A15169

CLEANER ASSY - air, 5" dry type (Early model) (Repair list, Figure 52) (Order A14417)

1шт.

3

A15304

GASKET

-, Serial Range: cleaner-support

1шт.

4

A15170

SUPPORT - air cleaner

1шт.

5

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

6

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

3шт.

7

A14739

SWITCH ASSY - vacuum, cleaner warning

1шт.

8

A15172

HOSE ASSY.

HOSE - cleaner support to intake elbow

1шт.

9

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, #16

2шт.

10

O5598AB

WIRE - vacuum, Serial Range: switch-ground

1шт.

10a

A20917

PLUG

- intake manifold, manifolds

1шт.

11

A20916

MANIFOLD GASKET

GASKET - manifold plug, manifolds

1шт.

12

A21005

MANIFOLD - intake, manifolds

1шт.

13

A21054

MANIFOLD GASKET

- intake manifold, manifolds

2шт.

14

A21053

BUSHING,55.5mm ID x 57.15mm OD x 12.7mm L

FERRULE - intake manifold, manifolds

2шт.

15

A21055

MANIFOLD GASKET

- intake manifold elbow, manifolds

1шт.

16

A21007

ELBOW - intake manifold, manifolds

1шт.

17

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Manifolds Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

18

A11888

MANIFOLD GASKET

- exhaust manifold, manifolds

4шт.

19

A21056

CAP

FERRULE - exhaust manifold, manifolds

4шт.

20

A20385

MANIFOLD - exhaust, manifolds

1шт.

21

O9817AB

X

STUD - intake & exhaust manifold, manifolds

4шт.

22

A24368

CLAMP

- intake & exhaust manifold, manifolds

4шт.

23

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex, manifolds

4шт.

24

A20387

COVER - outlet, exh. manifold, manifolds

1шт.

25

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Manifolds Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

26

A21388

ELBOW - exhaust manifold, manifolds

1шт.

27

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Manifolds Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

28

A13240

CLAMP,2-5/8" ID

- exh. pipe and muffler

4шт.

29

A15168

PIPE CLAMP

PIPE - exhaust, exhaust pipe and muffler

1шт.

30

A15165

BRACKET - exh. pipe and clamp, exhaust pipe and muffler

1шт.

31

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F., hex, exhaust pipe and muffler

2шт.

32

A15163

MUFFLER

- engine exhaust, exhaust pipe and muffler

1шт.

33

A15164

SUPPORT - muffler, exhaust pipe and muffler

1шт.

34

A15162

ELBOW - muffler, exhaust pipe and muffler

1шт.
