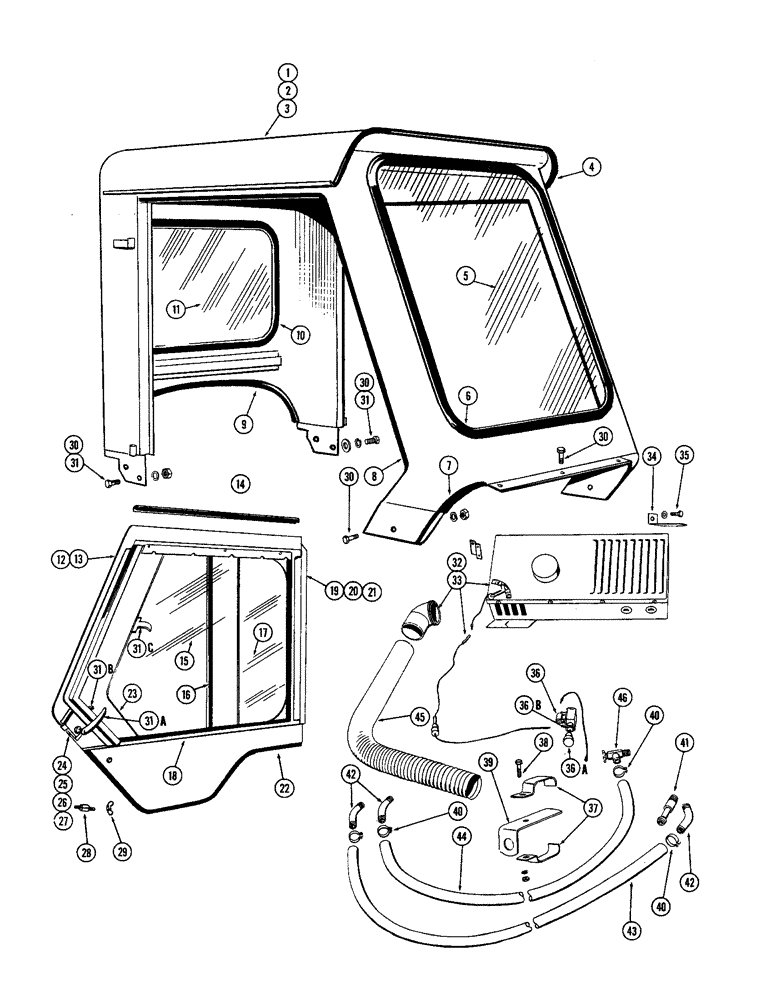

Запчасти Case W9A (166) - OPERATORS CAB, HEATER AND DEFROSTER (09) - CHASSIS

1

A12607M

CAB ASSY - operators, w/wiper & door

1шт.

2

A12603

CAP ASSY - operators, w/o wiper

1шт.

3

A12573

CAP ASSY - operators, w/o wiper & doors

1шт.

4

A13225

MOULDING - cab, frt. top-edge (Rubber)

1шт.

5

A12569

GLASS - windshield, cab

1шт.

6

A12571

MOULDING - windshield

1шт.

7

A12605

MOULDING - operators cab (6")

2шт.

8

A12600

STRIP - weather, cab door

2шт.

9

A12604

MOULDING - cab, lower rear (37")

1шт.

10

A12572

MOULDING - rear window

1шт.

11

A12570

GLASS - rear window, cab

1шт.

12

A12596

DOOR ASSY - cab, R.H.

1шт.

13

A12597

DOOR ASSY - cab, L.H.

1шт.

14

A12592

CHANNEL - window, top

1шт.

15

A12594

GLASS - sliding, door (W/pulls) (Frt.)

1шт.

16

A12593

STRIP - weather, door

1шт.

17

A12595

GLASS - door, rear sliding

1шт.

18

A12591

CHANNEL - window, bottom

1шт.

19

A12588

HINGE ASSY - door, R.H.

2шт.

20

A12589

HINGE ASSY - door, L.H.

2шт.

21

182-44

SCREW,Sl Pan Hd, #6 - 32 x 3/8"

- self-tape, #6-32 x 3/8" Pan. hd.

4шт.

22

A12601

STRIP - weather, lower door

2шт.

23

A12602

SPACER - door latch

2шт.

24

A12598

LATCH ASSY - door, R.H.

1шт.

25

A12599

LATCH ASSY - door, L.H.

1шт.

26

173-77

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- mach., #8-32 x 1/2" N.C., rd. hd.

8шт.

27

179-77

SCREW - mach., #8-32 x 1/2" N.C. Oval hd.

4шт.

28

A13042

STUD - hold down, door

2шт.

29

129-410

WING NUT,3/8"-16

NUT - wing, 3/8" N.C.

2шт.

A13039

MOTOR ASSY - wiper (12 V) (Not illust.)

1шт.

A10893

ARM

- wiper, 14" (Not illust.)

1шт.

A10894

WINDSHIELD WIPER

BLADE - wiper, 14" str. (Not illust.)

1шт.

30

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F., hex

5шт.

31

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT - 3/8" x 1/2" N.C., hex

4шт.

31a

A20598

HANDLE - door, inside

2шт.

31b

A20602

HANDLE - door, outside

2шт.

31c

A19860

PULL - window, side

2шт.

A12886M

HEATER ATTACHMENT - cab

1шт.

32

A12897

HEATER ASSY - cab, w/defroster, heater and defroster

1шт.

33

A18347

MOTOR HOUSING

MOTOR - fan, 12 volt, heater and defroster

1шт.

34

A13028

BRACKET - support, heater, and defroster

1шт.

35

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Heater and defroster Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

36

A12898

SWITCH

ASSY - control, heater, and defroster

1шт.

36a

A19944

KNOB - switch, heater and defroster

1шт.

36b

A19945

NUT - switch mtg., heater and defroster

1шт.

37

A13029

CLIP

- heater hose (1 w/dry & 2 w/oil cleaner), heater and defroster

2шт.

38

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F., hex, heater and defroster

2шт.

39

A13030

BRACKET - hose clip (W/dry air cleaner, heater and defroster

1шт.

40

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, heater and defroster

4шт.

41

A16511

FITTING - heater hose, heater and defroster

1шт.

42

218-8626

CONNECTOR - 3/8" x 1/2" P.T., heater and defroster

3шт.

43

A19942

HOSE

- heater, 1/2" x 13 ft., heater and defroster

1шт.

44

A19943

HOSE

- heater, 1/2" x 12 ft., heater and defroster

1шт.

45

A36110

HOSE - defroster, 2" I.D. x 24", heater and defroster

1шт.

46

A16764

VALVE

CONNECTOR ASSY - 3/8" P.T. x 1/2", heater and defroster

1шт.
