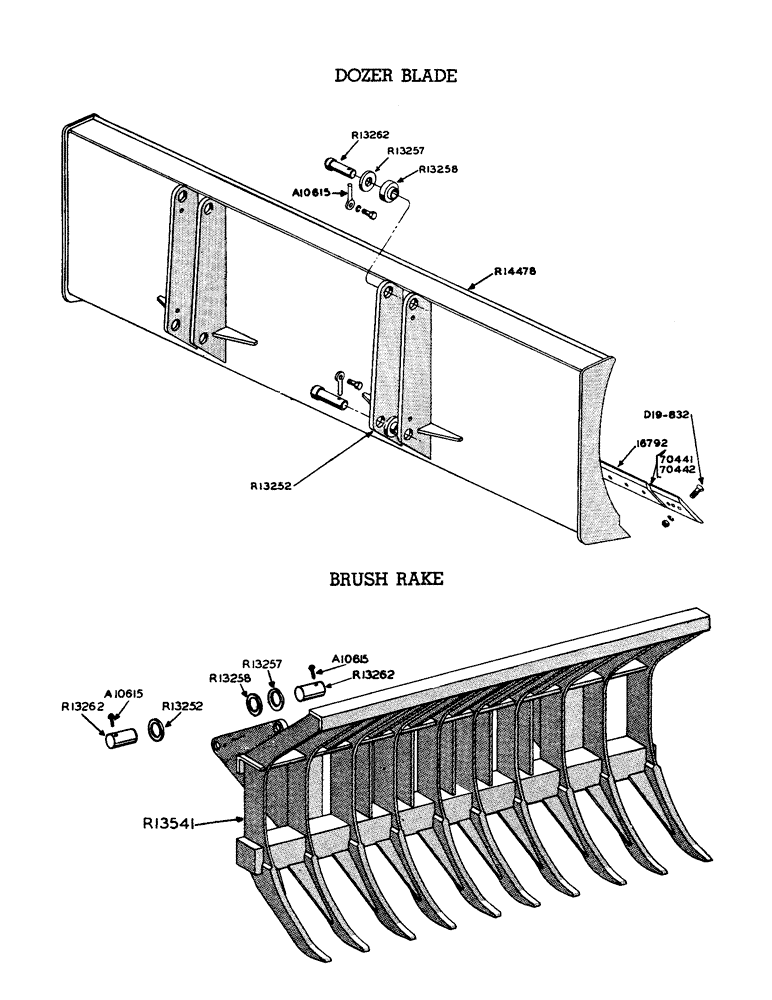

Запчасти Case W9 (156) - DOZER BLADE, BRUSH RAKE (09) - CHASSIS

16792

EDGE, CUTTING

BLADE - cutting

1шт.

70441

BLADE

- cutting (R.H. end)

1шт.

70442

BLADE

- cutting (L.H. end)

1шт.

A10615

LOCK ASSY

LOCK PIN - pivot pin

4шт.

1/2" x 1" N.C. hex. bolt w/lockwasher

4шт.

D19-832

BOLT - plow (1/2" x 2" N.C.) For blade

18шт.

1/2" N.C. nut and lockwasher

18шт.

R13252

SPACER - lower inner

2шт.

R13257

SPACER - upper outer

2шт.

R13258

SPACER - upper inner

2шт.

R13262

PIN - upper and lower pivot

4шт.

R14478

DOZER ASSEMBLY

1шт.

Z1656

BOLT - plow (Includes nut) 5/8" x 2-1/4" N.C. for blade ends

6шт.

5/8" lockwasher

6шт.

A10615

LOCK ASSY

LOCK PIN - pivot pin, brush rake

4шт.

1/2" x 1" fin. hex. bolt N.C. w/lockwasher, brush rake

4шт.

R13252

SPACER - lower inner, brush rake

2шт.

R13257

SPACER - upper outer, brush rake

2шт.

R13258

SPACER - upper inner, brush rake

2шт.

R13262

PIN - upper and lower pivot, brush rake

2шт.

R13541

RAKE - brush

1шт.
