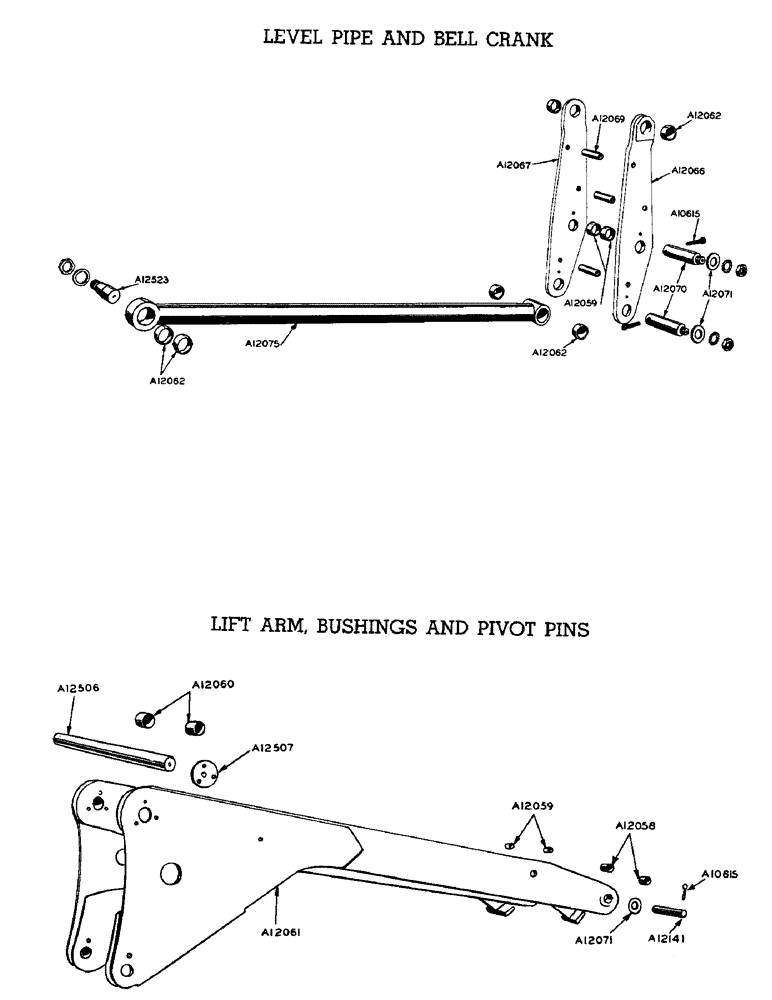

Запчасти Case W9 (152) - LEVEL PIPE AND BELL CRANK, LIFT ARM, BUSHINGS AND PIVOT PINS (09) - CHASSIS

A10615

LOCK ASSY

LOCK - pivot pin for A12070

4шт.

1/2" x 1" fin. hex. bolt N.C. w/lockwasher

4шт.

A12059

BUSHING

- bellcrank pivot

4шт.

A12062

BUSHING

- for A12075, A12066 and A12067

12шт.

A12066

CRANK - bell, R.H. w/1-A12062 bushing (See A15088)

2шт.

A12067

SPARE PART

CRANK - bell, L.H. w/1-A12062 bushing (See A15089)

2шт.

A12069

STRUT

PIPE - bellcrank spacer

6шт.

3/4" x 6-1/2" fin. hex. bolt w/fin. hex. nut

6шт.

3/4" Shakeproof ext., lockwasher #1132-00

6шт.

A12070

AXLE PIN

PIVOT PIN - bellcrank and level link

4шт.

1/8" str. Lincoln fitting

4шт.

1-1/4" fin. hex. jam nut N.F.

4шт.

1-1/4" Shakeproof ext. lockwasher #1140-01

4шт.

A12071

WASHER

- bell crank and level link pivot pin

4шт.

A12075

PLATE

PIPE - level w/4-A12062 bushing (See A15085)

2шт.

1/8" str. Lincoln fitting

2шт.

A12523

PIN

PIVOT PIN - level link, rear

2шт.

1-1/2" fin. hex. jam nut N.F. w/lockwasher

2шт.

A15085

PIPE - level (High lift attachment) (See A12071) With bushings

2шт.

A15088

CRANK - bell R.H. (High lift attachment) (See A12066)

1шт.

A15089

CRANK - bell L.H. (High lift attachment) (See A12067)

1шт.

A10615

LOCK ASSY

LOCK - pivot pin, for A12141 pin, lift arm, bushings and pivot pins

2шт.

1/2" x 1" fin. hex. bolt N.C. w/lockwasher, lift arm, bushings and pivot pins

2шт.

A12058

BUSHING,44.88mm ID x 53.92mm OD x 38.1mm L

- bucket pivot pin, lower, lift arm, bushings and pivot pins

2шт.

A12059

BUSHING

- bellcrank pivot, lift arm, bushings and pivot pins

2шт.

A12060

X

BUSHING - lift arm pivot, lift arm, bushings and pivot pins

4шт.

A12061

ARM - lift w/4-A12058 bushings, 4-A12059 bushings and 2-A12060 bushings (Standard lift) (See A15086), lift arm, bushing and pivot pins

1шт.

A12071

WASHER

- pivot pin, front, lift arm, bushings and pivot pins

2шт.

A12141

PIVOT PIN - bucket, lower, 1-3/4" x 6-3/4", lift arm, bushings and pivot pins

2шт.

1/8" str. Lincoln fitting, lift arm, bushings and pivot pins

2шт.

A12506

X

SHAFT - lift arm pivot, lift arm, bushings and pivot pins

1шт.

1/8" str. Lincoln fitting, lift arm, bushings and pivot pins

2шт.

A12507

PLATE - lift arm pivot shaft end, lift arm, bushings and pivot pins

2шт.

3/8" x 1-1/4" fin. hex. bolt N.F. w/nut and lockwasher, lift arm, bushings and pivot pins

6шт.

A15086

LIFT ARM (High lift attachment) With bushings, lift arm, bushings and pivot pins

1шт.

FOOTNOTE

1шт.

NOTE:REFER TO A 12141 MEASURES 1 3/4" x 6 3/4"

1шт.
