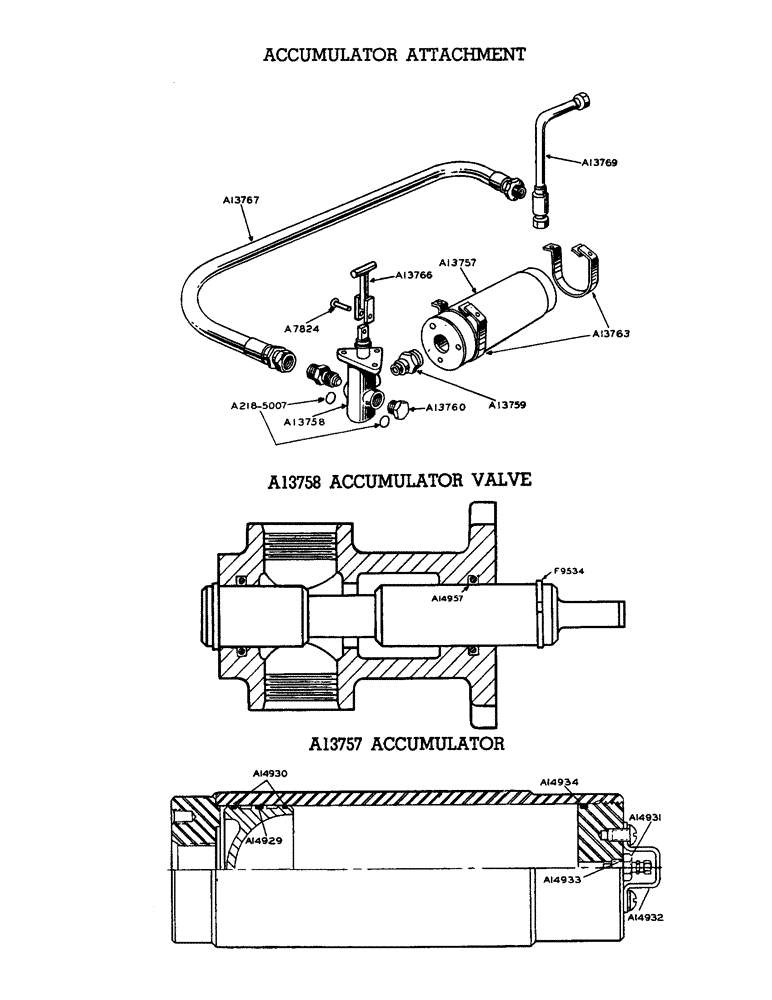

Запчасти Case W9 (146) - ACCUMULATOR ATTACHMENT, A13758 ACCUMULATOR VALVE, A13757 (09) - CHASSIS

A7824

X

PIN - valve handle

1шт.

3/32" x 5/8" cotter pin

1шт.

A12317

X

"O" RING

2шт.

A12320

X

"O" RING

1шт.

A13689

X

ADAPTER - straight "O" ring

1шт.

A13757

ACCUMULATOR

1шт.

A13758

VALVE - control

1шт.

A13759

FITTING

- reducer

1шт.

A13760

X

PLUG - valve 7/8"

1шт.

A13763

BRACKET - accumulator mounting

2шт.

3/8" x 3/4" rd. hd. sq. neck bolt N.C. w/nut and lockwasher

2шт.

3/8" x 3/4" fin. hex. bolt N.C. w/nut and lockwasher

2шт.

A13766

HANDLE - valve control

1шт.

A13767

HOSE - accumulator supply

1шт.

A13769

TUBE - control valve to lift cylinder inner manifold

1шт.

A13772

PLATE - platform

1шт.

A14957

X

"O" RING, A13758 accumulator valve

2шт.

A9534

SNAP RING - valve spool, A13758 accumulator valve

2шт.

A14929

O-RING

V - "O" ring - piston, A13757 accumulator

1шт.

A14930

RING - teflon piston, A13757 accumulator

2шт.

A14931

VALVE - gas, A13757 accumulator

1шт.

A14932

PROTECTOR - gas valve, A13757 accumulator

1шт.

3/8" x 5/8" rhd. mach. screw N.C. w/lockwasher, A13757 accumulator

2шт.

A14933

O-RING

"O" RING - gas valve, A13757 accumulator

1шт.

A14934

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

"O" RING - end cap, A13757 accumulator

1шт.
