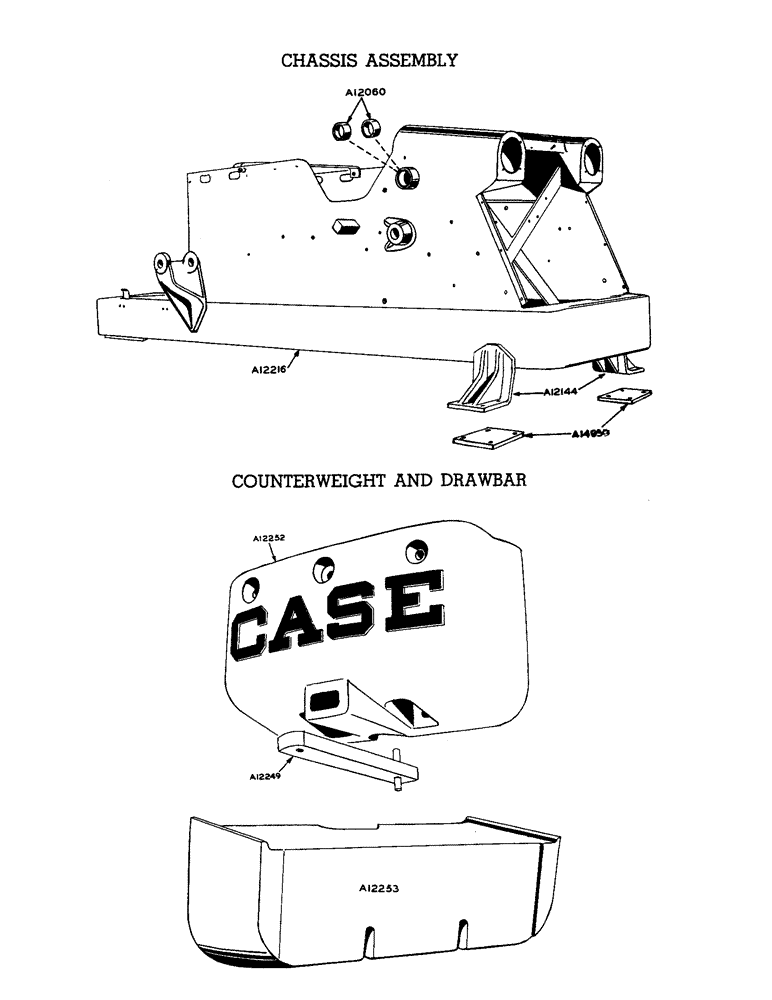

Запчасти Case W9 (134) - CHASSIS ASSEMBLY, COUNTERWEIGHT AND DRAWBAR (09) - CHASSIS

A12060

X

BUSHING - rear pivot arm

4шт.

A12144

BRACKET - front axle mounting

2шт.

A12216

CHASSIS - welded assembly w/4-A12060 bushing

1шт.

A14959

PLATE - front axle mounting, lower

2шт.

3/4" x 8" fin. hex. bolt N.F. w/nut and lockwasher

8шт.

A12249

DRAW BAR - w/pivot pin, counterweight and drawbar

1шт.

5/8" x 2" sq. hd. cup point set screw w/jam nut, counterweight and drawbar

1шт.

A12252

COUNTERWEIGHT - rear, counterweight and drawbar

1шт.

3/4" x 4" fin. hex. bolt N.C. w/nut and lockwasher, counterweight and drawbar

2шт.

3/4" x 13-1/2" fin. hex. bolt N.C. w/nut and lockwasher, counterweight and drawbar

3шт.

A12253

COUNTERWEIGHT - lower, counterweight and drawbar

1шт.

3/4" x 11-1/2" fin. hex. bolt N.C. w/nut and lockwasher, counterweight and drawbar

2шт.

3/4" x 13" fin. hex. bolt N.C. w/nut and lockwasher, counterweight and drawbar

3шт.

3/4" x 8-1/2" hex. bolt N.C. w/plain washer, nut and lockwasher, counterweight and drawbar

5шт.

3/4" x 8-1/2" hex. bolt N.C. w/plain washer, nut and lockwasher, counterweight and drawbar

3шт.
