(132) - ENGINE HOOD AND SIDE PANELS, SIDE PANELS, FRONT PANEL AND

Запчасти Case W9 (132) - ENGINE HOOD AND SIDE PANELS, SIDE PANELS, FRONT PANEL AND (09) - CHASSIS

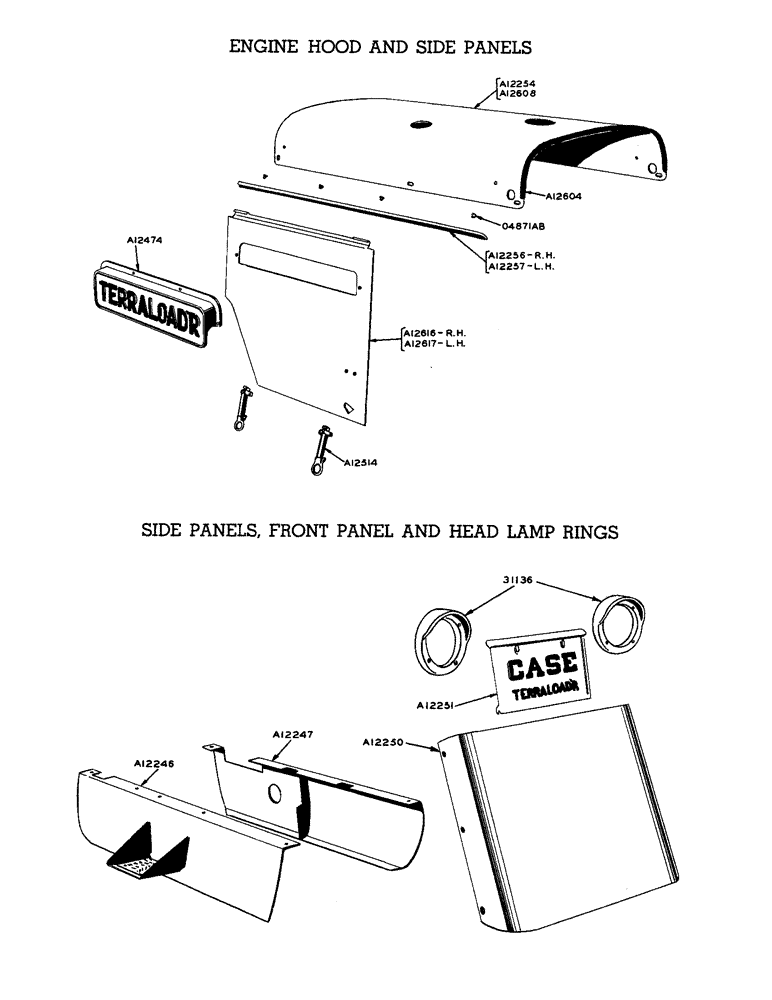

Схема запчастей Case W9 - (132) - ENGINE HOOD AND SIDE PANELS, SIDE PANELS, FRONT PANEL AND (09) - CHASSIS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A12254

HOOD - for all but cab installation (See A12608)

1шт.

3/8" x 1/2" fin. hex. bolt N.F. w/plain washer and lockwasher (Zinc plated)

2шт.

A12256

MOULDING - hood, R.H.

1шт.

A12257

MOULDING - hood, L.H.

1шт.

A12474

PLATE - name, hood side

2шт.

5/16" x 1" fin. hex. bolt N.F. w/nut and lockwasher

8шт.

A12514

LATCH

- hood side

4шт.

#12-24 x 5/8" N.C. rhd. mach. screw w/nut and lockwasher

8шт.

A12604

MOULDING - rubber, front of hood 37"

1шт.

A12608

HOOD - for cab installation only (See A12254)

1шт.

3/8" x 1/2" fin. hex. bolt N.F. w/plain washer and lockwasher (Zinc plated)

2шт.

A12616

SIDE - hood R.H.

1шт.

A12617

SIDE - hood L.H.

1шт.

A15595

ANGLE - hood hold-down (Not illustrated)

2шт.

3/8" x 3/4 N.C. hex. bolt w/nut and lockwasher

2шт.

5/16" x 3/4" truss hd. mach. screw w/type "U" Tinnerman nut

2шт.

O4871AB

CLIP - hood mouling spring, side panels, front panel and head lamp rings

8шт.

31136

RING - head lamp mounting, side panels, front panel and head lamp rings

2шт.

1/4" x 1-1/4" oval hd. mach. screw N.C., side panels, front panel and head lamp rings

8шт.

A12246

PANEL - lower side and step, R.H., side panels, front panel and head lamp rings

1шт.

3/8" x 1-1/4" fin. hex. bolt N.F. cadmium plated, w/hex. nut and lockwasher, side panels, front panels and head lamp rings

5шт.

A12247

PANEL - lower side and step, L.H., side panels, front panel and head lamp rings

1шт.

3/8" x 1-1/4" fin. hex. bolt N.F. cadmium plated, w/hex. nut and lockwasher, side panels, front panel and head lamp rings

5шт.

A12250

PANEL - front cover, side panels, front panel and head lamp rings

1шт.

3/8" x 3/4" fin. hex. bolt N.F. and lockwasher (Zinc plated), side panels, front panel and head lamp rings

6шт.

A12251

NAME PLATE - front cover, side panels, front panel and head lamp rings

1шт.

5/16" x 1" fin. hex. hd. Shakeproof screw N.C. w/lockwasher (Cadmium plated), side panels, front panel and head lamp rings

2шт.
