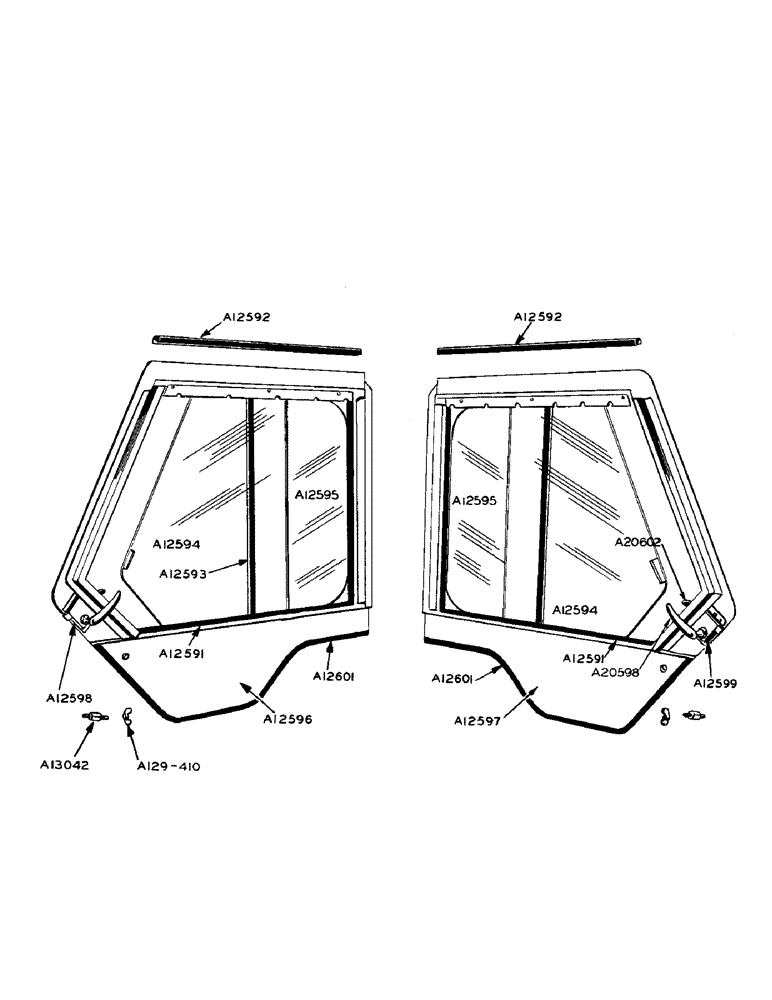

Запчасти Case W9 (130) - R.H. AND L.H. DOOR PANELS, CAB HEATER AND DEFROSTER, FRONT (09) - CHASSIS

A129-410

WING NUT - N.C. zinc plated for A13042

2шт.

A12591

CHANNEL - window, front, bottom and rear

2шт.

A12592

CHANNEL - window, top

2шт.

A12593

WEATHER STRIP - cab door glass

2шт.

A12594

GLASS - front, R.H. and L.H. with metal pulls

2шт.

A12595

GLASS - rear, R.H. and L.H. with metal pulls

2шт.

A12596

PANEL - cab door assembly, R.H.

1шт.

#6 - 32 x 3/8" type 1 pan hd. self tapping screw

3шт.

A12597

PANEL - cab door assembly, L.H.

1шт.

#6 - 32 x 3/8" type 1 pan hd. self tapping screw

3шт.

A12598

LATCH - cab door, R.H.

1шт.

#8 - 32 x 1/2" oval hd. mach. screw N.C. w/lockwasher

2шт.

#8 - 32 x 1/2" rd. hd. mach. screw N.C. w/lockwasher

4шт.

A12599

LATCH - cab door, L.H.

1шт.

#8 - 32 x 1/2" oval. hd. mach. screw N.C. w/lockwasher

2шт.

#8 - 32 x 1/2" rd. hd. mach. screw N.C. w/lockwasher

4шт.

A12601

WEATHER STRIP - cab door, lower

2шт.

A12602

SPACER - between door latch and door

2шт.

A13042

STUD - door hold-down

2шт.

3/8" std. wrot washer

2шт.

A20598

HANDLE - inside door latch

2шт.

A20602

HANDLE - outside door latch

2шт.

A12897

HEATER - 12 volt, cab heater and defroster

1шт.

3/8" P.T. x 1/2" heater hose connector and shut-off valve, cab heater and defroster

1шт.

3/8" P.T. x 1/2" heater hose connector, cab heater and defroster

3шт.

1/2" hose clamp no. 3-1/2, cab heater and deforster

4шт.

12 ft. x 1/2" I.D. heater hose, cab heater and defroster

1шт.

13 ft. x 1/2" I.D. heater hose, cab heater and defroster

1шт.

2" I.D. x 24" defroster hose, cab heater and defroster

1шт.

A12898

SWITCH

- heater on and off - 12 volt, cab heater and defroster

1шт.

A13028

BRACKET - heater mounting support, cab heater and defroster

1шт.

1/4" x 3/4" fin. hex. bolt N.C. w/lockwasher, cab heater and defroster

1шт.

A13029

CLIP

- heater hose and power steering tube, cab heater and defroster

2шт.

A13030

BRACKET - heater hose and power steering tube clip, cab heater and defroster

1шт.

5/16" x 1" fin. hex. bolt N.F. w/nut and lockwasher, cab heater and defroster

1шт.

A10893

ARM

- 14" wiper, front windshield wiper and motor

1шт.

A10894

WINDSHIELD WIPER

BLADE - 14" straight wiper, front windshield wiper and motor

1шт.

A13039

MOTOR - windshield wiper (12 volt) w/built-in switch, front windshield wiper and motor

1шт.

A8210

CONNECTOR, ELEC

CONNECTOR - 3 wire, rear windshield wiper and motor

1шт.

A13202

WIRE - short w/connector, rear windshield wiper and motor

1шт.

A13203

WIRE - long, rear windshield wiper and motor

1шт.

A20266

MOTOR - windshield wiper (12 volt) w/built-in switch, rear windshield wiper and motor

1шт.

A20267

ARM - windshield wiper, rear windshield wiper and motor

1шт.

A20268

BLADE - windshield wiper, rear windshield wiper and motor

1шт.

O2825AB

X

CLIP - wire, rear windshield wiper and motor

6шт.

#10 - 32" x 1/2" rhd. mach. screw w/nut N.F. and lockwasher, rear windshield wiper and motor

6шт.

O8332AB

X

GROMMET - rubber, rear windshield wiper and motor

1шт.
