(W9) - CASE WHEEL LOADER (PRIOR TO S/N 8150186) (1/58-12/62)
/
(09) - CHASSIS
/

(128) - OPERATORS COMPARTMENT, OPERATORS CAB

Запчасти Case W9 (128) - OPERATORS COMPARTMENT, OPERATORS CAB (09) - CHASSIS

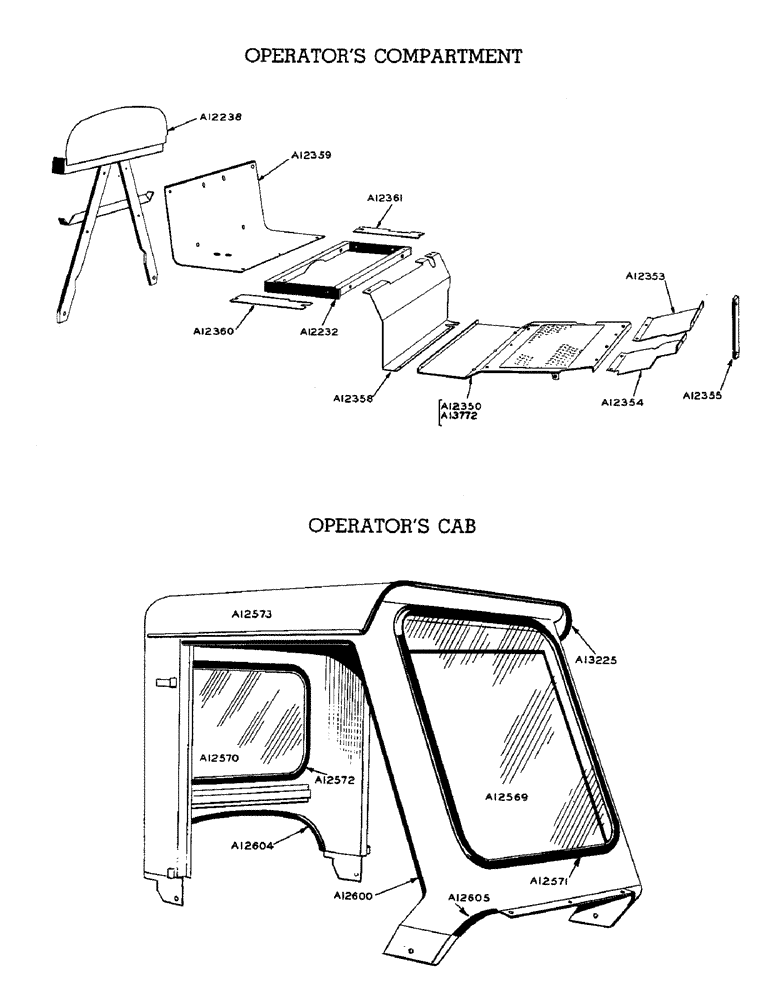

Схема запчастей Case W9 - (128) - OPERATORS COMPARTMENT, OPERATORS CAB (09) - CHASSIS

№

Артикул

Название

Примечание

Количество

A12232

SUPPORT - seat mounting

1шт.

1/2" x 7/8" fin. hex. bolt N.F. w/lockwasher

4шт.

1/2" x 1-3/4" hex. bolt w/nut and lockwasher

1шт.

A12238

SUPPORT - side plate and fuel tank front

1шт.

1/2" x 1-1/2" fin. hex. bolt N.F. w/nut and lockwasher

2шт.

5/8" x 1-3/4" fin. hex. bolt N.F. w/nut and lockwasher

2шт.

A12350

PLATE AND PAD - platform (See A13772)

1шт.

1/2" x 1-3/4" fin. hex. bolt N.C. w/lockwasher

2шт.

A12353

PLATE - front platform, L.H.

1шт.

A12354

PLATE - front platform, R.H.

1шт.

1/4" - 20 x 3/8" N.F. hex. washer hd. type 1 thread cutting screw

6шт.

A12355

SUPPORT - front platform plate, L.H.

1шт.

A12358

SHIELD - battery front

1шт.

1/4" - 20 x 3/8" N.F. hex. washer hd. type 1 thread cutting screw

3шт.

A12359

PANEL - operators compartment rear

1шт.

1/4" - 20 x 3/8" N.F. hex. washer hd. type 1 thread cutting screw

4шт.

A12360

SHIELD - battery top, R.H.

1шт.

1/4" x 1/2" N.C. thumb screw, Parker - Kalon type "S"

2шт.

A12361

SHIELD - battery top, L.H.

1шт.

1/4" x 1/2" N.C. thumb screw, Parker - Kalon type "S"

2шт.

A13772

PLATE AND PAD - platform (Use with hydraulic accumulator attachment only)

1шт.

A12569

GLASS - cab windshield, operators cab

1шт.

A12570

GLASS - cab rear panel, operators cab

1шт.

A12571

MOULDING - windshield glass, operators cab

1шт.

A12572

MOULDING - rear window, operators cab

1шт.

A12573

CAB - operators, w/out doors, operators cab

1шт.

3/8" x 1/2" fin. hex. bolt N.C., operators cab

7шт.

3/8" fin. hex. nut and lockwasher, operators cab

5шт.

A12600

WEATHER STRIP - cab door upper & front, operators cab

2шт.

A12604

MOULDING - rubber, operators cab (37"), operators cab

2шт.

A12605

MOULDING - rubber, operators cab (6"), operators cab

2шт.

A12608

HOOD - for cab installation only, operators cab

1шт.

3/8" x 1/2" fin. hex. bolt N.F. w/plain washer and lockwasher (Zinc plated), operators cab

2шт.

A13225

MOULDING - rubber, cab top front edge, operators cab

1шт.

Выбрано товаров: 34
