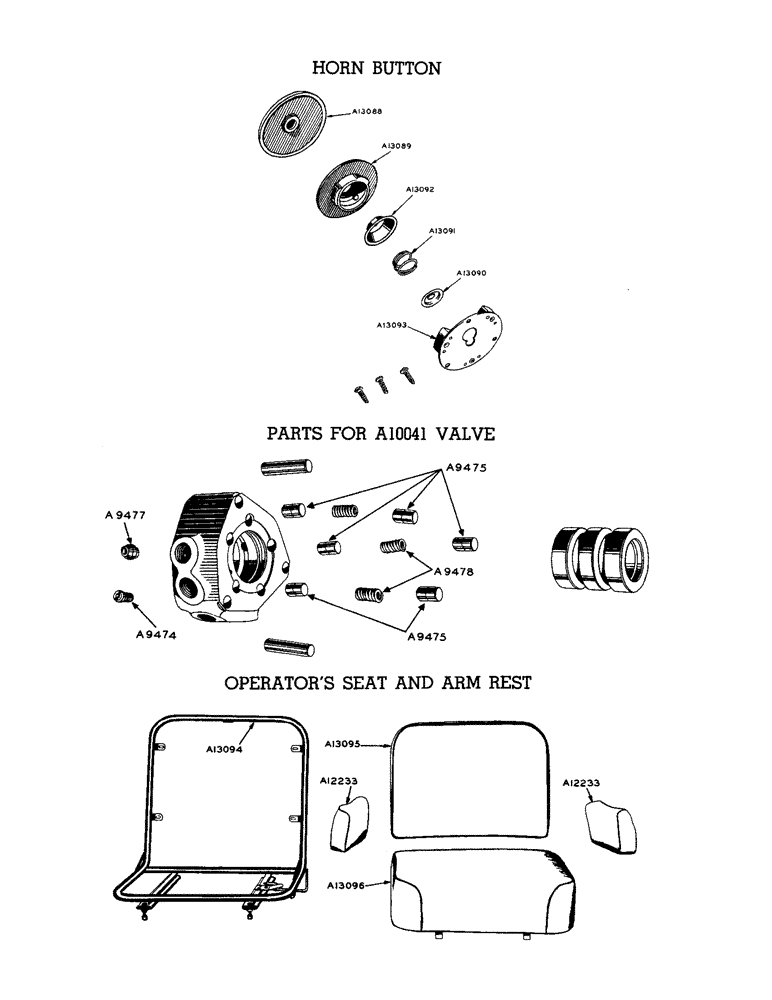

Запчасти Case W9 (126) - HORN BUTTON, PARTS FOR A10041 VALVE, OPERATORS SEAT AND ARM (09) - CHASSIS

A13088

CAP

- horn button rubber

1шт.

A13089

BUTTON

- horn

1шт.

A13090

CAP

- contact horn button

1шт.

A13091

SPRING

- horn button

1шт.

A13092

CAP

CUP - contact horn button

1шт.

A13093

PLATE ASSY.

PLATE - base assembly, horn button

1шт.

#10 x 5/8" rhd. sheet metal screw

3шт.

A9474

VALVE

- check, parts for A10041 valve

1шт.

A9475

PLUNGER

- active, parts for A10041 valve

6шт.

A9477

X

SEAT, parts for A10041 valve

3шт.

A9478

SPRING

parts for A10041 valve

3шт.

A12229

SEAT - operators (Includes seat, back rest and frame), operators seat and arm rest

1шт.

5/16" hex. nut N.F. w/lockwasher, operator seat and arm rest

4шт.

A12233

REST - operators seat and arm rest

2шт.

1/4" x 1-1/2" rhd. mach. screw N.C. (Cad. plated), operators seat and arm rest

4шт.

A13094

FRAME - seat assembly, operators seat and arm rest

1шт.

5/16" hex. nuts N.F. w/lockwasher, operators seat and arm rest

4шт.

A13095

CUSHION

- back rest, operators seat and arm rest

1шт.

1/4" x 3/4" rhd. stove bolts (Cad. plated), operators seat and arm rest

4шт.

A13096

CUSHION - seat, operators seat and arm rest

1шт.
