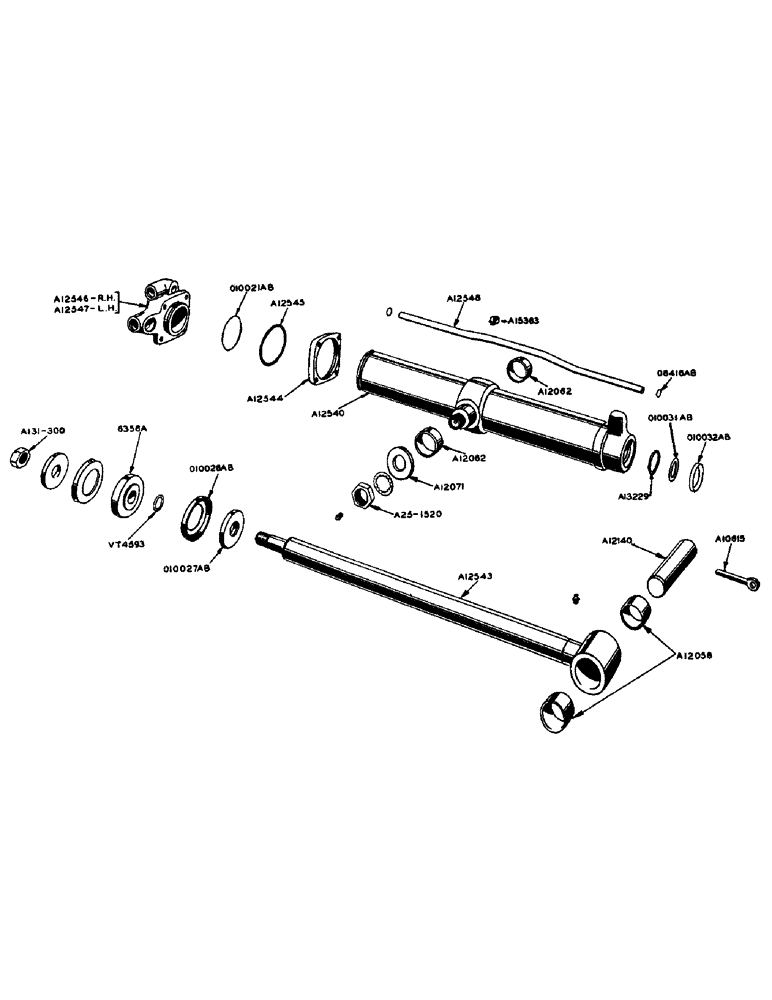

Запчасти Case W9 (150) - HYDRAULIC TILT CYLINDERS R.H. AND L.H. (08) - HYDRAULICS

A131-300

NUT - Marsden 1" N.F.

2шт.

A25-1520

NUT - fin. hex. jam N.F. 1-1/4"

4шт.

A10615

LOCK ASSY

LOCK - pivot pin, for A12140 pin

2шт.

1/2" x 1" fin. hex. bolt N.C. w/lockwasher

2шт.

A12058

BUSHING,44.88mm ID x 53.92mm OD x 38.1mm L

- piston rod end

4шт.

A12062

BUSHING

- pivot pin

4шт.

A12071

WASHER

- tilt cylinder pivot - 2 for L.H. and 1 for R.H.

3шт.

A12140

PIN

PIVOT PIN - tilt cylinder to bucket upper pivot

2шт.

3/16" x 2-1/2" cotter pin

1шт.

A12540

CYLINDER & HEAD - tilt

2шт.

1/8" str. Lincoln fitting

2шт.

1-1/4" Shakeproof int. - ext. lockwasher #1240-01

2шт.

A12543

ROD

- piston w/2-A12058 bushing

2шт.

1/8" str. Lincoln fitting #5000

2шт.

A12544

CLAMP

- cylinder snap ring

2шт.

A12545

RING, SNAP

SNAP RING - cylinder

2шт.

A12546

HEAD - tilt cylinder, R.H.

1шт.

1/2" x 1-3/4" fin. hex. bolt N.F. w/lockwasher

4шт.

1/2" x 3" bolt N.F. w/lockwasher

1шт.

A12547

HEAD - tilt cylinder, L.H.

1шт.

1/2" x 1-3/4" fin. hex. bolt N.F. w/lockwasher

4шт.

1/2" x 3" bolt N.F. w/lockwasher

1шт.

A12548

HOSE

TUBE - cylinder port

2шт.

A12550

CYLINDER - bucket tilt assembly, R.H.

1шт.

A12551

CYLINDER - bucket tilt assembly, L.H.

1шт.

A13229

X

"O" RING - piston rod

2шт.

A15363

CLAMP - port tube

2шт.

5/16" x 1/2" fin. hex. bolt N.C. w/lockwasher

4шт.

6356A

PISTON - cylinder

2шт.

O8416AB

X

"O" RING - port tube ends

4шт.

O10021AB

X

"O" RING - cylinder

2шт.

O10026AB

CUP

- piston packing

4шт.

O10027AB

X

PLATE - piston cylinder

4шт.

O10031AB

X

WASHER - back-up, piston rod "O" ring

2шт.

O10032AB

X

OIL SEAL - piston rod

2шт.

VT4593

X

"O" RING - piston

1шт.
