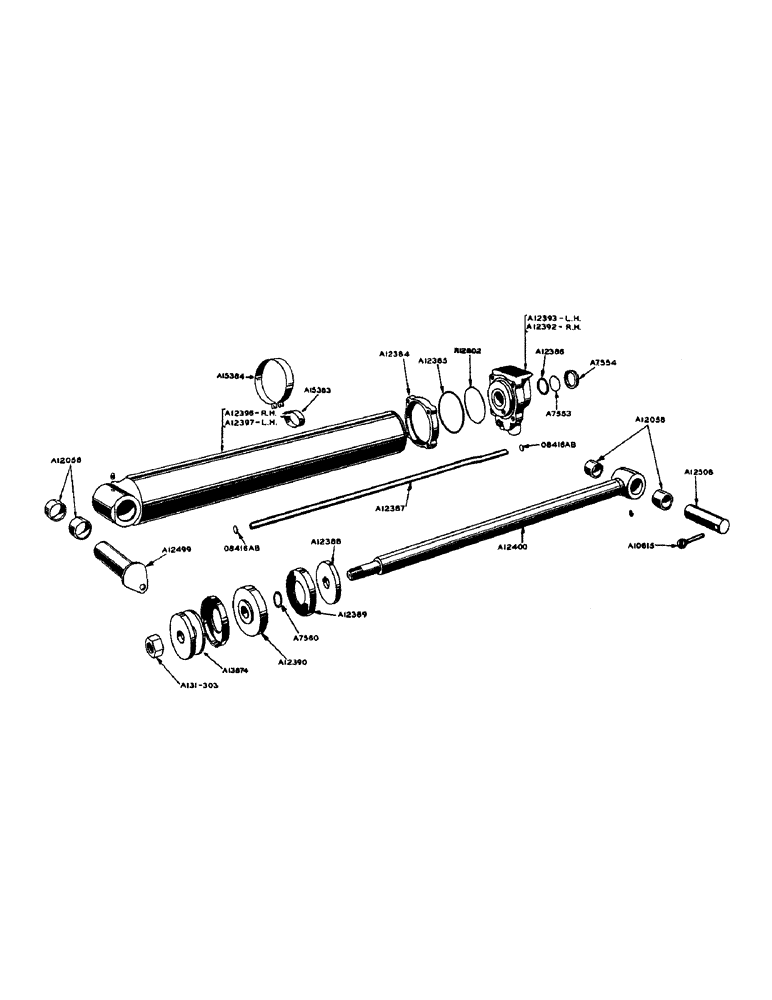

Запчасти Case W9 (148) - HYDRAULIC LIFT CYLINDER R.H. AND L.H. (08) - HYDRAULICS

A131-303

LOCKNUT - Marsden, 1-1/4" N.F., used on A12400

2шт.

A7553

X

WASHER - piston rod "O" ring back-up

2шт.

A7554

X

OIL SEAL - piston rod

2шт.

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

"O" RING - lift cylinder piston

2шт.

A10615

LOCK ASSY

LOCK - pivot pin, for A12508 pin

2шт.

1/2" x 1" fin. hex. bolt N.C. w/lockwasher

2шт.

A12058

BUSHING,44.88mm ID x 53.92mm OD x 38.1mm L

- lift cylinder head and piston rod end

8шт.

A12384

CLAMP - snap ring

2шт.

A12385

RING, SNAP

SNAP RING - lift cylinder

2шт.

A12386

X

RING - piston rod

2шт.

A12387

TUBE - lift cylinder port

2шт.

A12388

PLATE ASSY.

PLATE - lift cylinder follower

4шт.

A12389

CUP

- piston packing

4шт.

A12390

PISTON - lift cylinder

2шт.

A12392

X

HEAD - lift cylinder, R.H.

1шт.

5/8" x 2-1/2" fin. hex. N.F. bolt w/lockwasher

4шт.

A12393

X

HEAD - lift cylinder, L.H.

1шт.

5/8" x 2-1/2" fin. hex. N.F. bolt w/lockwasher

4шт.

A12396

X

CYLINDER & CAP - hydraulic lift R.H. w/2-A12058 bushing

1шт.

1/8" str. Lincoln fitting

1шт.

A12397

X

CYLINDER & CAP - hydraulic lift, L.H. w/2-A12058 bushing

1шт.

1/8" str. Lincoln fitting

1шт.

A12400

PISTON ROD & END - lift cylinder w/2-A12058 bushing

2шт.

1/8" str. Lincoln fitting

2шт.

A12402

CYLINDER - hydraulic lift, assembly, R.H. w/4-A12058 bushing

1шт.

A12403

CYLINDER - hydraulic lift, assembly, L.H. w/4-A12058 bushing

1шт.

A12499

PIVOT PIN - lift cylinder, rear

2шт.

1/2" x 1" fin. hex. bolt N.F. w/lockwasher

2шт.

A12508

PIVOT PIN - lift cylinder, front

2шт.

A13874

SPACER - piston

2шт.

A15383

CLAMP - port tube

2шт.

5/16" x 1-3/4" hex. bolt w/nut and lockwasher

2шт.

A15384

STRAP - port tube clamp

2шт.

R12802

O-RING,0.139" Thk x 4.734" ID, -248, Cl 6, 90 Duro

"O" RING - gasket, lift cylinder head

2шт.

O8416AB

X

"O" RING - gasket, lift cylinder port tube

4шт.
