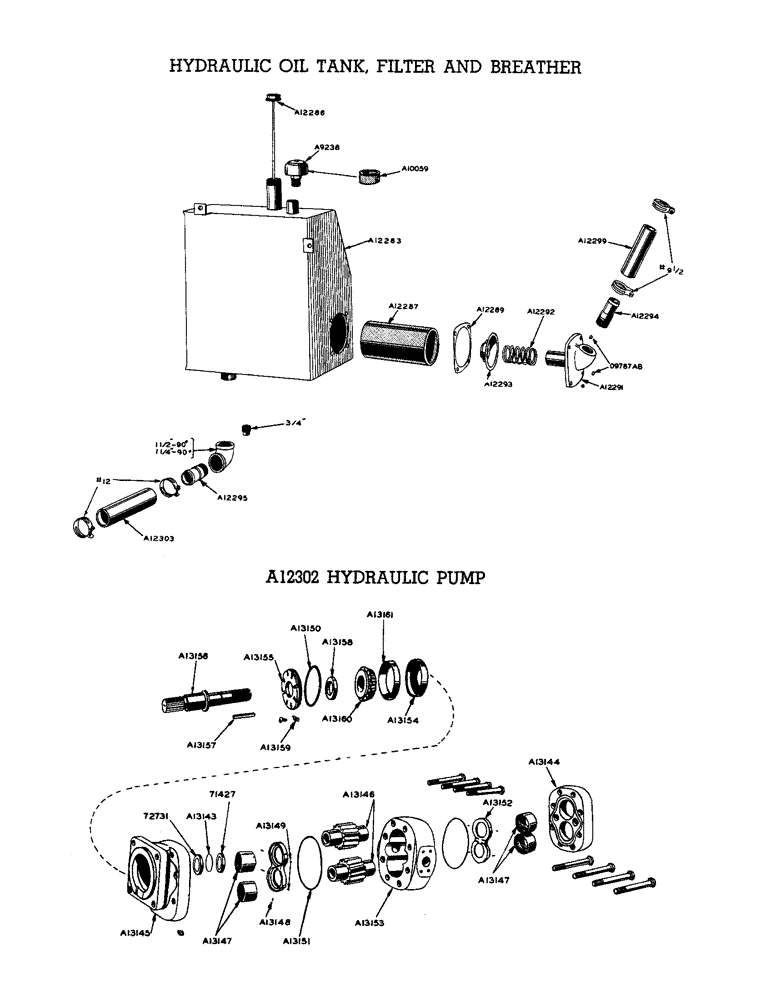

Запчасти Case W9 (144) - HYDRAULIC OIL TANK, FILTER AND BREATHER, A12302 HYDRAULIC (08) - HYDRAULICS

A9238

BREATHER

FILTER - breather, hydraulic oil tank

1шт.

A10059

FILTER, ELEMENT

ELEMENT - for A9238 breather

1шт.

A12283

TANK - hydraulic oil

1шт.

3/8" x 1" Nylock self-locking bolt N.F. w/nut and lockwasher

4шт.

3/4" sq. hd. pipe plug

1шт.

1-1/4" 90 degree std. pipe elbow (1-1/4" tank outlet)

1шт.

1-1/2" to 1-1/4" 90 degree reducing pipe elbow (For 1-1/2" tank outlet)

1шт.

A12286

CAP & DIP STICK - hydraulic oil tank filler

1шт.

A12287

FILTER, ELEMENT

ELEMENT - hydraulic oil filter

1шт.

A12289

GASKET

- hydraulic oil filter cover

1шт.

A12291

COVER - hydraulic oil filter w/tube

1шт.

3/8" x 1-1/4" fin. hex. bolt N.C. w/lockwasher

4шт.

1/8" x 2" cotter pin

1шт.

A12292

SPRING - hydraulic oil filter

1шт.

A12293

RETAINER - hydraulic oil filter

1шт.

A12294

NIPPLE, LUBE

NIPPLE - hydraulic oil filter inlet

1шт.

A12295

NIPPLE - hydraulic oil tank outlet

1шт.

A12299

HYDRAULIC HOSE,1.25" ID x 5.50", SAE20R1

1.25" ID x 5.50", SAE 20R1 - Pump tube to tank

1шт.

1-3/4" hose clamp #9-1/2"

2шт.

A12303

INTAKE AIR HOSE,1.50" ID

x 7.50", SAE 20R1 - Oil pipe 1.50" ID

1шт.

2-1/8" hose clamp #12

2шт.

3/8" x 1-1/4" hex. bolt N.C. w/lockwashers

4шт.

5/16" plain wrought washer

4шт.

O9787AB

X

"O" RING - filter cover bolts

4шт.

238-5217

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - drive shaft seal, A12302 hydraulic pump

1шт.

NLS

NO LONGER SERVICED

OIL SEAL - drive shaft, A12302 hydraulic pump

1шт.

A13143

RING - back-up, drive shaft, A12302 hydraulic pump

1шт.

A13144

COVER - port end, A12302 hydraulic pump

1шт.

5/8" x 6" N.C. cap screw, alloy steel, A12302 hydraulic pump

8шт.

A13145

COVER - flange end, A12302 hydraulic pump

1шт.

A13146

Set of gears, A12302 hydraulic pump

1шт.

A13147

X

BEARING - needle, pump gear, A12302 hydraulic pump

4шт.

A13148

SEAL - pocket, center for thrust plate, A12302 hydraulic pump

2шт.

A13149

SEAL - pocket, side for thrust plate, A12302 hydraulic pump

8шт.

A13150

O-RING

"O" RING - bearing retainer, A12302 hydraulic pump

1шт.

A13151

X

"O" RING - housing seal, A12302 hydraulic pump

2шт.

A13152

X

PLATE - thrust, A12302 hydraulic pump

2шт.

A13153

SPARE PART

HOUSING - gear, A12302 hydraulic pump

1шт.

A13154

SLEEVE

SPACER - Timken bearing, A12302 hydraulic pump

1шт.

A13155

RETAINER - Timken bearing, A12302 hydraulic pump

1шт.

A13156

SHAFT - drive, A12302 hydraulic pump

1шт.

A13157

KEY - drive shaft to gear, A12302 hydraulic pump

1шт.

A13158

X

OIL SEAL - bearing retainer, A12302 hydraulic pump

1шт.

A13159

LOCK - bearing retainer, A12302 hydraulic pump

1шт.

1/4" x 1/2" N.C. hex. hd. cap screw, A12302 hydraulic pump

1шт.

A13160

ROLLER BEARING,1.4375" ID x 0.933"

CONE - drive shaft bearing (Timken #44143), A12302 hydraulic pump

1шт.

A13161

BEARING CUP,88.5mm OD x 17.46mm W

CUP - drive shaft bearing (Timken #44348), A12302 hydraulic pump

1шт.
