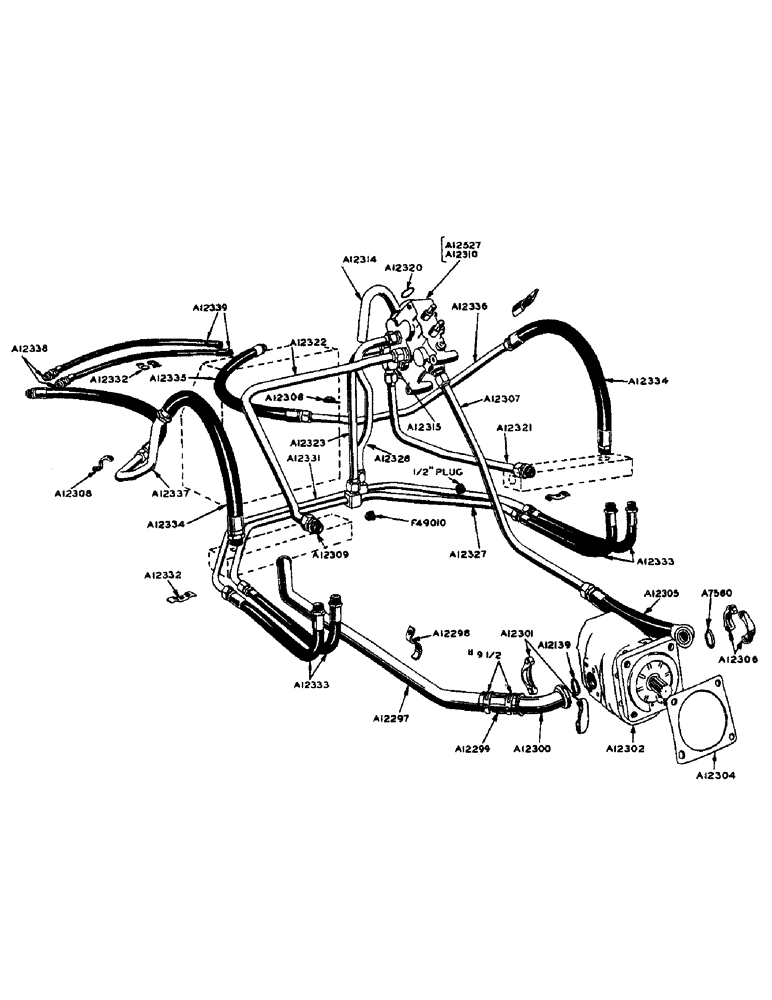

Запчасти Case W9 (142) - HYDRAULIC BUCKET CONTROL SYSTEM (08) - HYDRAULICS

A221-25

PLUG - 3/4" socket hd. pipe for R.H. junction block

1шт.

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

"O" RING - #6227-24 for A12305 hose to pump

2шт.

A12139

O-RING

GASKET - "O" ring used on A12300

1шт.

A12297

TUBE - hyd. pump suction

1шт.

A12298

CLAMP

- suction tube

1шт.

3/8" x 1-1/4" fin. hex. bolt N.F. w/nut and lockwasher

1шт.

A12299

HYDRAULIC HOSE,1.25" ID x 5.50", SAE20R1

1.25" ID x 5.50", SAE 20R1 - Hyd. pump to tube

1шт.

1-3/4" hose clamp #9-1/2

2шт.

A12300

ELBOW - hyd. pump inlet

1шт.

A12301

CLAMP,Half

CLAMP - 4 bolt split flange (1-1/4" size) Inlet

1шт.

A12302

PUMP, HYDRAULIC

PUMP - hyd. #PH178BA or 20-7

1шт.

3/8" x 1-1/8" fin. hex. bolt N.F. w/lockwasher

4шт.

7/16" x 1-3/8" fin. hex. bolt N.C. w/lockwasher

4шт.

1/2" x 2" fin. hex. bolt N.C. w/lockwasher

4шт.

A12304

GASKET,0.4mm Thk

- hyd. pump

1шт.

A12305

HOSE - hyd. pump, outlet to pressure tube

1шт.

A12306

FLANGE

CLAMP - 4 bolt split flange, 1" size, outlet

1шт.

A12307

TUBE - hyd. pump to control valve pressure inlet

1шт.

A12308

CLAMP

CLIP - tube 1"

5шт.

3/8" x 3/4" fin. hex. bolt N.F. w/lockwasher

2шт.

3/8" x 1" fin. hex. bolt N.F. w/nut and lockwasher

2шт.

3/8" x 1-1/4" fin. hex. bolt N.C. w/nut and lockwasher

1шт.

A12309

X

CONNECTOR - 1" adapter, hyd. lines to control valve and junction block

6шт.

A12310

VALVE - hyd. control #VDP4DD1B (See A12527 and A13915)

1шт.

1/2" x 4-1/2" fin. hex. bolt N.F. w/nut and lockwasher

4шт.

1/2" SAE plain washer

4шт.

1/2" P.T. socket hd. pipe plug

1шт.

A12313

LOCKNUT - for A12314

1шт.

A12314

TUBE - hyd. control valve return

1шт.

A12315

X

ADAPTER - 90 degree "O" ring boss

1шт.

A12316

Locknut used on A12315

1шт.

A12318

X

GASKET - "O" ring (3/4" tubing) Used on A12333, A12338, and A12339

8шт.

A12319

X

GASKET - "O" ring (1" tube) Used on A12309, A12315, A12334 and A12335

10шт.

A12320

X

GASKET - "O" ring (1-1/4" tube) For A12314 tube

1шт.

A12321

TUBE - hyd. control valve to junction block, R.H. tilt cyl.

1шт.

A12322

TUBE - hyd. control valve to junction block for L.H. tilt cyl.

1шт.

A12323

TUBE - control valve to inner manifold tube for lift cyl.

1шт.

A12327

TUBE

- manifold, inner hydraulic lift cylinder

1шт.

A12328

TUBE - control valve to outer manifold tube for lift cylinder

1шт.

A12331

TUBE

- manifold, outer hyd. lift cylinder

1шт.

A12332

CLAMP

- lift cylinder tube

4шт.

3/8" x 1" fin. hex. bolt N.F. w/nut and lockwasher

1шт.

3/8" x 1-1/2" fin. hex. bolt N.F. w/nut and lockwasher

2шт.

A12333

HOSE

- hydraulic, lift cylinder

4шт.

A12334

HOSE - hydraulic tilt cylinder tube to junction block

2шт.

A12335

HOSE ASSY.

HOSE - hydraulic tilt cylinder, Serial Range: tube-cylinder

2шт.

A12336

TUBE

- R.H. intermediate, bucket tilt cylinder

1шт.

A12337

TUBE - L.H. intermediate, bucket tilt cylinder

1шт.

A12338

X

FITTING - adapter for A12339 hose

2шт.

A12339

HOSE ASSY.

HOSE - hyd., tilt cyl., from L.H. to R.H. cylinder

2шт.

A12527

VALVE - hyd. control (Float "O" type) (See A12310 and A13915)

1шт.

1/2" x 4-1/2" fin. hex. bolt N.F. w/nut and lockwasher

4шт.

1/2" SAE plain washer

4шт.

1/2" P.T. socket hd. pipe plug

1шт.

A13241

CLAMP - tilt cyl. hose (Not illustrated)

2шт.

1/4" x 3/4" hex. bolt N.F. w/nut and lockwasher (Zinc plated)

1шт.

A13242

O-RING

CHAIN - tilt cyl. hose tie (Not illustrated)

1шт.

A13915

LOCK VALVE

VALVE - hyd. control float detent in float and raise (See A12310 and A12527)

1шт.

F49010

PLUG - sq. hd. 3/4" for L.H. junction block

1шт.

1/8" pipe plug slotted hd

1шт.
