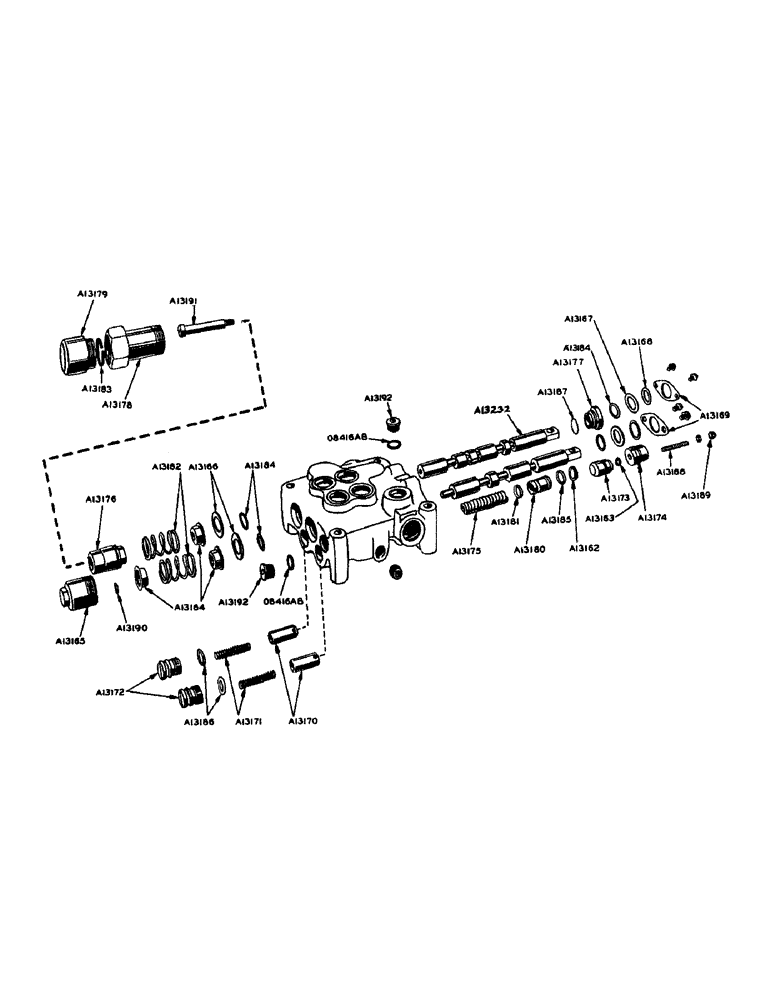

Запчасти Case W9 (138) - A12527 HYDRAULIC VALVE, SPRING CENTERED DETENT IN FLOAT (08) - HYDRAULICS

A13162

RING - back-up, relief valve seat, "O" ring

1шт.

A13163

INSERT - relief valve seat

1шт.

A13164

RETAINER,13.49mm ID x 37.31mm OD

SPACER - spool centering

3шт.

A13165

CAP

- spool

1шт.

A13166

WASHER

RETAINER - spool "O" ring

1шт.

A13167

RETAINER

- spool "O" ring, stem end

2шт.

A13168

WIPER

- spool, stem end

2шт.

A13169

PLATE - spool seal, stem end

2шт.

3/8" x 5/8" rhd. mach. screw w/lockwasher

2шт.

3/8" x 1" rhd. mach. screw w/lockwasher

2шт.

A13170

POPPET - check valve

2шт.

A13171

VALVE SPRING

SPRING - poppet, check valve

2шт.

A13172

CYLINDER END CAP

CAP - relief valve

2шт.

A13173

SEAT - relief valve

1шт.

A13174

X

CAP - adjusting, relief valve

1шт.

A13175

SPRING - relief valve

1шт.

A13176

BARREL - detent, float valve

1шт.

A13177

HOUSING - seal, float valve spool

1шт.

A13178

CAP - front valve

1шт.

A13179

CAP - float valve spool

1шт.

A13180

PLUNGER - relief valve

1шт.

A13181

RING - relief valve plunger

1шт.

A13182

VALVE SPRING

SPRING - spool

2шт.

A13183

SNAP RING - float valve cap

1шт.

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"O" RING - spool

4шт.

A13185

X

"O" RING - relief valve seat

1шт.

A13186

O-RING

"O" RING - relief valve cap

2шт.

A13187

"O" RING - float valve spool, stem end

1шт.

A13188

SCREW - adjusting, relief valve

1шт.

5/16" N.F. thin jam nut

1шт.

A13189

ACORN NUT - relief valve adjusting screw

1шт.

A13190

X

SNAP RING - spool centering spring spacer

1шт.

A13191

SCREW - float, Serial Range: valve-spool

1шт.

A13192

X

PLUG

2шт.

A13260

SPOOL - float "O" valve, has "E" marked on end

1шт.

O8416AB

X

"O" RING - for A13192 plug

2шт.
