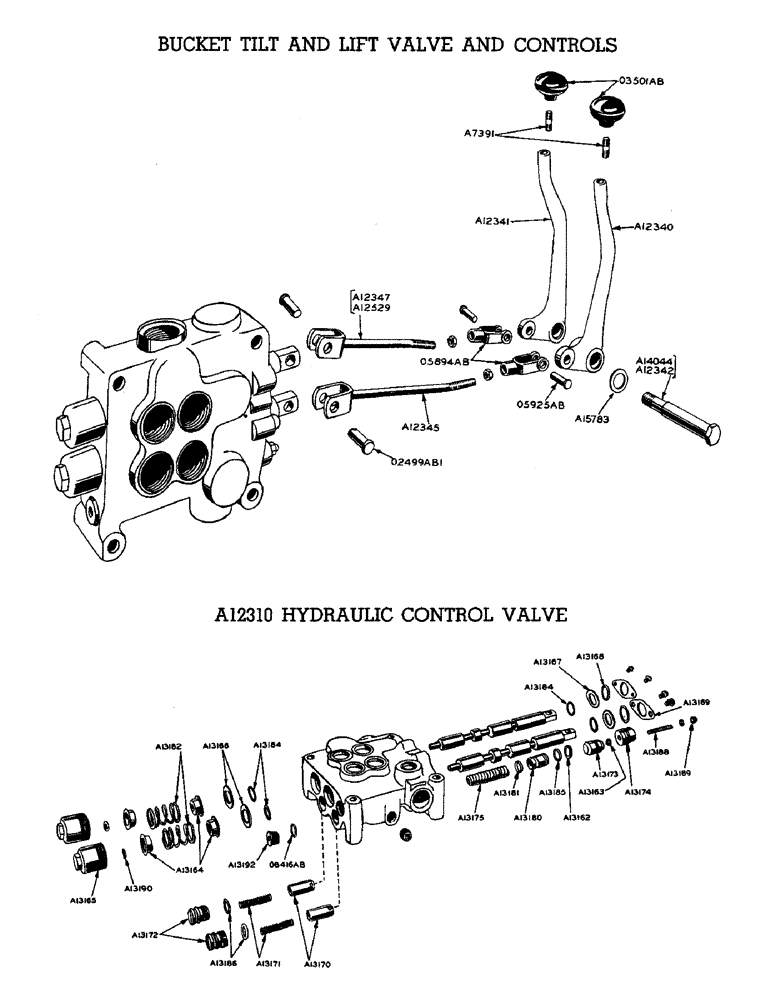

Запчасти Case W9 (136) - BUCKET TILT AND LIFT VALVE AND CONTROLS, A12310 HYDRAULIC (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
A7391
STUD
- ball, bucket control hand lever
2шт.
A12340
LEVER - hand, bucket tilt control (Inner)
1шт.
1/8" 90 degree Lincoln fitting
1шт.
A12341
LEVER - hand, bucket lift control (Outer)
1шт.
1/8" 90 degree Lincoln fitting
1шт.
A12342
STUD - pivot, bucket control lever (Can use A14044 and A15783)
1шт.
5/8" fin. hex. jam nut N.F. w/lockwasher
1шт.
A12345
ROD - control, bucket tilt
1шт.
A12347
ROD - control, bucket lift use w/standard control valve
1шт.
A12529
ROD - control, bucket lift use w/hydraulic float "O" valve
1шт.
A14044
STUD - pivot, bucket control lever
1шт.
5/8" fin. hex. jam nut N.F. and lockwasher
1шт.
A15783
SPACER
WASHER - spacer, for A14044 stud
1шт.
O2499AB1
X
PIN - yoke end, bucket control
2шт.
1/8" x 1" cotter pin
2шт.
O3501AB
X
BALL - hand lever
2шт.
O5894AB
YOKE
END - yoke, bucket control rod
2шт.
3/8" fin. hex. nut N.F.
2шт.
O5925AB
X
PIN - yoke end, bucket control
2шт.
3/32" x 3/4" cotter pin
2шт.
A13162
RING - back-up, relief valve seat "O" ring, A12310 hydraulic control valve
1шт.
A13163
INSERT - relief valve seat, A12310 hydraulic control valve
1шт.
A13164
RETAINER,13.49mm ID x 37.31mm OD
SPACER - spool centering, A12310 hydraulic control valve
4шт.
A13165
CAP
- spool, A12310 hydraulic control valve
2шт.
A13166
WASHER
RETAINER - spool "O" ring, A12310 hydraulic control valve
2шт.
A13167
RETAINER
- spool "O" ring stem end, A12310 hydraulic control valve
2шт.
A13168
WIPER
- spool, stem end, A12310 hydraulic control valve
2шт.
A13169
PLATE - spool, seal, stem end, A12310 hydraulic control valve
2шт.
3/8" x 5/8" rhd. mach. screw w/lockwasher, A12310 hydraulic control valve
4шт.
A13170
POPPET - check valve, A12310 hydraulic control valve
2шт.
A13171
VALVE SPRING
SPRING - poppet, check valve, A12310 hydraulic control valve
2шт.
A13172
CYLINDER END CAP
CAP - relief valve, A12310 hydraulic control valve
2шт.
A13173
SEAT - relief valve, A12310 hydraulic control valve
1шт.
A13174
X
CAP - adjusting, relief valve, A12310 hydraulic control valve
1шт.
A13175
SPRING - relief valve, A12310 hydraulic control valve
1шт.
A13180
PLUNGER - relief valve, A12310 hydraulic control valve
1шт.
A13181
RING - relief valve plunger, A12310 hydraulic control valve
1шт.
A13182
VALVE SPRING
SPRING - spool, A12310 hydraulic control valve
2шт.
A13184
O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro
"O" RING - spool, A12310 hydraulic control valve
4шт.
A13185
X
"O" RING - relief valve seat, A12310 hydraulic control valve
1шт.
A13186
O-RING
"O" RING - relief valve cap, A12310 hydraulic control valve
2шт.
A13188
SCREW - adjusting, relief valve, A12310 hydraulic control valve
1шт.
5/16" N.F. thin hex. jam nut, A12310 hydraulic control valve
1шт.
A13189
ACORN NUT - relief valve adjusting screw, A12310 hydraulic control valve
1шт.
A13190
X
SNAP RING - spool centering spring spacer, A12310 hydraulic control valve
2шт.
A13192
X
PLUG, A12310 hydraulic control valve
1шт.
O8416AB
X
"O" RING - for A13192 plug, A12310 hydraulic control valve
1шт.
Выбрано товаров: 47
