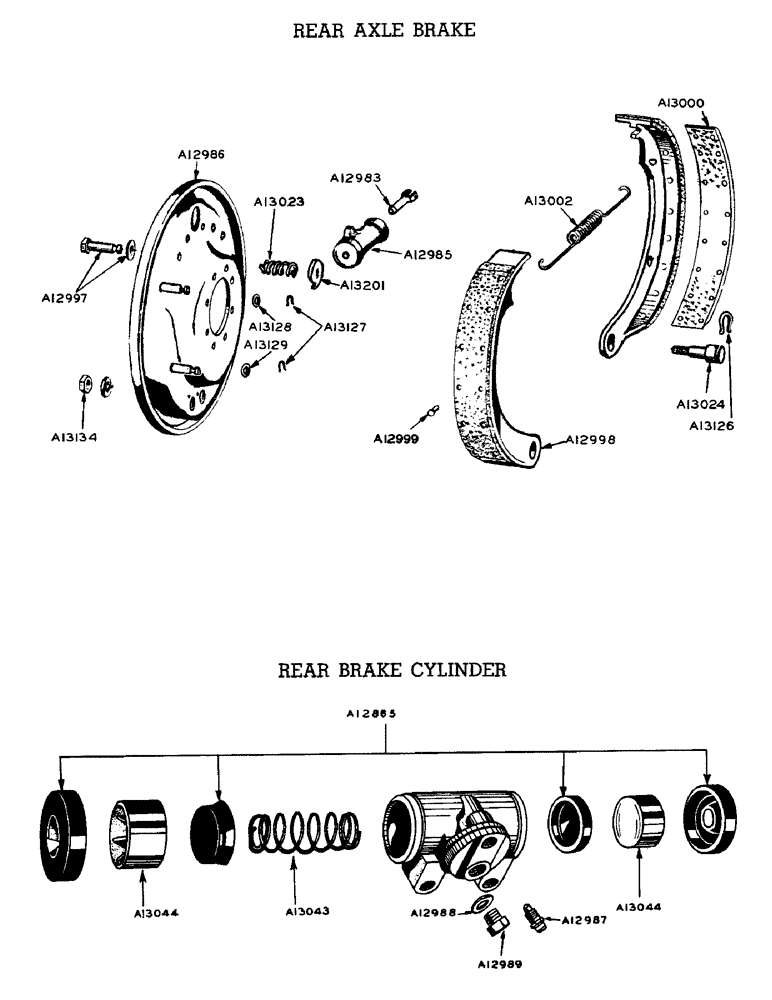

Запчасти Case W9 (114) - REAR AXLE BRAKE, REAR BRAKE CYLINDER (07) - BRAKES

A12983

ROD

PUSH ROD - wheel cylinder to brake shoe

4шт.

A12985

CYLINDER

- wheel, assembly (Wagner no. FC746)

2шт.

3/8" x 7/8" fin. hex. bolt N.C. w/lockwasher

4шт.

A12986

PLATE

- brake backing, assembly

2шт.

A12997

CAPTIVE WASHER SCREW

BOLT - cam, brake shoe adjusting w/washer

4шт.

A12998

X

SHOE - brake assembly w/lining

4шт.

A12999

SPARE PART

RIVET - brake shoe lining

56шт.

A13000

KIT

LINING - brake shoe - set of four (w/rivets)

1шт.

A13001

DRUM

- brake (Not shown)

2шт.

5/8" x 1-1/2" N.C. hex. bolt alloy steel w/lockwasher

20шт.

A13002

SPRING

- brake shoe return

2шт.

A13023

SPRING

- brake shoe cam adjusting

4шт.

A13024

PIN,29.39mm OD x 68.25mm L

- brake shoe anchor

4шт.

3/4" #1132 external Shakeproof lockwasher

4шт.

A13126

RING, SNAP,22.23mm ID x 33.34mm OD x 2.278mm Thk

"C" WASHER - brake shoe anchor pin

4шт.

A13127

WASHER

"C" WASHER - brake shoe guide pin

8шт.

A13128

WASHER

- brake shoe guide pin

16шт.

A13129

WASHER

- brake shoe guide pin

16шт.

A13134

NUT

- brake shoe anchor pin

4шт.

A13201

SHOE

CAM - brake shoe adjusting

4шт.

A12865

KIT

- includes 2 piston cups and 2 boots (Wagner #FC3604), rear brake cylinder

1шт.

A12985

CYLINDER

- rear wheel, assembly, rear brake cylinder

2шт.

A12987

SCREW - bleeder, brake cylinder (Wagner #FC11410), rear brake cylinder

1шт.

A12988

GASKET

- wheel cylinder inlet connection (Wagner #FC17), rear brake cylinder

1шт.

A12989

ADAPTER

FITTING - wheel cylinder inlet connection (Wagner #FC3963), rear brake cylinder

1шт.

A13043

SPRING

- piston (Wagner #FC724), rear brake cylinder

1шт.

A13044

PISTON ASSY.

PISTON (Wagner #FC723), rear brake cylinder

2шт.
