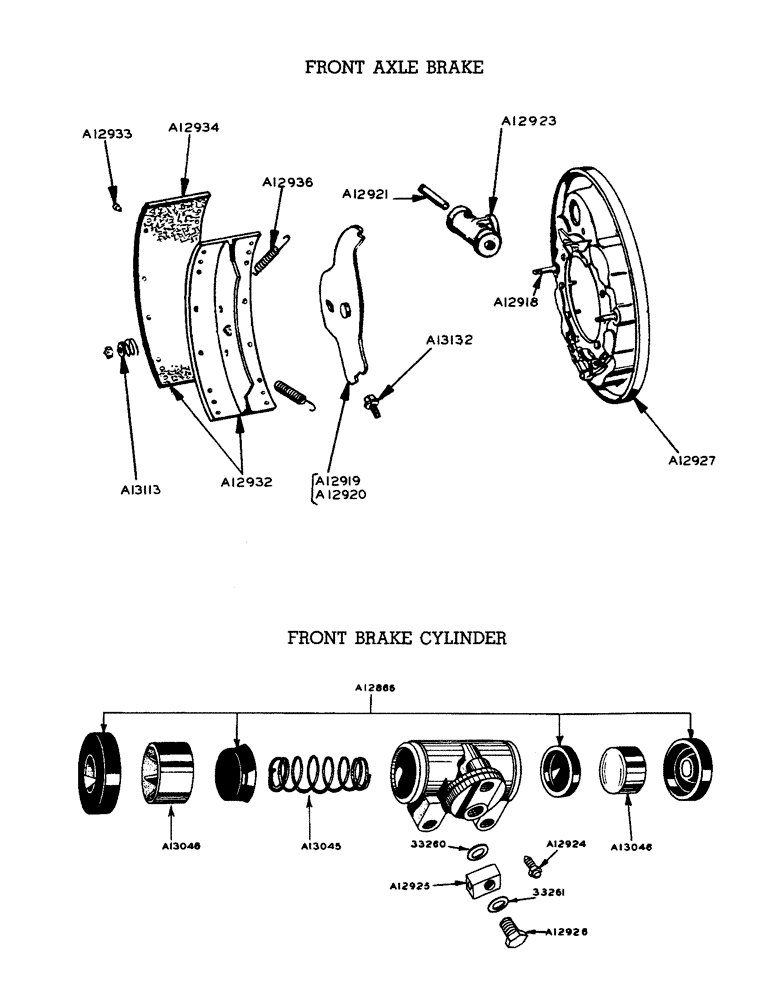

Запчасти Case W9 (112) - FRONT AXLE BRAKE, FRONT BRAKE CYLINDER (07) - BRAKES

A12918

AXLE PIN

PIN - guide, brake shoe

4шт.

3/8" N.F. slotted hex. nut

4шт.

3/32" x 7/8" cotter pin

4шт.

A12919

LEVER - brake assembly, L.H. front and R.H. rear shoe

2шт.

A12920

LEVER - brake assembly, R.H. front and L.H. rear shoe

2шт.

A12921

PUSH ROD - wheel cyl. to brake shoe

4шт.

A12923

CYLINDER BLOCK

CYLINDER - wheel, assembly (Wagner no. FC949)

2шт.

3/8" x 7/8" N.C. fin. hex. bolt w/lockwasher

4шт.

A12927

PLATE - brake backing, assembly

2шт.

A12932

SHOE - brake, assembly w/lining

4шт.

A12933

RIVET

- brake lining

48шт.

A12934

LINING

- brake (Set of 4) With inserts

1шт.

A12935

DRUM - brake (Not shown)

2шт.

5/8" x 1-1/2" fin. hex. bolt N.C. w/lockwasher

20шт.

A12936

SPRING - brake shoe return

8шт.

A13113

SPRING

- guide pin

4шт.

A13132

BOLT

- brake shoe adjusting

4шт.

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - wheel cylinder inlet connection (Wagner no. FC602), front brake cylinder

1шт.

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- wheel cylinder inlet connection (Wagner no. FC603), front brake cylinder

1шт.

A12866

CYLINDER

KIT - includes 2 piston cups and 2 boots (Wagner no. FC3601), front brake cylinder

1шт.

A12923

CYLINDER BLOCK

CYLINDER - front wheel, assembly, front brake cylinder

2шт.

A12924

SCREW,7/16" - 20

- bleeder, wheel cyl. (Wagner no. FC11596), front brake cylinder

1шт.

A12925

FITTING

- wheel cylinder inlet connection (Wagner no. FC3354), front brake cylinder

1шт.

A12926

BOLT

- wheel cylinder inlet connection (Wagner no. FC1030), front brake cylinder

1шт.

A13045

SPRING - piston (Wagner no. FC860), front brake cylinder

1шт.

A13046

PISTON (Wagner no. FC665), front brake cylinder

2шт.
