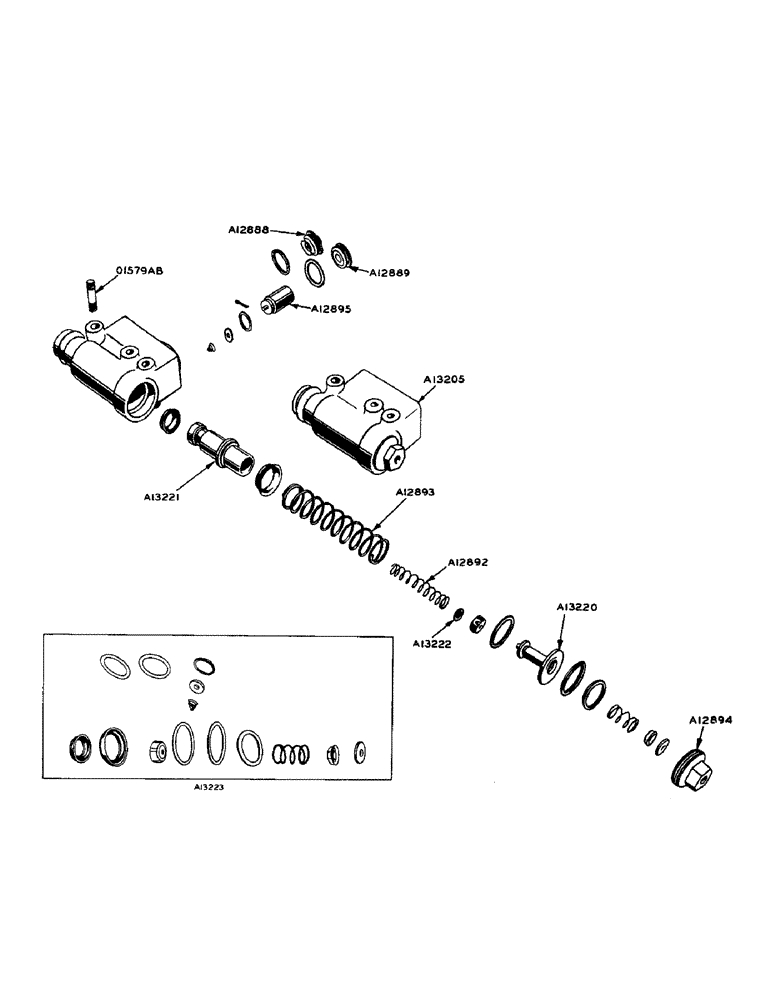

Запчасти Case W9 (110) - MASTER BRAKE CYLINDER (07) - BRAKES

A12888

FILLER CAP

PLUG - filler w/baffle

1шт.

A12889

PLUG

- filler

1шт.

A12892

VALVE SPRING

SPRING - primary return

1шт.

A12893

VALVE SPRING

SPRING - secondary return

1шт.

A12894

PLUG - end

1шт.

A12895

VALVE

- relief, assembly

1шт.

A13205

CYLINDER

- master brake

1шт.

3/8" x 3/4" N.C. fin. hex. bolt w/lockwasher

2шт.

7/16" x 3-1/2" fin. hex. bolt N.F. w/nut and lockwasher

1шт.

A13220

PISTON - primary

1шт.

A13221

PISTON - secondary

1шт.

A13222

RETAINER - cup

1шт.

A13223

KIT

- master brake cylinder repair (Includes filler plug gaskets, check valve, spring, seat, primary cup, secondary cups, end plug gasket, primary piston seal, cotter pin, relief valve spring, relief valve disc)

1шт.

O1579AB

STUD - master brake cylinder

1шт.

3/8" N.C. hex. nut and lockwasher

1шт.
