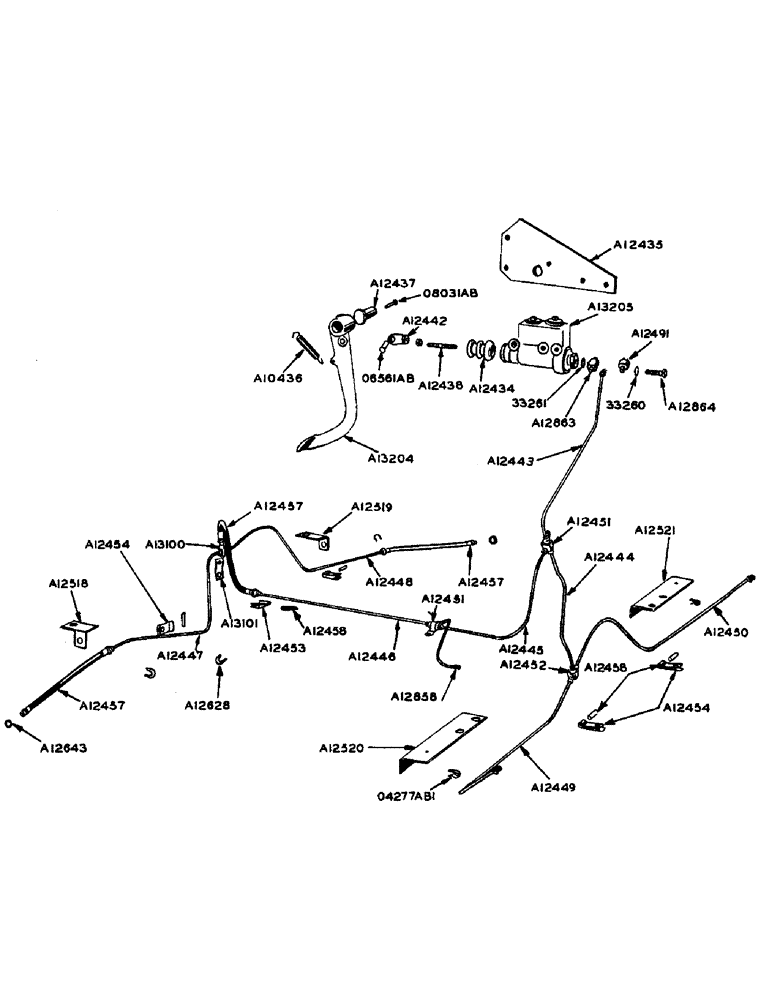

Запчасти Case W9 (108) - HYDRAULIC BRAKE SYSTEM (07) - BRAKES

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - small, for A12864 bolt

1шт.

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- large for A12864 bolt

1шт.

A10436

VALVE SPRING

SPRING - brake pedal return

1шт.

A12434

BOOT

- rubber, for master cylinder push rod

1шт.

A12435

PLATE - brake pedal and master cylinder mounting

2шт.

1/2" x 1-1/4" fin. hex. bolt N.F. w/nut and lockwasher

4шт.

A12437

PIN - brake pedal pivot

1шт.

3/16" x 1-1/4" cotter pin

1шт.

A12438

PUSH ROD - master cylinder

1шт.

7/16" fin. hex. thin jam nut N.F.

1шт.

A12442

YOKE - for A12438 push rod

1шт.

A12443

TUBE - master cylinder to cross brace w/2-41W Imperial inverted flare fittings

1шт.

A12444

TUBE - cross brace to front axle housing w/2-41W Imperial inverted flare fittings

1шт.

A12445

TUBE - cross brace to R.H. frame channel W/2-41W Imperial inverted flare fittings

1шт.

A12446

TUBE - R.H. frame channel to rear axle housing W/2-41W Imperial flare fittings

1шт.

A12447

TUBE

- rear axle housing flange to R.H. flex. hose w/2-41W Imperial flare fittings

1шт.

A12448

TUBE - rear axle housing flange to L.H. brake hose w/2-41W Imperial flare fittings

1шт.

A12449

TUBE - front axle housing to R.H. brake cylinder w/2-41W Imperial inverted flare fittings

1шт.

A12450

TUBE - front axle housing to L.H. brake cylinder w/2-41W Imperial flare fittings

1шт.

A12451

FITTING

TEE - used on cross brace and R.H. frame channel

2шт.

5/16" x 1-1/4" fin. hex. bolt N.F. w/nut and lockwasher

2шт.

A12452

FITTING

TEE - front axle housing flange

1шт.

A12453

CLIP - frame channel for brake tube

1шт.

A12454

CLIP

- on axle housing for brake tube

4шт.

A12457

X

HOSE - hydraulic brake, rear

3шт.

A12458

SLEEVE

LOOM - clamp, for A12453 and A12454

5шт.

A12491

SWITCH

ASSY - brake, stop light

1шт.

A12518

BRACKET - hyd. brake hose, R.H. rear

1шт.

A12519

BRACKET - hyd. brake hose, L.H. rear

1шт.

A12520

GUARD - front axle brake tube, R.H.

1шт.

A12521

GUARD - front axle brake tube, L.H.

1шт.

A12628

WASHER

"C" WASHER - brake, Serial Range: hose-bracket

3шт.

A12643

WASHER

- brake hose to wheel cyl. fitting (Wagner no. FC1243)

2шт.

A12858

TUBE - assembly, from R.H. frame channel to transmission w/2-41W Imperial inverted flare fittings

1шт.

48W 1/4" Imperial connector

1шт.

A12863

SUN VISOR

BLOCK - fitting, brake master cylinder

1шт.

A12864

BOLT

- for mounting, Serial Range: A12863-cylinder

1шт.

A13100

TEE

- brake line, rear axle

1шт.

A13101

STRAP - mounting, for A13100

1шт.

1/2" x 1-1/4" fin. hex. bolt N.C. w/jam nut and lockwasher

1шт.

A13204

PEDAL - brake

1шт.

1/8" str. Lincoln fitting

1шт.

A13205

CYLINDER

- brake master

1шт.

3/8" x 3/4" fin. hex. bolt N.C. w/lockwasher

2шт.

7/16" x 3-1/2" fin. hex. bolt N.F. w/nut and lockwasher

1шт.

O4277AB1

CLIP - brake tubing

2шт.

1/4" x 1/2" rhd. mach. screw N.F. w/nuts and lockwasher

2шт.

O6561AB

PIN - yoke, master brake cylinder push rod

1шт.

1/8" x 1" cotter pin

1шт.

O8031AB

LOCK PIN - brake pedal mounting

1шт.
