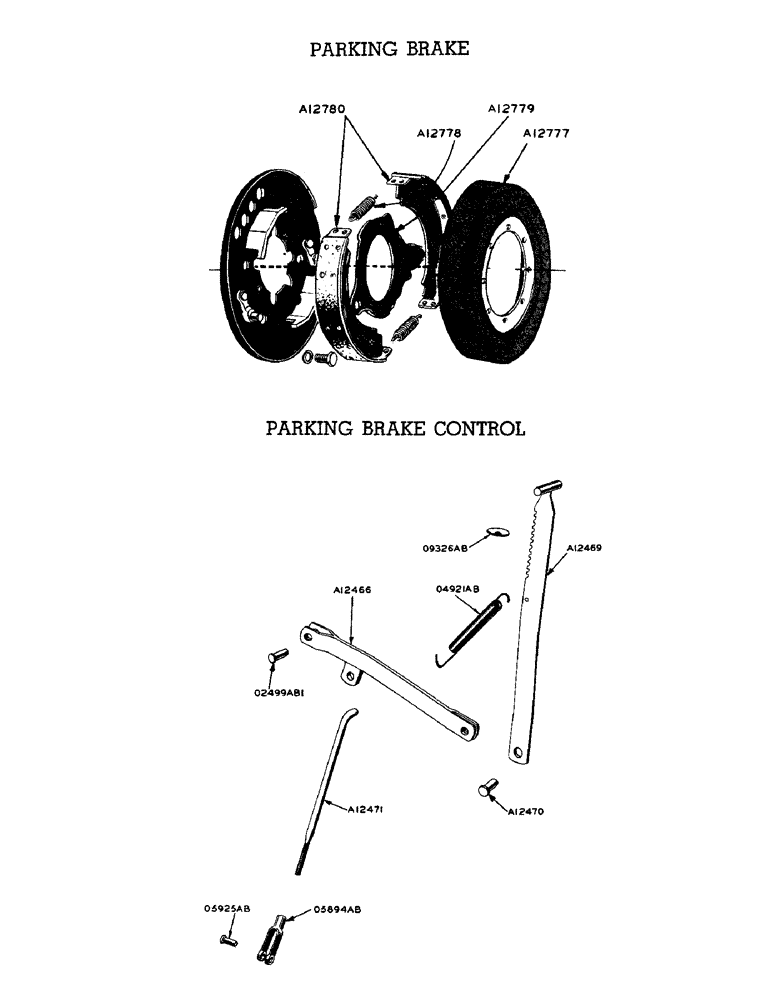

Запчасти Case W9 (094) - PARKING BRAKE, PARKING BRAKE CONTROL (07) - BRAKES

A12777

DRUM - brake

1шт.

3/8" x 3/4" hex. bolt N.F.

8шт.

A12778

SPRING

- brake shoe return

2шт.

A12779

LEVER

- brake cam operating

1шт.

A12780

BRAKE SHOE

SHOE - brake w/lining (Set of two)

1шт.

A12843

PACKAGE

LINING - brake kit (Set of two w/rivets)

1шт.

A12466

LEVER - hand brake, parking brake control

1шт.

A12469

HANDLE & RATCHED - hand brake, parking brake control

1шт.

A12470

PIN

PIVOT PIN - hand brake ratchet, parking brake control

1шт.

A12471

ROD - hand brake, parking brake control

1шт.

1/8" x 3/4" cotter pin, parking brake control

1шт.

1/2" SAE plain washer, parking brake control

1шт.

O2499AB1

X

PIN - hand brake fulcrum, parking brake control

1шт.

1/8" x 3/4" cotter pin, parking brake control

1шт.

O4921AB

X

SPRING - hand brake, parking brake control

1шт.

O5894AB

YOKE

- end, hand brake rod, parking brake control

1шт.

O5925AB

X

PIN - yoke end, for O5894AB, parking brake control

1шт.

3/32" x 5/8" cotter pin, parking brake control

1шт.

O9326AB

X

PAWL - hand brake, parking brake control

1шт.

3/8" fin. hex. jam nut N.F., parking brake control

1шт.

3/8" x 3/4" rd. hd. mach. screw N.F., parking brake control

1шт.
