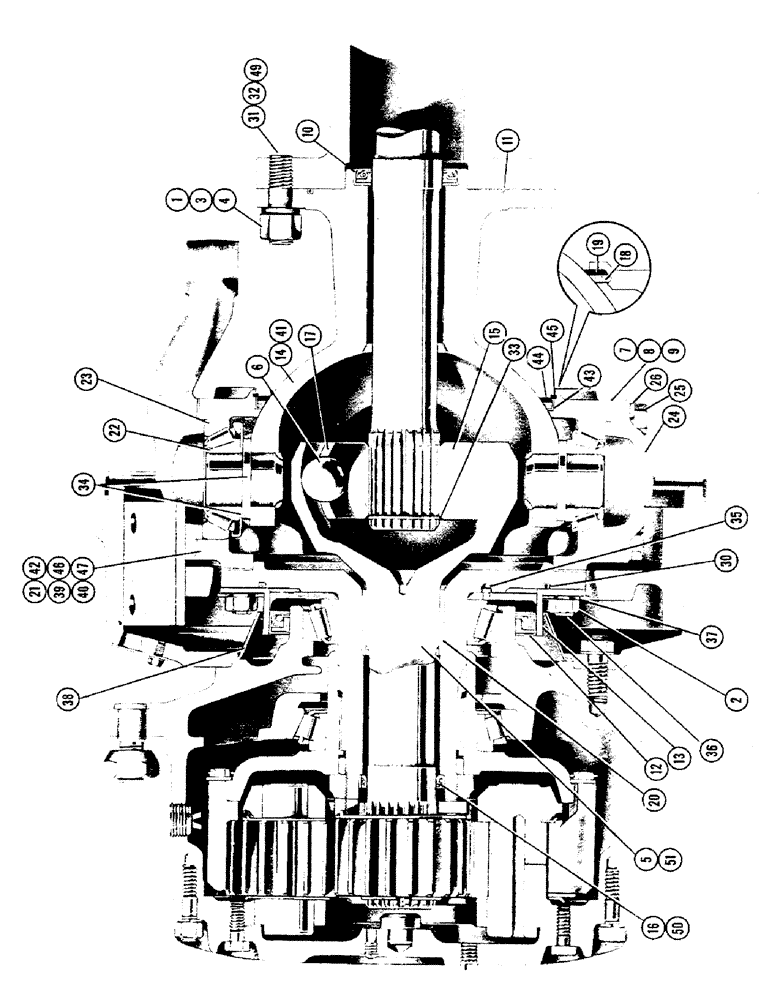

Запчасти Case W9 (100) - REAR AXLE STEERING KNUCKLE (06) - POWER TRAIN

1

131-59

LOCK NUT,3/4"-16

NUT - 3/4" N.F. heavy stop nut (A15747 stud)

16шт.

2

131-182

LOCK NUT,7/16"-20, GC

STOP NUT - elastic, steering knuckle stud

24шт.

3

131-184

LOCK NUT,5/8"-18, GB

STOP NUT - elastic, trunnion socket to axle housing (Axle model HX8)

8шт.

4

131-186

LOCK NUT,3/4"-16, GB

STOP NUT - elastic, trunnion socket to axle housing stud 3/4" (Axle model HX8)

8шт.

5

A12981

SHAFT

AND CAGE UNIVERSAL JOINT (Use A13274)

2шт.

6

A12982

BALL

- universal joint

12шт.

7

A12990

SHIM,.005" Thk

Steering bearing cap .005" Thk

1шт.

8

A12991

SHIM,.030" Thk

Steering bearing cap .030" Thk

1шт.

9

A12992

SHIM,.010" Thk

Steering bearing cap .010" Thk

1шт.

10

A12994

OIL SEAL

OIL SEAL - axle shaft

2шт.

11

A12995

O-RING,2 7" ID x 1/3" OD x 1/8"

SEAL - trunnion socket to housing

2шт.

12

A12996

X

OIL SEAL - hub bearing

2шт.

13

A13003

RETAINER

- hub oil seal w/pin

2шт.

14

A13010

SOCKET - trunnion (Axle model HX8) (See A15385)

2шт.

15

A13011

RACE

- universal joint inner

2шт.

16

A13012

X

OIL SEAL - spindle, rebin as A15820

2шт.

17

A13013

CAGE - universal joint ball

2шт.

18

A13014

FELT - trunnion socket (Axle model HX8) (See A15741)

2шт.

19

A13015

SPRING - trunnion socket felt pressure (Axle mode HX8) (See A15742)

2шт.

20

A13016

BUSHING

- steering knuckle & joint

2шт.

21

A13017

FLANGE - steering knuckle R.H. (Includes bushing, bolts, and nuts) (Axle model HX8) (See A15167 and A15745)

1шт.

22

A13018

ROLLER BEARING,1.125" ID x 0.955"

CONE - steering bearing (Timken 41125)

2шт.

23

A13019

CUP ASSY.

CUP - steering bearing (Timken 41286)

2шт.

24

A13020

CAP

- steering bearing, lower

2шт.

25

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" x 1-1/2" hex

8шт.

26

92-8

LOCK WASHER,1/2"

8шт.

27

A13021

CAP - steering bearing upper cap (R.H. only) Not illustrated

1шт.

28

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- 1/2" hex

4шт.

29

92-8

LOCK WASHER,1/2"

4шт.

30

A13022

O-RING,1/3" ID x 1/9" OD

SEAL - hub oil seal retainer

2шт.

31

A13109

SPARE PART

STUD - trunnion socket to axle housing 9/16" (Axle model HX8) (See A15747)

8шт.

32

A13116

STUD - trunnion socket to housing 3/4" (Axle model HX8) (See A15747)

8шт.

33

A13117

RING, SNAP

SNAP RING - axle shaft retainer

2шт.

34

A13118

PIN - steering bearing (Not serviced supply A13010 or A15385)

4шт.

35

A13119

PIN - hub oil seal retainer

2шт.

36

A13120

STUD

- steering, Serial Range: knuckle-flange

24шт.

37

A13136

RING

WASHER - steering knuckle to flange stud

24шт.

38

A13141

OIL SLINGER - hub bearing

2шт.

39

A13142

X

FLANGE - steering knuckle L.H. (Includes bushing, bolts and nuts) (Axle model HX8) (See A15740 and A15744)

1шт.

40

A15161

X

FLANGE - steering knuckle R.H. w/bushing, bolts and nuts (Axle model HX9) (Exhaust stock then supply A15741, A15742, A15743 and A15745)

1шт.

41

A15385

SPARE PART

SOCKET - trunnion (Axle model HX13) (See A13010)

2шт.

42

A15740

FLANGE

- steering knuckle L.H w/bushing, bolts and nuts (Axle model HX9) (Exhaust stock then supply A15741, A15742, A15743 and A15744)

1шт.

43

A15741

SEAL

OIL SEAL - trunnion socket (Axle model HX13)

2шт.

44

A15742

RETAINER

- trunnion socket oil seal (Axle model HX13)

2шт.

45

A15743

RING

SNAP RING - trunnion socket oil seal (Axle model HX13)

2шт.

46

A15744

FLANGE - steering knuckle, L.H. w/bushings, bolts and nuts (Axle model HX13)

1шт.

47

A15745

FLANGE

- steering knuckle R.H. w/bushings, bolts and nuts (Axle model HX13)

1шт.

48

A15746

WASHER

- axle shaft guide (Axle model HX13) Not illustrated

1шт.

49

A15747

X

STUD - trunnion socket to housing (Axle model HX13)

16шт.

50

A15820

OIL SEAL

- spindle

2шт.

51

A13274

SHAFT

UNIVERSAL JOINT AND CAGE ASSEMBLY - includes 6 - A12982, 1 - A12981, 1 - A13011, 1 - A13013 and 1 - A13117

2шт.
