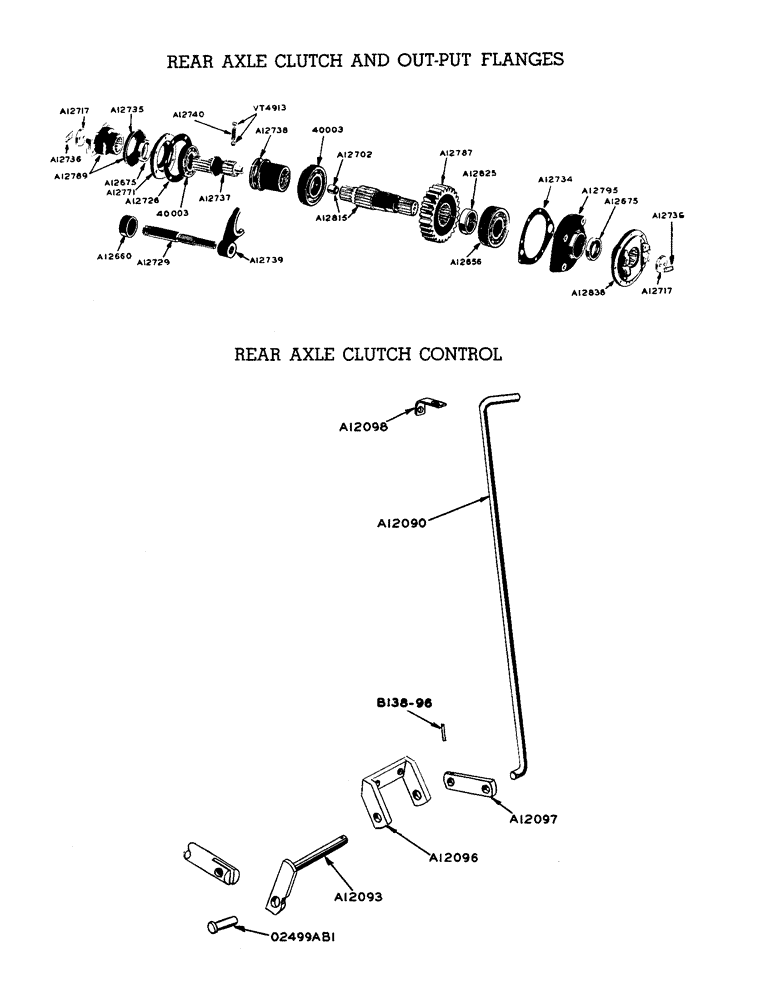

Запчасти Case W9 (092) - REAR AXLE CLUTCH AND OUT-PUT FLANGES, REAR AXLE CLUTCH (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
40003
BEARING
- rear output shaft (ND3311)
2шт.
A12656
BALL BEARING,2.3622" ID x 5.1181" OD x 1.2205"
BEARING - front, output shaft (ND3312)
1шт.
A12660
SEAL
OIL SEAL - rear wheel drive shifter fork shaft
1шт.
A12675
GASKET
OIL SEAL - rear output flange and front output flange
2шт.
A12702
BUSHING - front output shaft
1шт.
A12717
WASHER
- output flange retaining
2шт.
A12726
GASKET
- rear bearing retainer
1шт.
A12729
SHAFT - real wheel drive shifter fork
1шт.
A12734
GASKET - front output bearing retainer for A12795
1шт.
A12735
SHIELD - dist, rear output flange
1шт.
A12736
LOCKING PLATE
- locking, output flange
2шт.
3/8" x 1-1/8" hex. hd. bolt N.F.
4шт.
A12737
SHAFT - rear output
1шт.
A12738
COUPLING - disconnect clutch, for rear wheel drive
1шт.
A12739
FORK - clutch, for rear wheel drive
1шт.
A12740
SPRING - rear drive shifter fork detent
1шт.
A12771
RETAINER - rear output shaft bearing
1шт.
3/8" x 1" hex. hd. bolt N.C. w/lockwasher
6шт.
A12787
GEAR - output driven
1шт.
A12789
FLANGE
- rear output w/shield
1шт.
A12795
RETAINER - transfer housing output bearing front
1шт.
3/8" x 1-3/8" hex. hd. bolt N.C. w/lockwasher
8шт.
A12815
SHAFT - front output, w/bushing
1шт.
A12825
SPACER - output driven gear
1шт.
A12838
FLANGE - front output shaft mounting
1шт.
VT4913
X
BALL - disconnect clutch detent 3/8"
2шт.
A12090
ROD - rear axle drive clutch hand control
1шт.
1/8" x 1" cotter pin, rear axle clutch control
1шт.
A12093
LEVER & CROSS SHAFT - rear axle drive clutch, rear axle clutch control
1шт.
A12096
SHAFT
BRACKET - rear axle drive clutch lever & cross shaft, rear axle clutch control
1шт.
3/8" x 1-1/4" fin. hex. bolt N.C. w/lockwasher, rear axle clutch control
2шт.
A12097
LEVER - outer, rear axle drive clutch, rear axle clutch control
1шт.
A12098
CLIP - hand control rod rear axle drive, rear axle clutch control
1шт.
3/8" x 1" fin. hex. bolt N.F. w/nut and lockwasher, rear axle clutch control
1шт.
B138-96
ROLL PIN - 3/16" x 1" used on A12097 lever, rear axle clutch control
1шт.
O2499AB1
X
PIN - rear axle drive clutch inner lever, rear axle clutch control
1шт.
1/8" x 1" cotter pin, rear axle clutch control
1шт.
Выбрано товаров: 37
