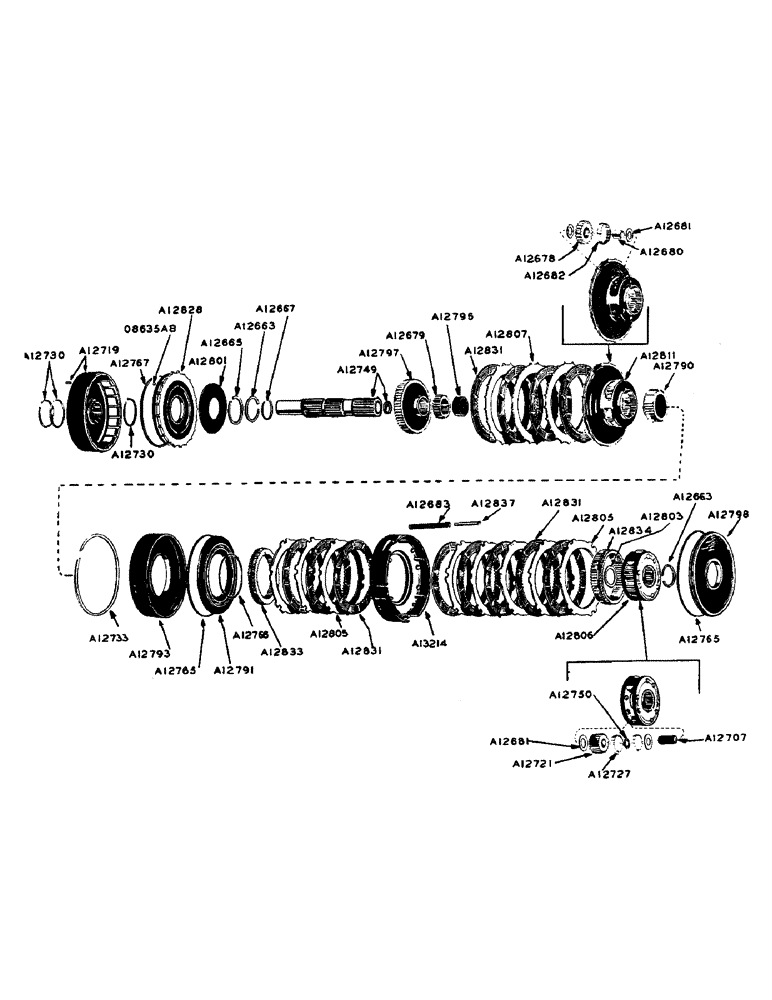

Запчасти Case W9 (086) - INTERMEDIATE, HIGH AND LOW RANGE PLANETARIES AND CLUTCH (06) - POWER TRAIN

A12663

RING

SNAP RING - clutch drum

2шт.

A12665

RING, SNAP

SNAP RING - intermediate piston spring retaining

1шт.

A12677

RING, SNAP

SNAP RING - intermediate range clutch

1шт.

A12678

X

PINION - high range planet (Set of 6)

1шт.

A12679

GEAR

- sun, high range

1шт.

A12680

PIN

- high range planet pinion

6шт.

A12681

WASHER

- thrust, low range planet pinion

12шт.

A12681

WASHER

- thrust, high range planet

12шт.

A12682

NEEDLE

- bearing, high range planet pinion

120шт.

A12683

SPRING - clutch piston return

12шт.

A12699

PLUG - transmission main shaft

1шт.

A12707

PIN - low range planet pinion

6шт.

A12719

DRUM

- intermediate range clutch

1шт.

A12721

PINION - low range planet (Set of 6)

1шт.

A12727

NEEDLE - bearing, low range planet pinion

240шт.

A12730

RING

SEAL RING - intermediate clutch drum

3шт.

A12733

RING, SNAP

SNAP RING - high range piston housing

1шт.

A12749

SHAFT - transmission main, assembly

1шт.

A12750

SPACER - low range planet pinion

6шт.

A12765

X

SEAL RING - high and low range piston

2шт.

A12766

X

SEAL RING - high range clutch

1шт.

A12767

SEAL RING - intermediate range clutch piston

1шт.

A12790

GEAR - sun, low range

1шт.

A12791

PISTON - high range clutch

1шт.

A12793

HOUSING - high range piston

1шт.

A12796

SPACER - high range piston housing

1шт.

A12797

HUB - intermediate range clutch

1шт.

A12798

PISTON - low range clutch

1шт.

A12801

SPRING

- intermediate piston return

1шт.

A12803

WASHER - thrust, low range planet

1шт.

A12805

PLATE

- clutch, external splined (High & low range)

8шт.

A12806

CARRIER ASSEMBLY - low range planet

1шт.

A12807

PLATE

- clutch, external spline (Intermediate range)

3шт.

A12809

X

ANCHOR - high and low range clutch (Use prior to transmission serial #5719) (Use w/A12809) (Use A13214 anchor & A13215 pins)

1шт.

A12811

CARRIER

- high range planet

1шт.

A12828

PISTON - intermediate range

1шт.

A12831

FACING, CLUTCH

PLATE - clutch, internal spline (High & low range)

8шт.

A12831

FACING, CLUTCH

PLATE - clutch, internal spline (Intermediate range)

4шт.

A12833

GEAR - high range clutch ring

1шт.

A12834

GEAR

- low range ring

1шт.

A12837

PIN - low and high range clutch piston spring

12шт.

A13214

ANCHOR

- high and low range clutch, transmission serial #5719 and after (Use w/A13215) (See A12809)

1шт.

O8635AB

X

BALL - intermediate range piston

2шт.
