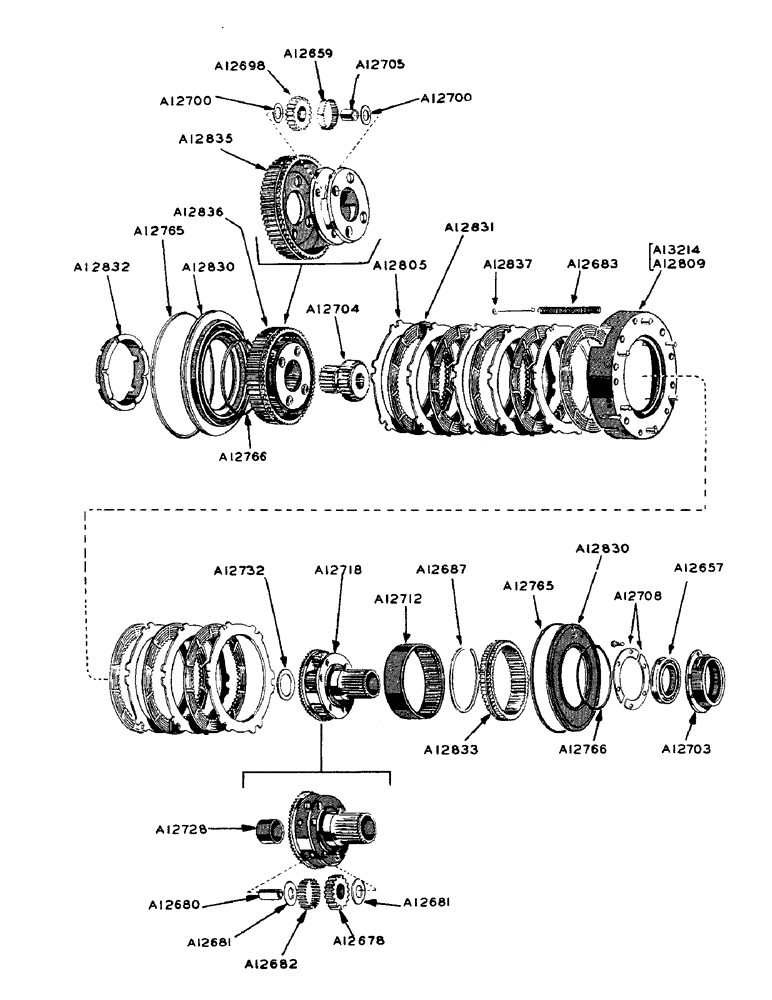

Запчасти Case W9 (084) - FORWARD AND REVERSE PLANETARY CLUTCH (06) - POWER TRAIN

A12657

BALL BEARING

BEARING - forward and reverse planet (ND43L14)

1шт.

A12659

NEEDLE

- bearing, planet pinion

88шт.

A12678

X

PINION - reverse planet (Set of 6)

1шт.

A12680

PIN

- reverse planet pinion

6шт.

A12681

WASHER

- thrust, forward planet pinion

12шт.

A12682

NEEDLE

- bearing, reverse planet pinion

120шт.

A12683

SPRING - clutch piston

12шт.

A12687

RING

SNAP RING - forward and reverse ring gears

1шт.

A12698

PINION - reverse planet (Set of 4)

1шт.

A12700

WASHER

- thrust, forward planet pinion

8шт.

A12703

HUB - oil transfer

1шт.

A12704

GEAR WHEEL

GEAR - sun, forward and reverse

1шт.

A12705

SPINDLE

PIN - forward planet pinion

4шт.

A12708

RETAINER - bearing, forward and reverse planet

2шт.

3/8" x 7/8" hex. hd. bolt N.C.

6шт.

A12712

GEAR

- ring, reverse

1шт.

A12718

GEAR - assembly, reverse planet

1шт.

A12728

BUSHING

- reverse planet

1шт.

A12732

WASHER

- thrust, reverse planet

1шт.

A12765

X

SEAL RING - clutch piston

2шт.

A12766

X

SEAL RING - clutch planet

2шт.

A12805

PLATE

- clutch, external spline, forward and reverse

8шт.

A12809

X

ANCHOR - forward clutch, prior to transmission serial #5719 (Use w/A12800 pin) (Use A13214 anchor and A13215 pins)

1шт.

A12830

PISTON - forward and reverse clutch

2шт.

A12831

FACING, CLUTCH

PLATE - clutch, internal spline (Forward and reverse)

8шт.

A12832

SPACER - clutch, forward and reverse

1шт.

A12833

GEAR - ring, reverse

1шт.

A12835

HUB - forward planet

1шт.

A12836

CARRIER

GEAR - assembly, forward planet

1шт.

A12837

PIN - clutch piston spring

12шт.

A13214

ANCHOR

- forward clutch, tranmission serial #5719 and after (Use w/A13215 pin) (See A12809)

1шт.
