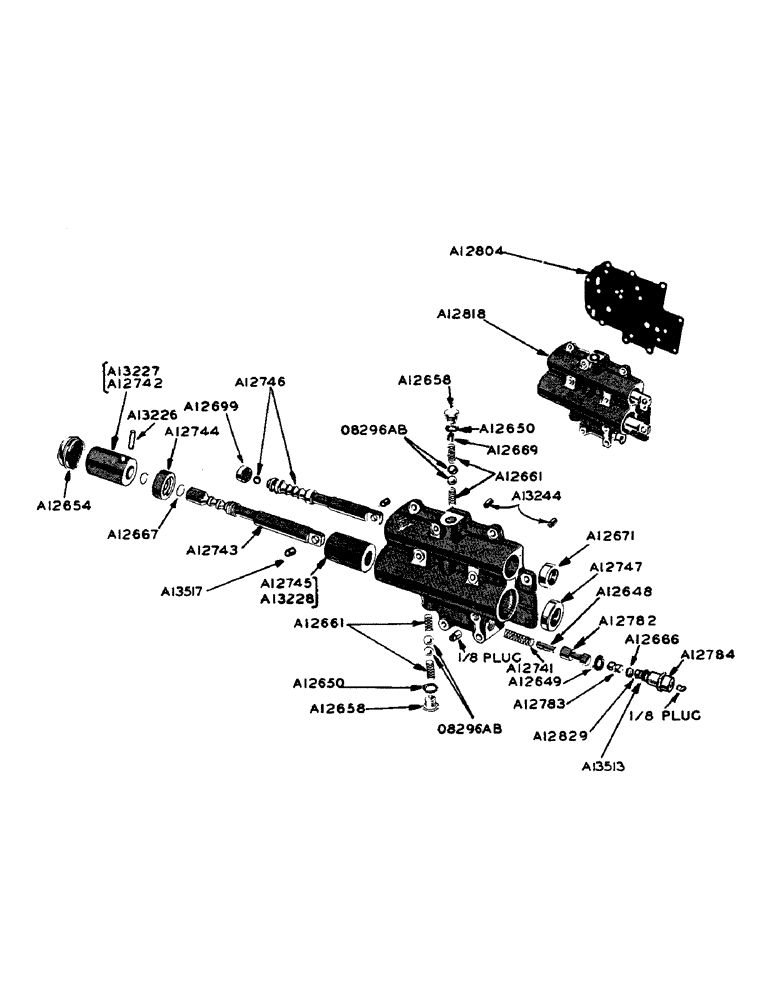

Запчасти Case W9 (082) - SELECTOR VALVE (06) - POWER TRAIN

A12648

X

PIN - cut-off valve

1шт.

A12649

GASKET

- cut-off valve plug retainer

1шт.

A12650

GASKET - selector valve plug

2шт.

A12654

PLUG - cover, valve spool

1шт.

A12658

PLUG - selector valve

2шт.

A12660

SEAL

OIL SEAL - range selector valve spool

1шт.

A12661

SPRING

- selector valve ball

4шт.

A12666

O-RING,0.359" ID x 0.73"

"O" RING - cut-off valve plug

1шт.

A12667

RING

SNAP RING - piston, forward and reverse valve spool

2шт.

A12669

WEIGHT

PIN - selector valve plug

1шт.

A12699

PLUG - range selector valve spool

1шт.

A12741

SPRING - cut-off valve

1шт.

A12742

SLEEVE - forward shift valve (Prior to transmission serial #5909 or control valve with set screw to anchor sleeve)

1шт.

A12743

VALVE SPOOL - forward and reverse (Includes bushings)

1шт.

A12744

PISTON - forward and reverse valve spool

1шт.

A12745

SLEEVE - reverse valve spool (Prior to transmission serial #5909 or control valve with set screw to anchor sleeve)

1шт.

A12746

VALVE SPOOL - range selector w/ball

1шт.

A12747

OIL RESERVOIR

OIL SEAL - forward and reverse valve spool

1шт.

A12782

LOCK VALVE

VALVE - cut-off

1шт.

A12783

PLUG

- cut-off valve

1шт.

A12784

PLUG

- selector valve cut-off retainer

1шт.

A12804

GASKET

- selector valve body

1шт.

A12818

BODY - selector valve, assembly

1шт.

3/8" x 1-1/4" hex. hd. bolt N.C. w/lockwasher

6шт.

3/8" x 3" hex. hd. bolt N.C. w/lockwasher

5шт.

3/8" x 3/4" socket hd. screw N.C. (Prior to trans. no. 5909) (See A13244)

2шт.

1/8" pipe plug sq. hd.

2шт.

A12829

X

CUP - cut-off valve plug

1шт.

A13226

X

ROLL PIN - to anchor forward and reverse valve sleeves (Transmission serial #5909 and after)

2шт.

A13227

SLEEVE - forward shift valve (Transmission serial #5909 and after or valves using roll pin to anchor sleeve)

1шт.

A13228

SLEEVE - reverse shift valve (Transmission serial #5909 and after or valve using roll pin to anchor sleeve)

1шт.

A13244

X

PIN - selector valve locating (Trans. no. 5909 and after)

2шт.

A13513

X

SPRING - clutch cut-off valve cup

1шт.

A13517

BUSHING - valve spool

2шт.

O8296AB

X

BALL - steel, selector valve (5/8")

4шт.
