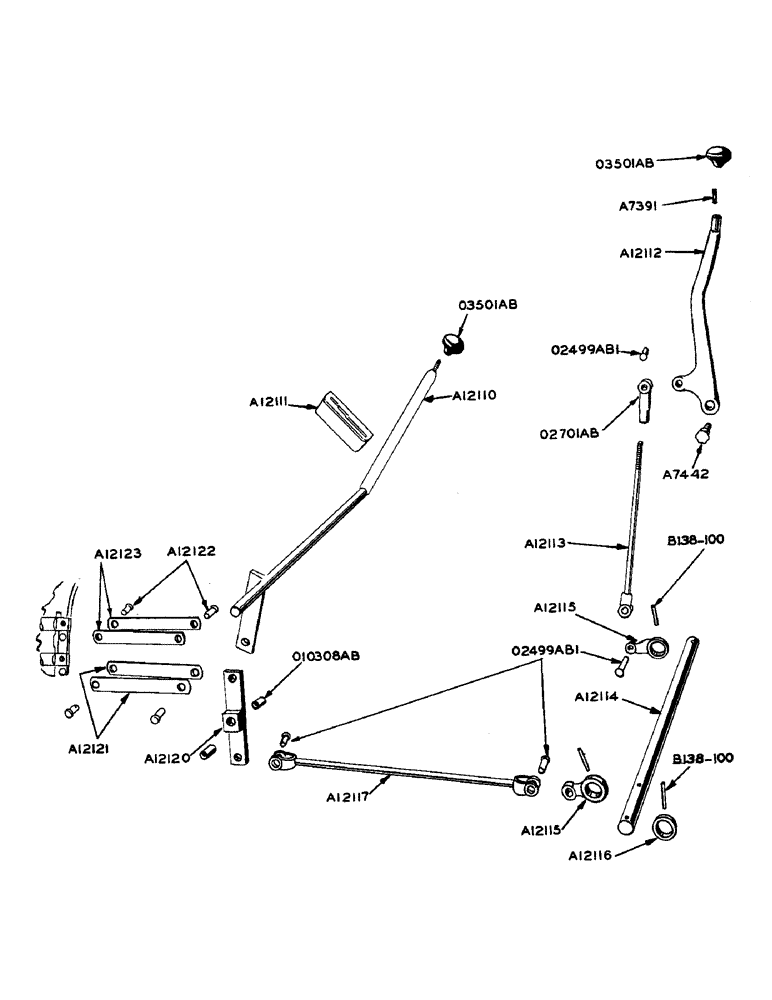

Запчасти Case W9 (080) - FORWARD, REVERSE AND RANGE SHIFTER CONTROL (06) - POWER TRAIN

A7391

STUD

- hand lever ball

1шт.

A7442

PIVOT PIN - hand lever, forward & reverse

1шт.

5/8" fin. hex. nut N.F. w/lockwasher

1шт.

5/8" plain washer

1шт.

A12110

CROSS SHAFT AND LEVER - transmission range shift

1шт.

A12111

GUIDE - range shift hand lever

1шт.

5/16" x 1" fin. hex. bolt w/nut and lockwasher

2шт.

A12112

LEVER - forward and reverse hand shift

1шт.

1/8" 90 degree Lincoln fitting

1шт.

A12113

LINK - upper, forward & reverse connecting

1шт.

1/8" fin. hex. nut N.F.

1шт.

A12114

SHAFT - forward & reverse cross

1шт.

A12115

LEVER - forward & reverse cross shaft

2шт.

A12116

COLLAR - forward & reverse cross shaft

1шт.

1/4" x 1-1/2 groove pin

1шт.

A12117

LINK - forward & reverse connecting lower

1шт.

A12120

LEVER - transmission forward and reverse valve lever w/2-O10308AB bushing

1шт.

A12121

STRAP - forward & reverse valve connecting

2шт.

A12122

PIN - valve connecting strap for forward and reverse and range shifter yoke ends

4шт.

1/8" x 1" cotter pin

4шт.

A12123

STRAP - range shift connecting

2шт.

A12220

BRACKET - shift lever pivot pin and transmission

1шт.

5/8" x 1-3/4" fin. hex. bolt N.C. and lockwasher

8шт.

3/4" x 2-1/2" fin. hex. bolt N.F. w/nuts and lockwasher

4шт.

B138-100

ROLL PIN (3/16" x 1-1/2") 1-used on A12115 and 2 on A12120

3шт.

O2499AB1

X

PIN - yoke end, 1 used on O2701AB, 1-A12113, 2-A12117

4шт.

1/8" x 1" cotter pin

4шт.

O2701AB

X

END - yoke, female

1шт.

O3501AB

X

BALL - hand lever, forward & reverse, range shifter

2шт.

O10308AB

X

BUSHING - for A12120 lever

2шт.
