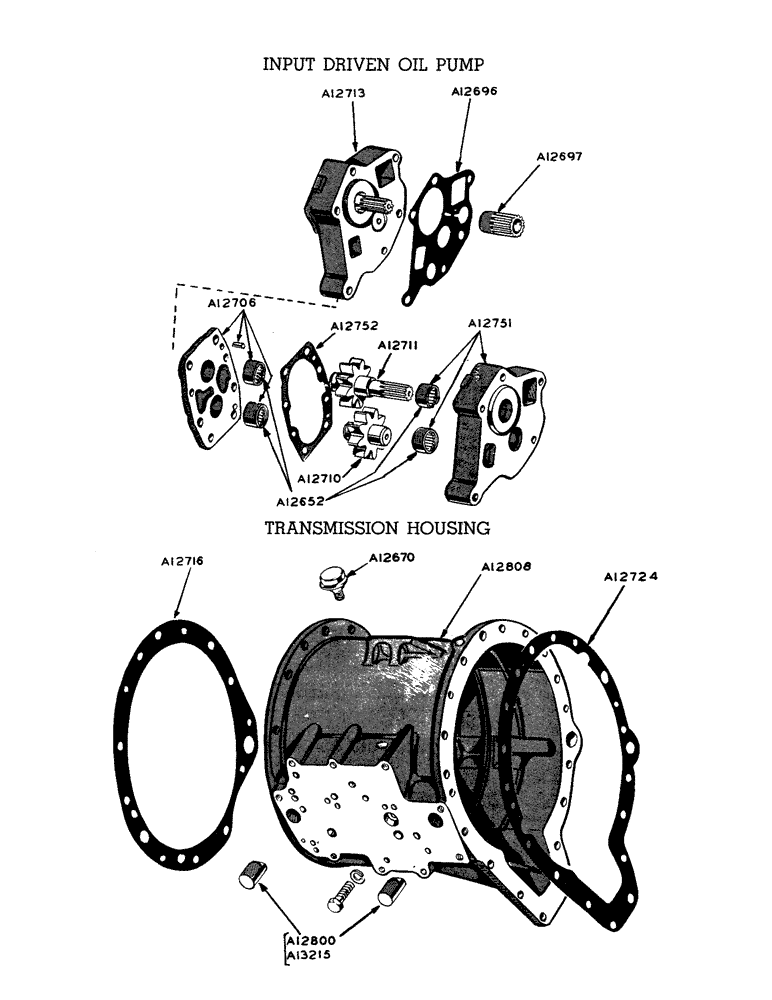

Запчасти Case W9 (078) - INPUT DRIVEN OIL PUMP, TRANSMISSION HOUSING (06) - POWER TRAIN

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

BEARING - oil pump cover and housing (B1612)

4шт.

A12696

GASKET

- oil pump mounting

1шт.

A12697

COUPLING

- oil pump drive

1шт.

A12706

COVER - oil pump, assembly

1шт.

3/8" x 1" hex. hd. bolt N.C. w/lockwasher

4шт.

A12710

GEAR - oil pump idler

1шт.

A12711

GEAR - oil pump drive

1шт.

A12713

PUMP

- input driven oil, assembly

1шт.

3/8" x 2-1/4" hex. hd. bolt N.C. w/lockwasher

2шт.

3/8" x 2-3/4" hex. hd. bolt N.C. w/lockwasher

4шт.

A12751

TYRE/TIRE

BODY - oil pump w/bearings

1шт.

A12752

RIGID TUBE

GASKET - oil pump cover

1шт.

A12670

X

BREATHER - transmission housing

1шт.

3/8" x 5" pipe nipple, transmission housing

1шт.

3/8" pipe coupling, transmission housing

1шт.

A12716

GASKET

- convertor housing to transmission housing

1шт.

A12724

GASKET

- transmission housing to transfer housing

1шт.

A12800

PIN - low and high also forward and reverse range anchor, prior to transmission serial #5719 (Use w/A12809 anchor) (See A13215)

2шт.

A12808

HOUSING - transmission

1шт.

7/16" x 1-1/4" hex. hd. bolt N.C. w/lockwasher, transmission housing

13шт.

7/16" x 1-3/8" hex. hd. bolt N.C. w/lockwasher, transmission housing

18шт.

3/8" x 1-1/2" hex. hd. bolt N.C. w/lockwasher, transmission housing

1шт.

A13215

PIN - low and high also forward and reverse range anchor, transmission serial no. 5719 and after (Use w/A13214 anchor) (See A12800), transmission housing

2шт.
