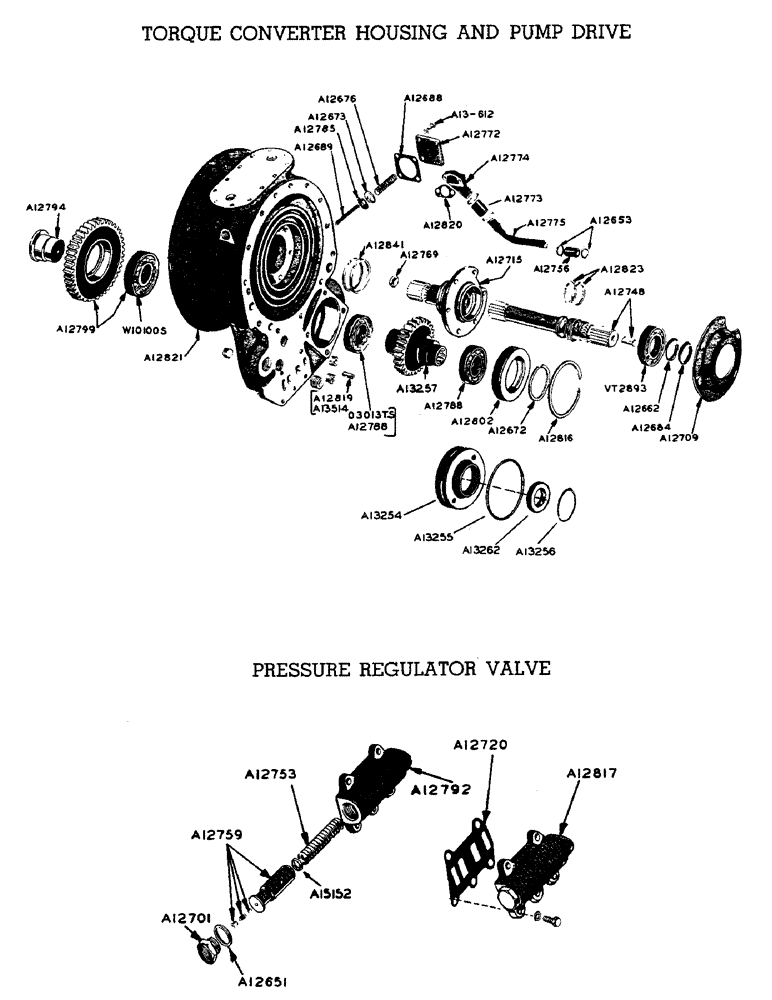

Запчасти Case W9 (076) - TORQUE CONVERTER HOUSING AND PUMP DRIVE, PRESSURE REGULATOR (06) - POWER TRAIN

A13-612

BOLT - hex. hd. (3/8" x 3/4" N.C.) For A12772 cover

4шт.

3/8" std. lockwasher

4шт.

A12653

X

CLAMP - hose (1-1/4") Convertor housing drain

2шт.

A12662

X

SNAP RING - convertor shaft front bearing

1шт.

A12672

SNAP RING - pump drive gear front bearing (Prior to trans. no. 7596)

1шт.

A12673

X

VALVE - lube oil pressure regulator

1шт.

A12676

SPRING - lube oil pressure regulator valve

1шт.

A12684

HOSE

SNAP RING - convertor shaft front bearing

1шт.

A12688

GASKET

- lube oil pressure regulator valve cover

1шт.

A12689

PIN - lube oil pressure regulator valve

1шт.

A12709

RETAINER - converter shaft front bearing

1шт.

3/8" x 7/8" hex. hd. bolt N.C.

6шт.

A12715

SLEEVE - convertor shaft

1шт.

A12748

SHAFT - convertor assembly

1шт.

A12756

HOSE ASSY.

HOSE - convertor housing drain

1шт.

A12769

X

PLUG - Welch (3/4") For A12715 convertor sleeve

1шт.

A12772

COVER - lube oil pressure regulator valve

1шт.

A12773

HOSE ASSY.

HOSE - convertor housing drain tube

1шт.

1-1/2" hose clamp #10-1/2"

2шт.

A12774

FLANGE

- convertor housing drain tube

1шт.

3/8" x 2-1/2" fin. hex. bolt N.C. w/lockwasher

2шт.

A12775

TUBE - convertor housing drain

1шт.

A12785

WASHER - lube oil pressure regulator valve

1шт.

A12788

BEARING - front, oil pump drive (ND9509) Sealed also rear (Trans. no. 7596 and after)

1шт.

A12794

SPINDLE

- oil pump drive idler gear

1шт.

7/16" x 1-3/4" hex. hd. bolt N.C.

1шт.

A12799

GEAR - idler, oil pump drive w/bearing

1шт.

A12802

RETAINER

- pump drive gear bearing (Prior to trans. no. 7596) (See A13254)

1шт.

A12816

SNAP RING

- pump drive bearing retainer

1шт.

A12819

TUBE - oil director, convertor housing (Prior to trans. no. 8590) (See A13514)

1шт.

A12820

GASKET

- convertor housing drain tube

1шт.

A12821

HOUSING - torque convertor w/plugs

1шт.

3/8" x 1-1/4" N.F. fin. hex. bolt w/lockwasher and nuts

12шт.

A12823

SEAL RING - convertor shaft

2шт.

A12841

SEAL

RING - convertor shaft sleeve rear

2шт.

A13254

RETAINER

- pump drive gear bearing (Trans. no. 7596 and after)

1шт.

A13255

O-RING

"O" RING - outer for A12802 and A13254 (Trans. no. 7596 and after)

1шт.

A13256

"O" RING - inner for A12802 (Trans. no. 9596 and after)

1шт.

A13257

GEAR WHEEL

GEAR - oil and hydraulic pump drive

1шт.

A13262

SEAL

OIL SEAL - pump drive gear (Trans. no. 7596 and after)

1шт.

A13514

TUBE - oil director (Trans. no. 8590 and after) (See A12819)

1шт.

VT2893

X

BEARING - convertor shaft front (ND3207)

1шт.

W10100S

BEARING

- oil pump idler gear

1шт.

O3013TS1

X

BEARING - rear oil pump drive (ND3209) Prior to trans. no. 7596 use A12788

1шт.

A12651

GASKET - pressure regulator valve plug

1шт.

A12701

PLUG

- pressure regulator valve

1шт.

A12720

GASKET

- pressure regulator valve body

1шт.

A12753

RIM

SPRING - pressure regulator valve

1шт.

A12759

X

SPOOL - pressure regulator valve assembly (Includes spring, ball, retainer)

1шт.

A12792

BODY - regulator valve, pressure

1шт.

3/8" x 1-1/4" hex. bolt N.C. w/lockwasher, pressure regulator valve

5шт.

A12817

VALVE - pressure regulator, assembly

1шт.

3/8" x 1-1/4" hex. hd. bolt N.C. w/lockwasher, pressure regulator valve

5шт.

A15152

SHIM

- between A12753 and A12759, pressure regulator valve

2шт.
