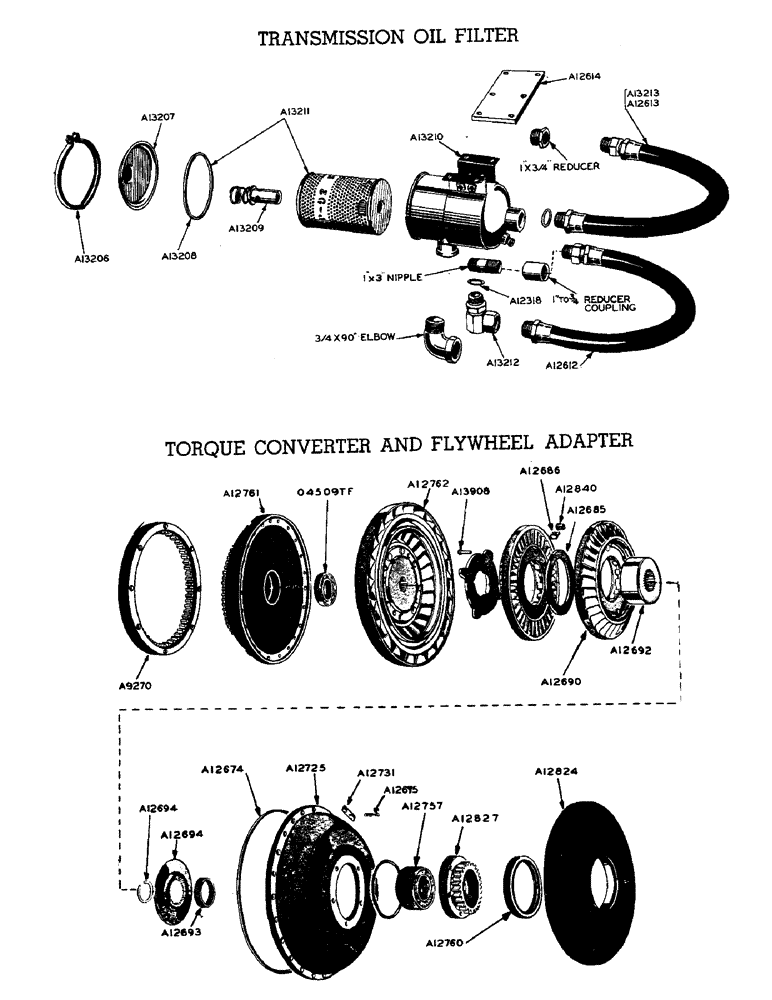

Запчасти Case W9 (074) - TRANSMISSION OIL FILTER, TORQUE CONVERTER AND FLYWHEEL (06) - POWER TRAIN

A12318

X

"O" RING - for A13212 elbow and A13213 hose

2шт.

A12612

HOSE ASSY.

HOSE - inlet

1шт.

3/4" x 90 degree street elbow (Zinc plated) (See A13212)

1шт.

3/4" x 1-3/8" pipe needle (Zinc plated) Prior to trans. no. 8590

1шт.

3/4" P.T. pipe coupling (Zinc plated) Prior to trans. no. 8590

1шт.

1" to 3/4" reducing pipe coupling trans. no. 8590 and after

1шт.

1" x 3" pipe nipple - trans. no. 8590 and after

1шт.

A12613

HOSE - outlet (For units not listed in note below) (See A13213)

1шт.

1" x 3/4" reducing bushing (Zinc plated)

1шт.

A12614

PLATE - oil filter mounting

1шт.

3/8" x 1-1/2" fin. hex. bolt N.F. w/nut and lockwasher

2шт.

3/8" x 1" fin. hex. bolt N.F. w/nut and lockwasher

2шт.

A12615

FILTER - transmission oil, assembly (When replacing filter on units listed in note below order on A12613 hose and one 3/4" - 90 degree street elbow)

1шт.

1/4" pipe plug

1шт.

A13206

MOUNTING CLIP

CLAMP - cover

1шт.

1/4" x 1-1/4" N.C. slotted rhd. screw

1шт.

A13207

COVER - oil filter

1шт.

A13208

GASKET

GASKET - cover

1шт.

A13209

COVER

SPRING AND RELIEF VALVE

1шт.

A13210

BRACKET - oil filter clamping

1шт.

5/16" x 2-1/2" N.C. slotted rhd. screw w/nut and lockwasher

2шт.

A13211

FILTER, ENGINE OIL

ELEMENT - w/gasket

1шт.

A13212

X

ELBOW - 90 degree adapter w/"O" ring (Only used on units listed in note below)

1шт.

A13213

HOSE - outlet w/"O" ring (For units having serial numbers as follows) (See A12613)

1шт.

A25-135

NUT - hex. lock N.F. 5/16" for A12695 bolt, torque converter and flywheel adapter

24шт.

A9270

RING

- flywheel adapter, assembly, torque converter and flywheel adapter

1шт.

3/8" x 1-1/2" fin. hex. bolt N.C. w/lockwasher, torque converter and flywheel adapter

8шт.

A12674

RING

"O" RING - covertor seal, torque converter and flywheel adapter

1шт.

A12685

HOSE

WASHER - spacing, between first and second stator, torque converter and flywheel adapter

1шт.

A12686

X

SPRING - convertor, free wheel roller, torque converter and flywheel adapter

16шт.

A12690

STATOR

- second, torque convertor, and flywheel adapter

1шт.

A12691

SPACER - second stator, torque converter and flywheel adapter

1шт.

A12692

RACE - free wheel, for convertor, torque converter and flywheel adapter

1шт.

A12693

SPACER

- convertor pump, torque converter and flywheel adapter

1шт.

A12694

RING, SNAP

SNAP RING - convertor shaft, torque converter and flywheel adapter

1шт.

A12695

BOLT

(5/16" x 1.30" N.F.) Convertor pump, torque converter and flywheel adapter

24шт.

A12725

PUMP - torque convertor and flywheel adapter

1шт.

1/2" x 1-1/4" hex. hd. bolt N.F., torque converter and flywheel adapter

6шт.

A12731

LOCKING PLATE

STRIP - locking, convertor pump housing, torque converter and flywheel adapter

3шт.

A12757

BEARING

- front, torque convertor (#MRC5209K), torque converter and flywheel adapter

1шт.

A12760

X

SEAL - convertor housing diaphragm, torque converter and flywheel adapter

1шт.

A12761

X

COVER - covertor pump, torque converter and flywheel adapter

1шт.

A12762

TURBINE

- torque convertor and flywheel adapter

1шт.

A12824

DIAPHRAGM

- convertor housing, seal, torque converter and flywheel adapter

1шт.

A12826

GASKET

- input accessory drive gear to convertor, torque converter and flywheel adapter

1шт.

A12827

GEAR - input accessory drive, torque converter and flywheel adapter

1шт.

A12840

ROLLER

- convertor, free wheel, torque converter and flywheel adapter

16шт.

A13908

STATOR

- torque convertor w/thrust washer and rivets (Assembly), torque converter and flywheel adapter

1шт.

O4509TF

X

BEARING - convertor rear cover (New Departure) (ND3208), torque converter and flywheel adapter

1шт.
