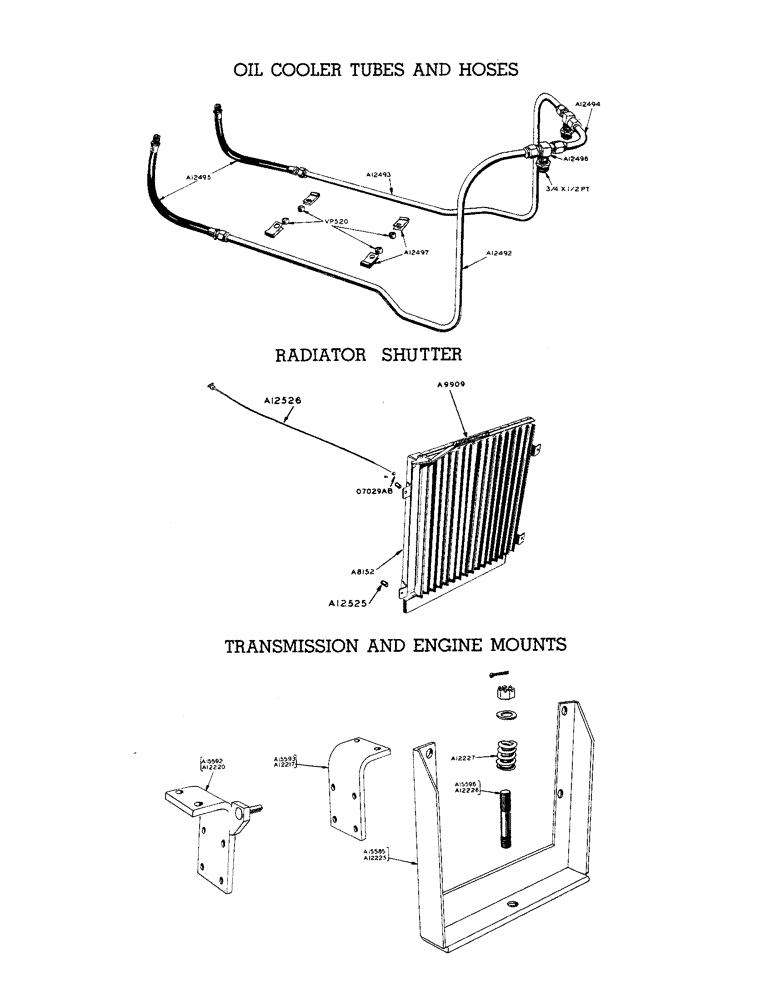

Запчасти Case W9 (072) - OIL COOLER TUBES AND HOSES, RADIATOR SHUTTER, TRANSMISSION (06) - POWER TRAIN

A12492

TUBE - oil cooler, R.H.

1шт.

A12493

TUBE - oil cooler, L.H.

1шт.

A12494

TUBE - oil cooler by-pass

1шт.

A12495

HOSE

- oil cooler

2шт.

1/2" street elbow galv

2шт.

1/2" x 1-1/8" nipple galv

2шт.

A12496

X

TEE - male outlet, oil cooler

2шт.

3/4" x 1/2" pipe reducer bushing

2шт.

A12497

CLIP - oil cooler tube

4шт.

3/8" x 1-1/4" fin. hex. bolt N.C.

4шт.

VP520

X

SPACER - oil cooler clip

4шт.

A8152

SHUTTER - radiator

1шт.

1/4" x 2-1/4" fin. hex. bolt N.F. w/int. - ext. Shakeproof, radiator shutter

1шт.

lockwasher #4014-20-00, radiator shutter

4шт.

A9909

SPRING - radiator shutter

1шт.

A12525

SPACER - shutter mounting, radiator shutter

4шт.

A12526

CONTROL - flexible

1шт.

O7029AB

CLAMP - control wire, radiator shutter

1шт.

#8 x 1/4" rhd. mach. screw, radiator shutter

1шт.

A12217

BRACKET - transmission mounting, L.H. (Can use A15593 & A15600), transmission and engine mounts

1шт.

5/8" x 1-3/4" fin. hex. bolt N.C. w/lockwasher, transmission and engine mounts

4шт.

3/4" x 2-1/2" fin. hex. bolt N.F. w/hex. nut and lockwasher, transmission and engine mounts

2шт.

A12220

BRACKET - transmission mounting and shift lever pivot, R.H. (Can use A15592 and A15600), transmission and engine mounts

1шт.

5/8" fin hex. bolt N.C. w/lockwasher, transmission and engine mounts

4шт.

3/4" x 2-1/2" fin. hex. bolt N.F. w/hex. nut and lockwasher, transmission and engine mounts

2шт.

A12225

MOUNT - engine (Can use A15585 and A15599), transmission and engine mounts

1шт.

3/4" x 2-1/4" fin. hex. bolt N.F. w/nut and lockwasher, transmission and engine mounts

4шт.

A12226

STUD - engine mount (Use A15596), transmission and engine mounts

1шт.

A12227

VALVE SPRING

SPRING - engine mount, transmission and engine mounts

1шт.

7/8" fin. hex. N.F. thick slotted nut, transmission and engine mounts

1шт.

3/16" x 2" cotter pin, transmission and engine mounts

1шт.

7/8" plain washer, transmission and engine mounts

2шт.

A15585

MOUNT - engine rear, transmission and engine mounts

1шт.

3/4" x 3" N.F. hex. bolt w/nut and lockwasher, transmission and engine mounts

4шт.

A15592

BRACKET - trans. R.H. mounting, transmission and engine mounts

1шт.

A15593

BRACKET - trans. L.H. mounting, transmission and engine mounts

1шт.

A15596

STUD - engine mount, transmission and engine mounts

1шт.

A15599

FELT - for A15585 engine support only, transmission and engine mounts

1шт.

A15600

FELT - for A15592 and A15593 trans. mounts, transmision and engine mounts

2шт.
