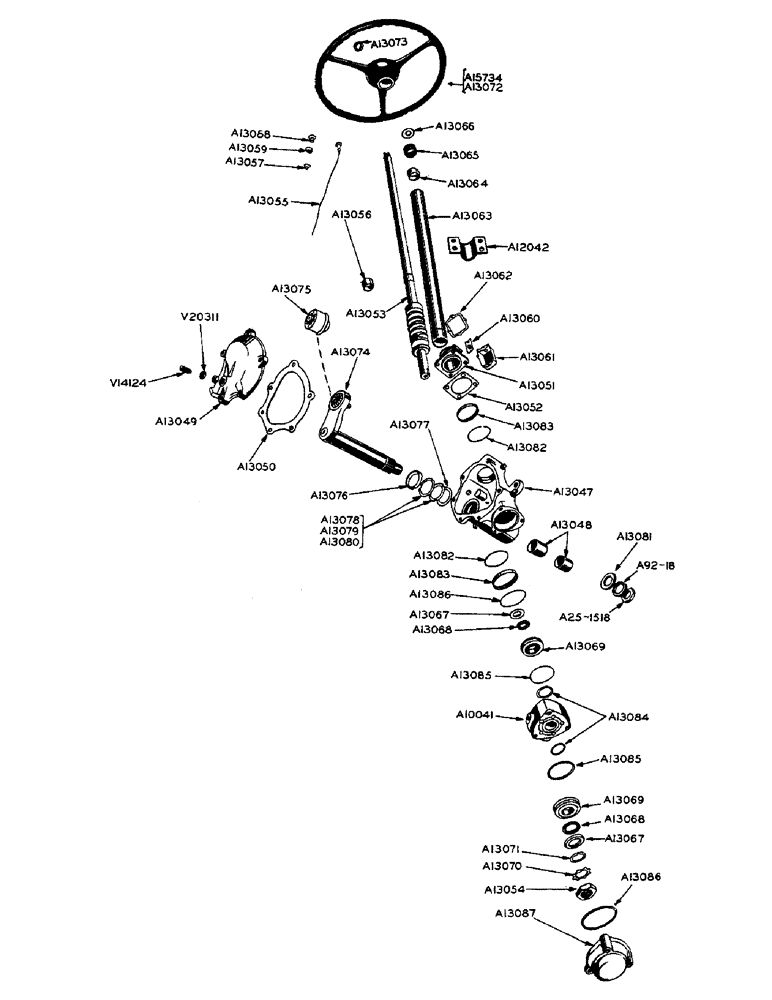

Запчасти Case W9 (124) - A12041 STEERING GEAR (05) - STEERING

A92-18

LOCKWASHER - levershaft (1-1/8" medium)

1шт.

A25-1518

NUT - levershaft (1-1/8" N.F.)

1шт.

A10041

VALVE - control, assembly

1шт.

A12009

LEVER

ARM - steering drop w/bushing

1шт.

A12041

STEERING GEAR AND VALVE (Less steering wheel)

1шт.

A12042

CLAMP - steering column

1шт.

3/8" x 1" fin. hex. bolt N.C. w/lockwasher

2шт.

A13047

HOUSING - steering w/bushings

1шт.

3/8" sq. hd. pipe plug

4шт.

A13048

BUSHING

- Steering housing

2шт.

A13049

COVER - side

1шт.

3/8" x 1-1/4" hex. hd. bolt N.C. w/lockwasher

6шт.

A13050

GASKET

- side cover

1шт.

A13051

COVER AND CLAMP - housing top

1шт.

3/8" x 1" N.C. hex. hd. bolt w/lockwasher

4шт.

3/8" x 1-7/8" N.C. hex. hd. bolt w/nut and lockwasher

1шт.

A13052

GASKET

- cover and clamp

1шт.

A13053

SHAFT AND WORM GEAR - assembly, steering

1шт.

A13054

NUT

JAM NUT - steering shaft

1шт.

A13055

WIRE - horn, assembly

1шт.

A13056

RING - contact, horn wire

1шт.

A13057

CUP ASSY.

CUP - contact, horn wire

1шт.

A13058

FERRULE

- insulating, horn wire

1шт.

A13059

SPRING

- horn wire

1шт.

A13060

BRUSH, COMMUTATOR

BRUSH - contact, horn wire

1шт.

#8-32 x 1/4" rd. hd. screw w/#8 int. lockwasher

2шт.

A13061

COVER - contact brush w/seal and insulator

1шт.

#8-32 x 1/4" rhd. screw w/#8 int. lockwasher

4шт.

A13062

GASKET

- contact brush cover

1шт.

A13063

TUBE - steering shaft w/bearing and sleeve

1шт.

A13064

SLEEVE

AND WASHER - tube

1шт.

A13065

ROLLER BEARING

BEARING - roller, tube

1шт.

A13066

WASHER

- roller bearing and sleeve

1шт.

A13067

WASHER

- thrust, worm gear

2шт.

A13068

X

BEARING - thrust, worm gear

2шт.

A13069

RACE

- bearing, worm gear

2шт.

A13070

WASHER

- int. and ext. tongued

1шт.

A13071

WASHER

- int. tongued

1шт.

A13072

WHEEL - steering (Can use A15734)

1шт.

A13073

NUT

- steering wheel

1шт.

A13074

LEVERSHAFT - assembly w/bearing assembly

1шт.

1-1/8" hex. jam nut N.F. w/lockwasher

1шт.

A13075

BEARING

- levershaft, assembly

1шт.

A13076

WASHER - thrust, levershaft

1шт.

A13077

WASHER - retainer, levershaft

1шт.

A13078

SHIM,.003" Thk

Levershaft .003" Thk

1шт.

A13079

SHIM - levershaft, .010"

1шт.

A13080

SHIM,.020" Thk

Levershaft .020" Thk

1шт.

A13081

OIL RESERVOIR

OIL SEAL - levershaft

1шт.

A13082

RING

- retainer, worm gear bearing

2шт.

A13083

NEEDLE BEARING,Needle, 50.8mm ID x 60.33mm OD x 12.7mm W

BEARING - worm gear

2шт.

A13084

O-RING,12.37" ID x 1.443" OD x 0.103"

"O" RING - control valve (1-1/4" I.D.)

2шт.

A13085

O-RING

"O" RING - control valve (2-3/16" I.D.)

2шт.

A13086

O-RING

"O" RING - control valve (2-3/4" I.D.)

2шт.

A13087

COVER - valve

1шт.

3/8" x 3-3/4" hex. hd. bolt N.C. w/lockwasher

2шт.

A15734

WHEEL (STEERING)

WHEEL - steering

1шт.

V14124

O-RING

SCREW - lever shaft adjusting

1шт.

V20311

X

NUT - for lever shaft adjusting screw

1шт.
