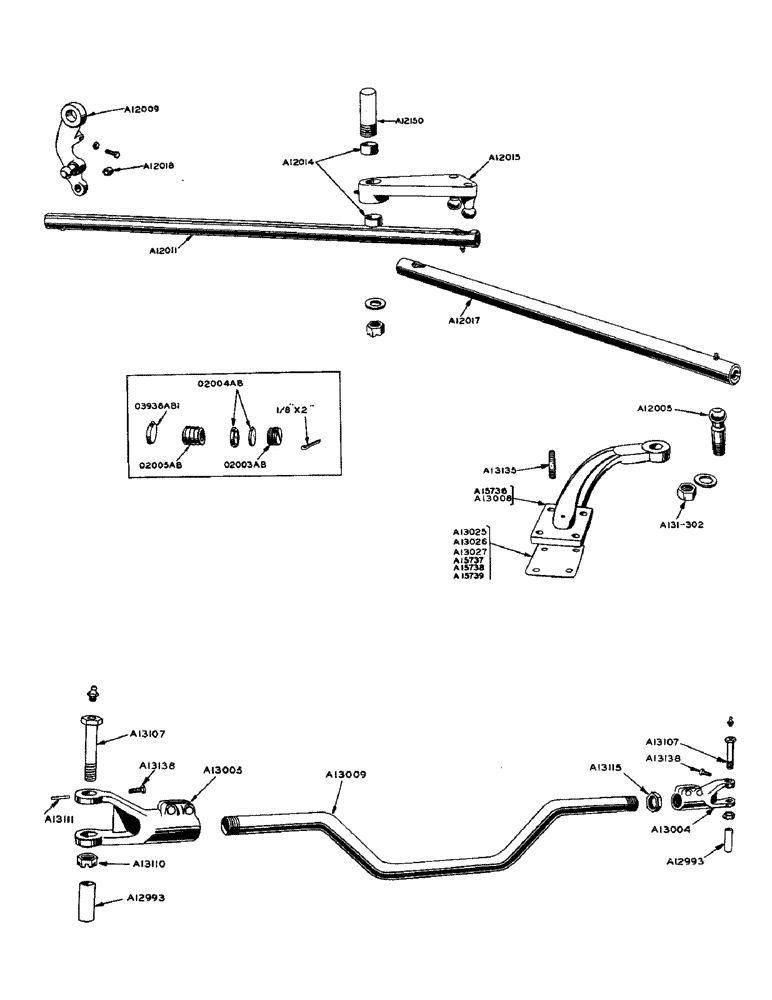

Запчасти Case W9 (122) - STEERING, ARMS, DRAG LINK AND TIE ROD (05) - STEERING

A131-302

NUT - Marsden fin. hex. N.F. used on A12005

1шт.

A12005

BALL

- steering axle arm

1шт.

A12009

LEVER

ARM - steering drop, w/bushing and ball

1шт.

1/2" x 1-1/2" fin. hex. bolt w/fin. hex. jam nut N.C.

2шт.

A12011

BRAKE

DRAG LINK - front, steering (Includes 2-O2003AB, 4-O2004AB, 2-O2005AB, 2-O3938AB1 and 2-1/8" x 2-1/4" cotter pin)

1шт.

1/8" str. Lincoln fitting

2шт.

A12014

BUSHING

- for A12015 steering lever

2шт.

A12015

LEVER - intermediate steering w/bushing and balls

1шт.

1/8" str. Lincoln fitting

1шт.

3/16" x 2" cotter pin

1шт.

1" fin. hex. slotted nut N.F. w/plain washer

1шт.

A12017

BRAKE

DRAG LINK - rear, steering (Includes 2-O2003AB, 4-O2004AB, 2-O3005AB, 2-O3938AB1 and 2-1/8" x 2-1/4" cotter pin)

1шт.

1/8" str. Lincoln fitting

2шт.

A12018

BUSHING

- steering cylinder mounting pin

2шт.

A12150

PIVOT PIN - intermediate steering lever (This part has to be weld-in place)

1шт.

1/8" str. Lincoln fitting

1шт.

3/16" x 2" cotter pin

1шт.

1" fin. hex. slotted nut N.F. w/plain washer

1шт.

A12993

BUSHING

- tie rod yoke bolt

2шт.

A13004

YOKE

- tie rod end, R.H.

1шт.

1/2" x 2-3/4" N.F. fin. hex. alloy steel bolt w/nut and lockwasher

2шт.

A13005

YOKE

- tie rod end, L.H.

1шт.

1/2" x 2-3/4" N.F. fin. hex. alloy steel bolt w/nut and lockwasher

2шт.

A13008

ARM - steering (Axle model HX8) (See A15736)

1шт.

A13009

TIE-ROD

TIE ROD

1шт.

A13025

SHIM - .005", steering arm (Axle model HX8) (See A15737)

2шт.

A13026

SHIM - .010", steering arm (Axle model HX8) (See A15738)

2шт.

A13027

SHIM - .030", steering arm (Axle model HX8) (See A15739)

1шт.

A13107

BOLT

- tie rod yoke

2шт.

1/8" x 1-1/2" cotter pin

2шт.

A13110

NUT

- tie rod yoke bolt

2шт.

A13111

AXLE PIN

PIN - tie rod yoke bolt lock

2шт.

A13115

LOCK NUT

- tie rod

1шт.

A13135

STUD

- steering arm (Axle model HX8) (See A15735)

4шт.

5/8" fin. hex. nut N.F. w/lockwasher

4шт.

A13138

SCREW - tie rod end stop

2шт.

A15735

STUD - steering arm (Axle model HX9) (See A13135)

4шт.

A15736

ARM - steering (Axle model HX9) (See A13008)

1шт.

A15737

SHIM

- .005 steering arm (Axle model HX9) (See A13025)

2шт.

A15738

SHIM

- .010 steering arm (Axle model HX9) (See A13026)

2шт.

A15739

SHIM

- .030 steering arm (Axle model HX9) (See A13027)

1шт.

O2003AB

X

SCREW - adjusting, for drag link

4шт.

1/8" x 2-1/4" cotter pin

4шт.

O2004AB

BEARING - drag link

8шт.

O2005AB

X

SPRING - drag link

4шт.

O3938AB1

X

SEAT AND SPACER - drag link

4шт.

MT27428

NUT - 7/8"-14 elastic stop for A15735 (Axle model HX9)

4шт.
