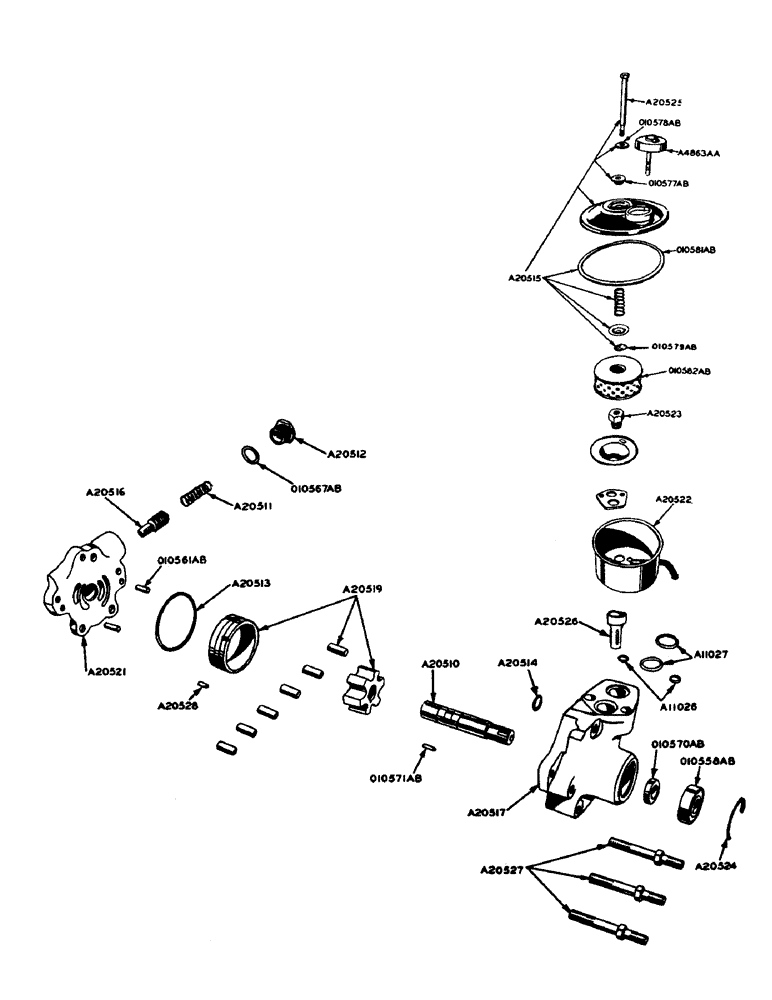

Запчасти Case W9 (120) - A20379 POWER STEERING PUMP (05) - STEERING

A11026

GASKET

- reservoir mounting screw

2шт.

A11027

GASKET

- reservoir mounting bolt

2шт.

A20510

SHAFT

- pump

1шт.

A20511

SPRING

- flow control

1шт.

A20512

CAP - relief valve

1шт.

A20513

O-RING

"O" RING - pump, Serial Range: body-cover

1шт.

A20514

O-RING

"O" RING - by-pass

1шт.

A20515

X

COVER - reservoir

1шт.

A20516

VALVE

- pressure relief

1шт.

A20517

BODY - pump w/bushing and venturi

1шт.

3/8" x 2" N.C. hex. hd. bolt w/lockwasher

2шт.

A20519

X

KIT - includes, 1-cam, 6-rollers and 1-carrier

1шт.

A20521

COVER

- pump w/bushing and 2-O10561AB dowels

1шт.

A20522

BODY - reservoir

1шт.

5/16" x 3/4" N.C. cap screw

2шт.

A20523

STUD

- reservoir body mounting

1шт.

A20524

RING, SNAP

SNAP RING - bearing retainer

1шт.

A20525

X

BOLT - reservoir cover

1шт.

A20526

VENTURI

- pump body

1шт.

A20527

STUD - pump mounting

3шт.

A20528

PIN

DOWEL PIN - cam

1шт.

A4863AA

X

CAP & GAUGE - reservoir cover

1шт.

O10558AB

X

BEARING - pump shaft (ND99503)

1шт.

O10561AB

PIN - dowel, pump, Serial Range: body-cover

2шт.

O10567AB

X

"O" RING - relief valve cap

1шт.

O10570AB

X

OIL SEAL - pump shaft

1шт.

O10571AB

X

KEY - driveshaft to roller carrier

1шт.

O10577AB

X

GASKET - reservoir cover screw

1шт.

O10578AB

X

WASHER - reservoir cover screw

1шт.

O10579AB

SPEED NUT - reservoir cover screw

1шт.

O10581AB

X

GASKET - reservoir cover

1шт.

O10582AB

X

ELEMENT - filter

1шт.
