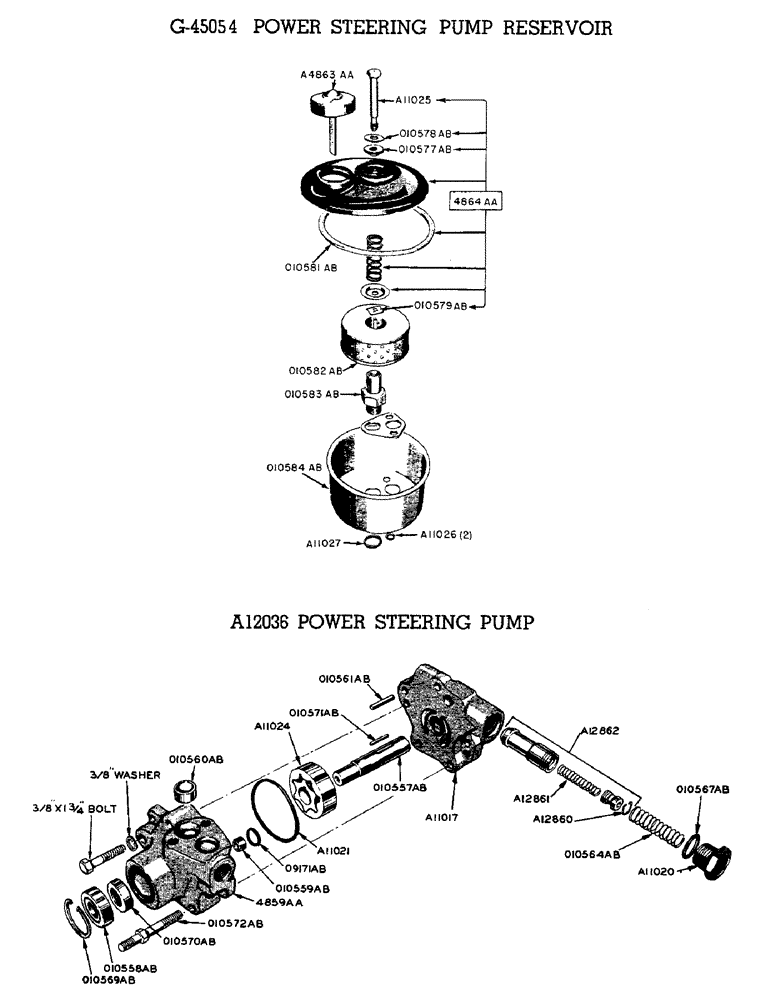

Запчасти Case W9 (118) - G-45054 POWER STEERING PUMP RESERVOIR, A12036 POWER STEERING (05) - STEERING

A11025

SCREW - reservoir cover

1шт.

A11026

GASKET

"O" RING - mounting bolt

2шт.

A11027

GASKET

"O" RING - return stud and outlet passage

1шт.

A4863AA

X

CAP AND GAUGE - filler, reservoir cover

1шт.

4864AA

COVER - assembly (Includes 1-O10577AB, 1-O10578, 1-O10579AB, 1-O10581AB, 1-A11025, 1 spring and retainer)

1шт.

O10577AB

X

GASKET - screw, reservoir cover

1шт.

O10578AB

X

WASHER - reservoir cover screw

1шт.

O10579AB

NUT - speed, reservoir cover screw

1шт.

O10581AB

X

GASKET - reservoir cover

1шт.

O10582AB

X

ELEMENT - filter

1шт.

O10583AB

STUD - reservoir return

1шт.

O10584AB

BODY - reservoir

1шт.

5/16" x 3/4" N.C. hex. hd. bolt

2шт.

A11017

COVER - assembly (Includes bushing and 2-O10561AB dowel pins), A12036 power steering pump

1шт.

A11020

FITTING - relief valve cap, A12036 power steering pump

1шт.

A11021

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

"O" RING - pump body to cover, A12036 power steering pump

1шт.

A11024

ROTOR - assembly (Inner and outer rotor), A12036 power steering pump

1шт.

A12860

SNAP RING - valve retainer, A12036 power steering pump

1шт.

A12861

SPRING - relief valve, A12036 power steering pump

1шт.

A12862

VALVE - control (Includes body, plunger, snap ring, and spring), A12036 power steering pump

1шт.

4859AA

BODY - pump w/bushing and retainers, A12036 power steering pump

1шт.

3/8" x 1-3/4" N.C. hex. hd. bolt w/lockwasher, A12036 power steering pump

1шт.

O9171AB

X

"O" RING - flow director, A12036 power steering pump

1шт.

O10557AB

SHAFT - pump drive, A12036 power steering pump

1шт.

O10558AB

X

BEARING - pump shaft (ND99503), A12036 power steering pump

1шт.

O10559AB

RETAINER - pump body gasket (9/16" x 1/4" long), A12036 power steering pump

1шт.

O10560AB

RETAINER - pump body gasket (3/4" x 5/8" long), A12036 power steering pump

1шт.

O10561AB

PIN - dowel, cover to pump body, A12036 power steering pump

2шт.

O10564AB

X

SPRING - flow control valve, A12036 power steering pump

1шт.

O10567AB

X

"O" RING - fitting, valve cap bolt, A12036 power steering pump

1шт.

O10569AB

SNAP RING - for O10558AB bearing, A12036 power steering pump

1шт.

O10570AB

X

OIL SEAL - pump shaft, A12036 power steering pump

1шт.

O10571AB

X

KEY - drive, pump rotor, A12036 power steering pump

1шт.

O10572AB

STUD - pump body to cover, A12036 power steering pump

3шт.
