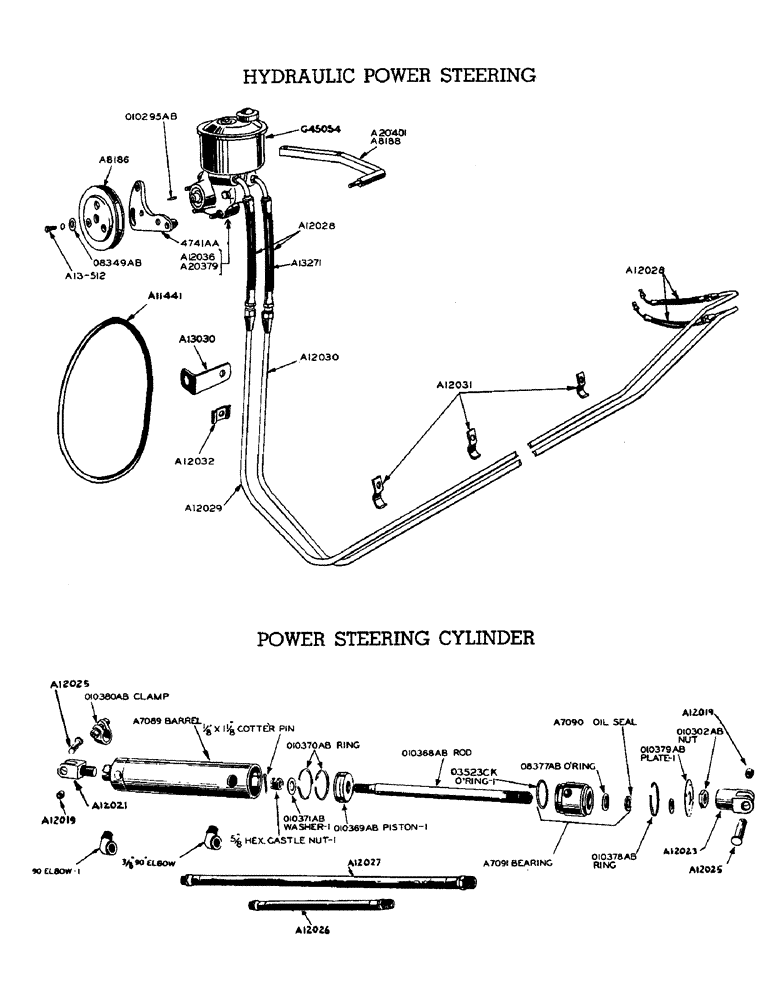

Запчасти Case W9 (116) - HYDRAULIC POWER STEERING, POWER STEERING CYLINDER (05) - STEERING

A13-512

BOLT - 5/16" x 3/4" fin. hex. N.C. used on A8186

1шт.

A8186

PULLEY

- pump

1шт.

A8188

STRAP - w/pivot pin pump mounting

1шт.

3/8" fin. hex. nut w/lockwasher

1шт.

7/16" x 2" fin. hex. bolt N.C. w/lockwasher (Diesel)

2шт.

7/16" x 1-1/2" fin. hex. bolt N.C. w/lockwasher (Spark ignition)

2шт.

A11441

X,0.38" W x 28.75" L

BELT, , Pump Drive 0.38" W x 28.75" L

1шт.

A12028

HOSE

- power steering pump and hydraulic valve (See A13271)

4шт.

A12029

TUBE - pump to steering valve (Return)

1шт.

A12030

TUBE - pump to steering valve (Pressure)

1шт.

A12031

CLIP - for A12029 and A12030 tubes

3шт.

5/16" x 1" fin. hex. bolt N.F. w/nut and lockwasher

3шт.

A12036

PUMP - power steering (1.0 GPM) w/out return, Serial Range: hose-reservoir

1шт.

To replace A12036 pump with A20379 new style roll pump also order 1-A13271 hose, 1-A20401 strap and #4 hose clamp.

1шт.

A13029

CLIP

- power steering tube

3шт.

A13030

BRACKET - power steering tube clip

1шт.

5/16" x 1" fin. hex. bolt N.F. w/nut and lockwasher

1шт.

A13271

HOSE - pump reservoir to A12029 tube (For A20379 pump)

1шт.

#4-5/8" hose clamp

1шт.

A20379

PUMP - power steering (New style roll pump)

1шт.

A20401

STRAP - w/pivot pin, pump mounting

1шт.

3/8" hex. nut N.F. w/lockwasher

1шт.

7/16" x 2" hex. bolt N.C. w/lockwasher (Diesel)

2шт.

7/16" x 1-1/2" hex. bolt N.C. w/lockwasher (Spark ignition)

2шт.

G45054

RESERVOIR

- oil, power steering (For A12036 pump)

1шт.

4741AA

PLATE - pump mounting

1шт.

3/8" x 1-1/4" fin. hex. bolt N.F. w/nut, lockwasher and plainwasher

1шт.

O8349AB

X

WASHER - pump pulley

1шт.

O10295AB

X

KEY - pump pulley

1шт.

A7089

SHIELD

BARREL - cylinder, power steering cylinder

1шт.

Part of Hydraulic Steering Cylinder Assembly P/N A4745AA

1шт.

A7090

OIL SEAL

SEAL - piston rod, power steering cylinder

1шт.

Part of Hydraulic Steering Cylinder Assembly P/N A4745AA

1шт.

A7091

COTTER PIN

KIT - bearing and seal assembly, power steering cylinderr

1шт.

Part of Hydraulic Steering Cylinder Assembly P/N A4745AA

1шт.

A12019

BUSHING

- for end yokes, power steering cylinder

4шт.

A12021

END - yoke, male w/2-A12019 bushing, power steering cylinder

1шт.

A12023

END - yoke, female w/2-A12019 bushing, power steering cylinder

1шт.

A12025

PIN - cylinder mounting, power steering cylinder

2шт.

5/32" x 1-1/4" cotter pin, power steering cylinder

4шт.

A12026

HOSE

- valve to cylinder, front, power steering cylinder

1шт.

A12027

HOSE - valve to cylinder, rear, power steering cylinder

1шт.

A4745AA

CYLINDER - hyd. steering, assembly, consists of: P/N's A7089, A7090, A7091, 08377AB, 010368AB, 010369AB, 010370AB, 010371AB, 010378AB, 010379AB, 010380AB and 03523CK, power steering cylinder

1шт.

3/8" street elbow, power steering cylinder

2шт.

O8377AB

X

"O" RING - piston rod, power steering cylinder

1шт.

Part of Hydraulic Steering Cylinder Assembly P/N A4745AA

1шт.

O10302AB

NUT - jam, female, yoke end, power steering cylinder

1шт.

O10305AB

CLAMP - hyd. steering cylinder hose, power steering cylinder

1шт.

3/16" x 1-1/4" fin. hex. bolt N.F. w/nut and lockwasher, power steering cylinder

1шт.

O10368AB

ROD - piston, power steering cylinder

1шт.

Part of Hydraulic Steering Cylinder Assembly P/N A4745AA

1шт.

O10369AB

PISTON - cylinder, power steering cylinder

1шт.

Part of Hydraulic Steering Cylinder Assembly P/N A4745AA

1шт.

O10370AB

RING

- piston, power steering cylinder

2шт.

Part of Hydraulic Steering Cylinder Assembly P/N A4745AA

1шт.

O10371AB

WASHER - piston rod, power steering cylinder

1шт.

Part of Hydraulic Steering Cylinder Assembly P/N A4745AA

1шт.

O10378AB

LOCK RING - bearing and seal, power steering cylinder

1шт.

Part of Hydraulic Steering Cylinder Assembly P/N A4745AA

1шт.

O10379AB

PLATE - cylinder end, power steering cylinder

1шт.

Part of Hydraulic Steering Cylinder Assembly P/N A4745AA

1шт.

1/4" x 5/8" rd. hd. mach. screw N.C. w/lockwasher, power steering cylinder

4шт.

O10380AB

CLAMP - assembly for cylinder end, power steering cylinder

1шт.

Part of Hydraulic Steering Cylinder Assembly P/N A4745AA

1шт.

O3523CK

X

"O" RING - bearing and seal, power steering cylinder

1шт.

Part of Hydraulic Steering Cylinder Assembly P/N A4745AA

1шт.
