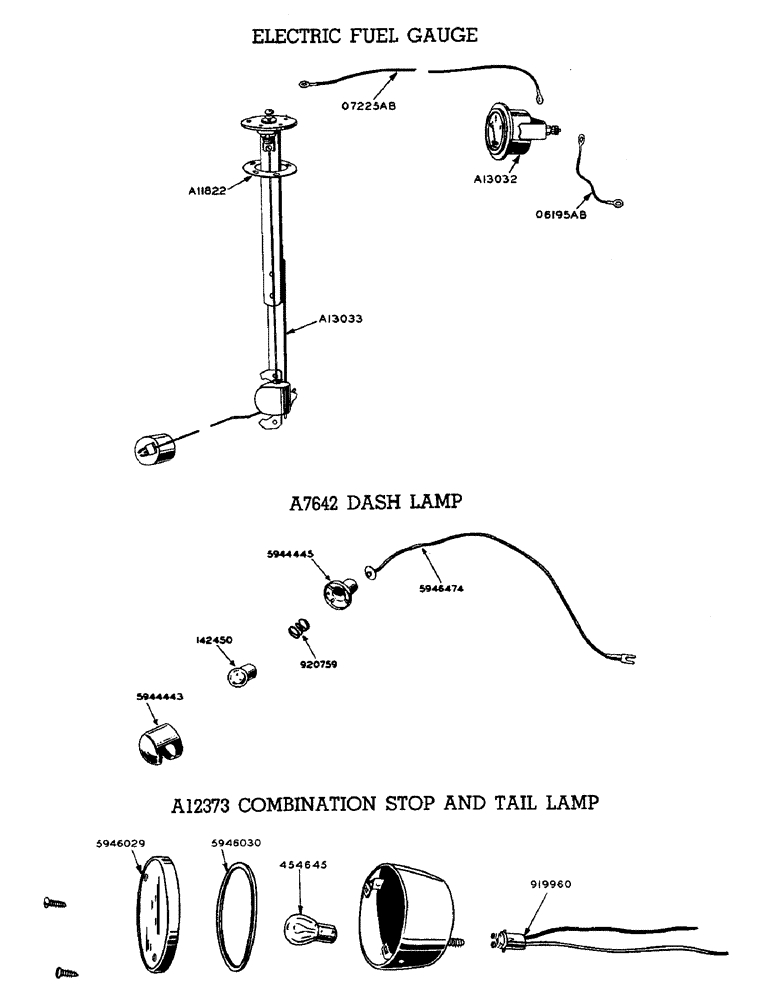

Запчасти Case W9 (066) - ELECTRIC FUEL GAUGE, A7642 DASH LAMP, A12373 COMBINATION (04) - ELECTRICAL SYSTEMS

A11822

GASKET

- fuel gauge sender

1шт.

A13032

GAUGE - electric fuel

1шт.

A13033

UNIT

SENDER - fuel gauge

1шт.

#10-32 x 7/16" rhd. mach. screw w/lockwasher

5шт.

O6195AB

WIRE - fuel, Serial Range: gauge-ammeter

1шт.

O7225AB

WIRE - sender to fuel gauge

1шт.

R11069

X

BULB - 3 C.P. - 12 volt (Mfg. #67), A7642 dash lamp

1шт.

B50262

SPRING, A7642 dash lamp

1шт.

B50319

COVER, A7642 dash lamp

1шт.

B50320

SOCKET, A7642 dash lamp

1шт.

B50332

WIRE ASSEMBLY, A7642 dash lamp

1шт.

B50260

PLUG & WIRE ASSEMBLY, A12373 combination stop and tail lamp

1шт.

R11078

LAMP

BULB - combination 32-4C P., 12-16 volt #1034, A12373 combination stop and tail lamp

1шт.

B50326

LENS - red plastic, A12373 combination stop and tail lamp

1шт.

B50327

GASKET, A12373 combination stop and tail lamp

1шт.
