(064) - HORN AND MOUNTING BRACKET

Запчасти Case W9 (064) - HORN AND MOUNTING BRACKET (04) - ELECTRICAL SYSTEMS

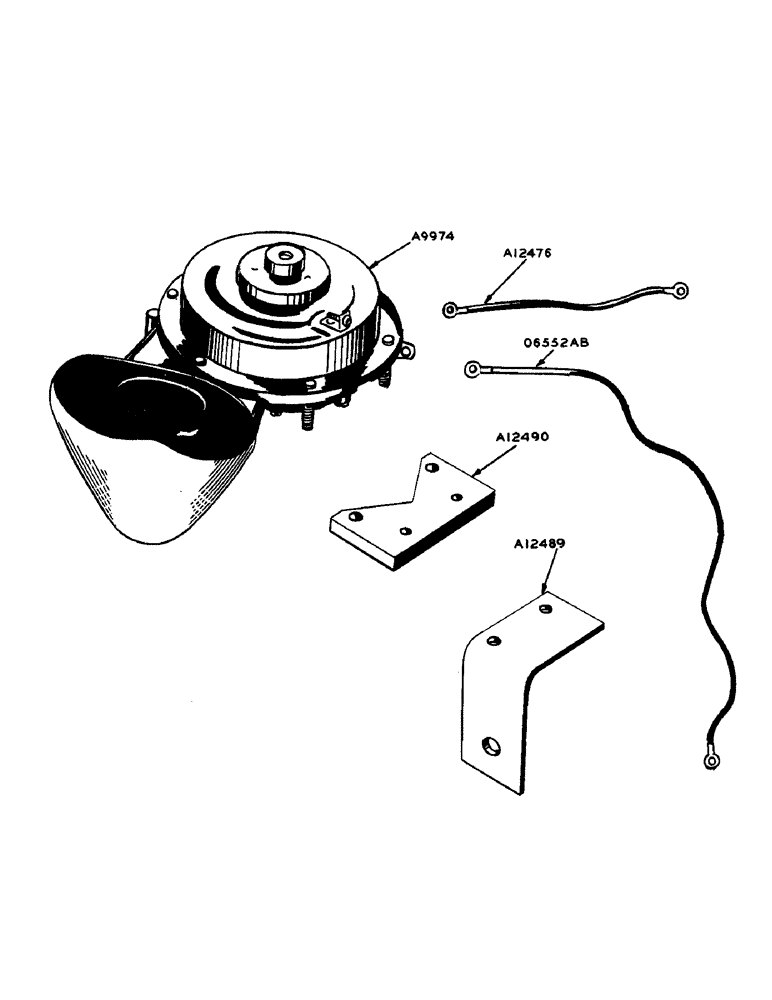

Схема запчастей Case W9 - (064) - HORN AND MOUNTING BRACKET (04) - ELECTRICAL SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A9974

HORN - vibrator 12 volt

1шт.

1/4" fin. hex. nut N.F. w/lockwasher

2шт.

A12476

WIRE - horn to steering column

1шт.

A12489

BRACKET - horn mounting

1шт.

3/8" x 1-1/4" fin. hex. bolt w/nut and lockwasher

1шт.

#10-32 x 3/4" rhd. mach. screw w/nut and 3/16" lockwasher

2шт.

A12490

BLOCK - horn mounting insulating

1шт.

O6552AB

WIRE -, Serial Range: horn-ammeter

1шт.
