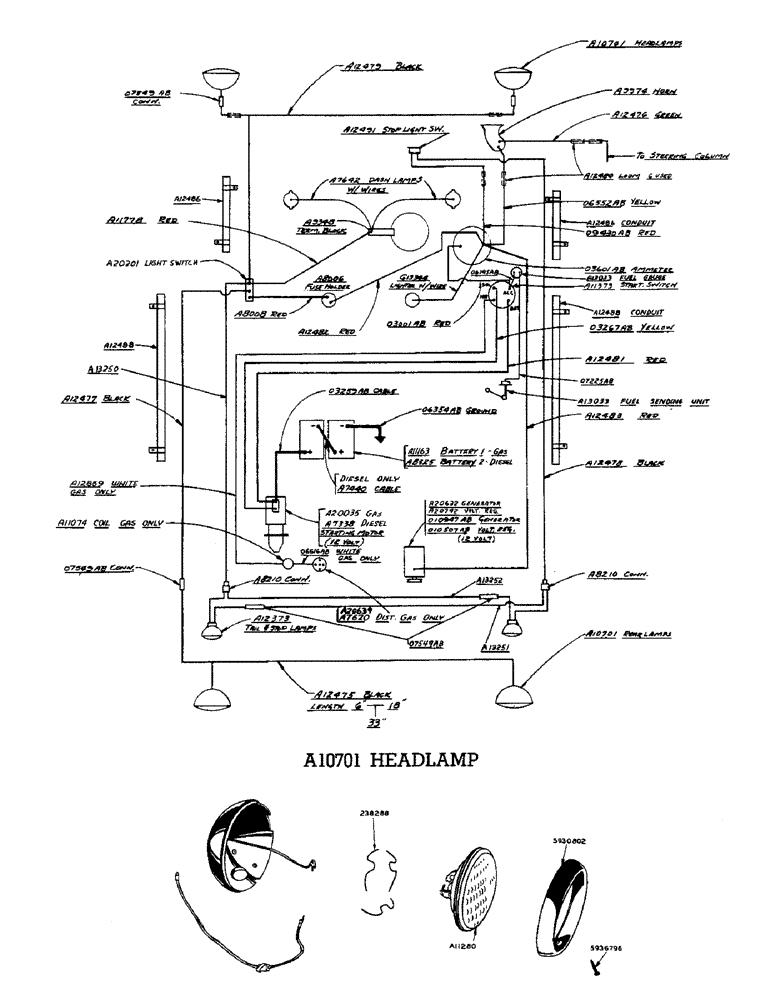

Запчасти Case W9 (062) - ELECTRICAL SYSTEM, A10701 HEADLAMP (04) - ELECTRICAL SYSTEMS

A8008

SWIVEL CONNECTION

WIRE - fuse to light switch

1шт.

A8210

CONNECTOR, ELEC

CONNECTOR - 3 wire, for stop & tail lights

2шт.

A10701

HEADLAMP - 12 volt, 2 used for front and 2 used for rear

4шт.

3/8" fin. hex. jam nut N.C. w/lockwasher and plain washer

4шт.

A12373

LAMP - combination stop and tail, 12 volt

2шт.

1/4" x 20 fin. hex. nut w/lockwasher

4шт.

A12458

SLEEVE

LOOM - rear lamp wire

2шт.

A12475

WIRE ASSEMBLY - connector to rear lamps

1шт.

A12477

WIRE - light switch to rear lamp connector

1шт.

A12479

WIRE - assembly, light switch to head lamp connector

1шт.

A12482

WIRE - ammeter to light fuse

1шт.

A12484

LOOM - 2-1/2" long for A12476, A12479, O6552AB and O9430AB

6шт.

A12486

CONDUIT - R.H. and L.H. side (Front)

2шт.

5/16" x 1" hex. bolt N.F. w/nut and lockwasher

4шт.

A12488

CONDUIT - R.H. and L.H. side

2шт.

5/16" x 1-1/4" hex. bolt N.F. w/nut and lockwasher

4шт.

A12491

SWITCH

- hydraulic stop light

1шт.

A13250

WIRE - light switch to tail lamp connector

1шт.

A13251

ELECTRICAL WIRE

WIRE - tail lamp connector to stop light connector

1шт.

A13252

ELECTRICAL WIRE

WIRE - tail lamp connector to light switch wire connector

1шт.

O4599AB

CLIP - rear lamp wire (Baffle plate inner bolt)

2шт.

O6361AB

CLIP - headlamp wire (Headlamp bracket bolt)

2шт.

O6552AB

WIRE -, Serial Range: ammeter-horn

1шт.

O7549AB

CONNECTOR - 2 wire

7шт.

O9430AB

WIRE - ammeter to stop light switch

1шт.

O9649AB

CLIP - stop and tail lamp wire (Lower baffle plate)

2шт.

A11280

LAMP

SEALED UNIT (12 volt, mfg. no. 4411), A10701 headlamp

1шт.

73767

GROUND CABLE

SPRING CLIP - retainer, A10701 headlamp

3шт.

B50284

MOULDING - sealed unit retainer, A10701 headlamp

1шт.

B50297

SCREW - moulding, A10701 headlamp

1шт.
