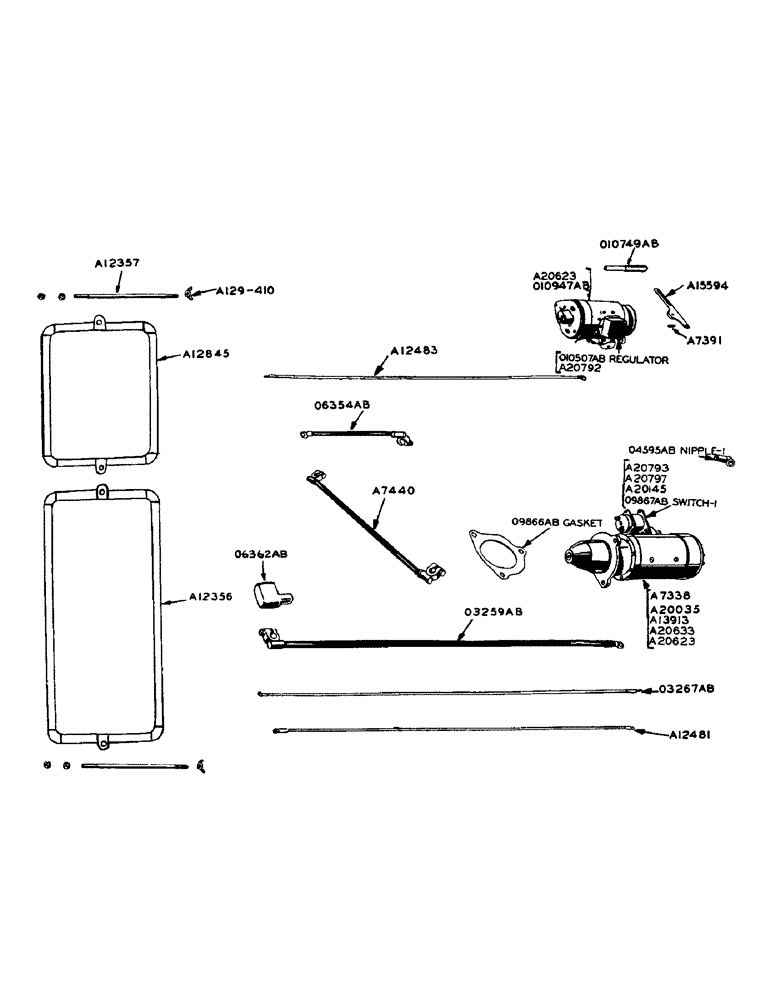

Запчасти Case W9 (060) - REGULATOR, GENERATOR, STARTER, BATTERY, GENERATOR AND REGULATOR (04) - ELECTRICAL SYSTEMS

A7391

STUD

STUD - generator belt adjusting strap

1шт.

*

3/8" N.F. light hex. nut w/lockwasher

1шт.

A12483

WIRE -, Serial Range: ammeter-generator

1шт.

A15594

SPARE PART STRAP - generator and hyd. steering pump adj

1шт.

*

5/16" x 5/8" fin. hex. bolt N.C.

1шт.

*

5/16" Shakeproof int. - ext. lockwasher #4018-24

1шт.

A20632

X

GENERATOR - Delco Remy no. 110369

1шт.

104450A1R

REMAN-GENERATOR

Remanufactured Generator, 12 volt 20 ampere

1шт.

104450A1C

CORE-GENERATOR

Return Number, Generator, 12 volt 20 ampere

1шт.

104017A1R

REMAN-GENERATOR

Generator, Reman For New P/N A20632

1шт.

104017A1C

CORE-GENERATOR

Return Number

1шт.

A20792

REGULATOR

REGULATOR - Delco Remy no. A20632

1шт.

12 volt for gas engine only.

1шт.

O10507AB

X

REGULATOR - voltage, Electric Auto-Lite #VRT4104A

1шт.

O10749AB

SPARE PART CARRIER - generator

1шт.

*

5/16" x 1" fin. hex. bolt N.C. w/lockwasher

2шт.

*

5/8" fin. hex. nut N.F. w/lockwasher

1шт.

O10947AB

SPARE PART GENERATOR - 12 volt (Electric Auto Lite no. GHH-6001-J) Can use A20632

1шт.

A7338

SPARE PART MOTOR - starting, 12 volt (Electric Auto-Lite #MCK4005) Diesel only, can use A20633, starter

1шт.

*

1/2" x 1-1/4" fin. hex. bolt w/lockwasher, starter

2шт.

*

1/2" x 2-3/4" fin. hex. bolt w/lockwasher, starter

1шт.

A11373

SWITCH

SWITCH - ignition & starter

1шт.

A13913

SPARE PART MOTOR - starting (Delco Remy) Heavy duty (Diesel only), starter

1шт.

A20035

SPARE PART MOTOR - starting 12 volt (Gasoline only) Electric Auto Lite #MDL-6015 (Can use A20623), starter

1шт.

*

1/2" x 1-1/4" fin. hex. bolt N.C. w/lockwasher, starter

2шт.

*

1/2" x 2-3/4" fin. hex. bolt N.C. w/lockwasher, starter

1шт.

A20145

X

SOLENOID - starting motor (Electric Auto Lite no. SAE4005) (Gasoline only) (See A20797), starter

1шт.

A20623

SPARE PART MOTOR - starting (Delco Remy 1107750) (Gasoline only),starter

1шт.

A20633

STARTER MOTOR

MOTOR - starting (Delco Remy 1113111) Standard only (Diesel only), starter

1шт.

AR20633

REMAN-STARTER

Remanufactured Starter

1шт.

AC20633

CORE-STARTER

Return Number

1шт.

A20793

X

SWITCH - solenoid for A20633 starter (Delco Remy no. 119833), starter

1шт.

A20797

SPARE PART SWITCH - solenoid for A20623 starter (Delco Remy no. DR1467), starter

1шт.

O3267AB

WIRE - starting switch to starting motor ground, starter

1шт.

A21753

CAP

NIPPLE - starting cable terminal, starter

1шт.

O9866AB

X

GASKET - starting motor, starter

1шт.

O9867AB

X

SOLENOID - starting motor (Electric Auto Lite no. WSM4101A) (Diesel only) (See A20793), starter

1шт.

A129-410

WING NUT - N.C. 3/8" zinc plated battery hold down

2шт.

A7440

CABLE

CABLE - battery to battery (Diesel only), battery and hold down

1шт.

A8325

SPARE PART BATTERY - dry charged, Exide US-4H replacement not furnished by J.I. Case Company (Diesel only), battery and hold down

2шт.

A11163

X

BATTERY - dry charged, Exide #SS-3SM replacement not furnished by J.I. Case Company (Gasoline only), battery and holddown

1шт.

A12356

FRAME - battery hold down (Diesel only) (See A12845)

1шт.

A12357

STUD

BOLT - battery hold down

2шт.

*

3/8" fin. hex. nut N.F., battery and holddown

4шт.

*

3/8" SAE std. lockwasher and plain washer, battery and holddown

2шт.

A12845

FRAME - battery hold down (Gasoline only) (See A12356)

1шт.

O3259AB

SPARE PART CABLE - starting motor to battery, battery and holddown

1шт.

O6354AB

X

CABLE - battery to battery ground, battery and holddown

1шт.

*

O6362AB

X

COVER - positive terminal (2 diesel - 1 gasoline), battery and holddown

2шт.
