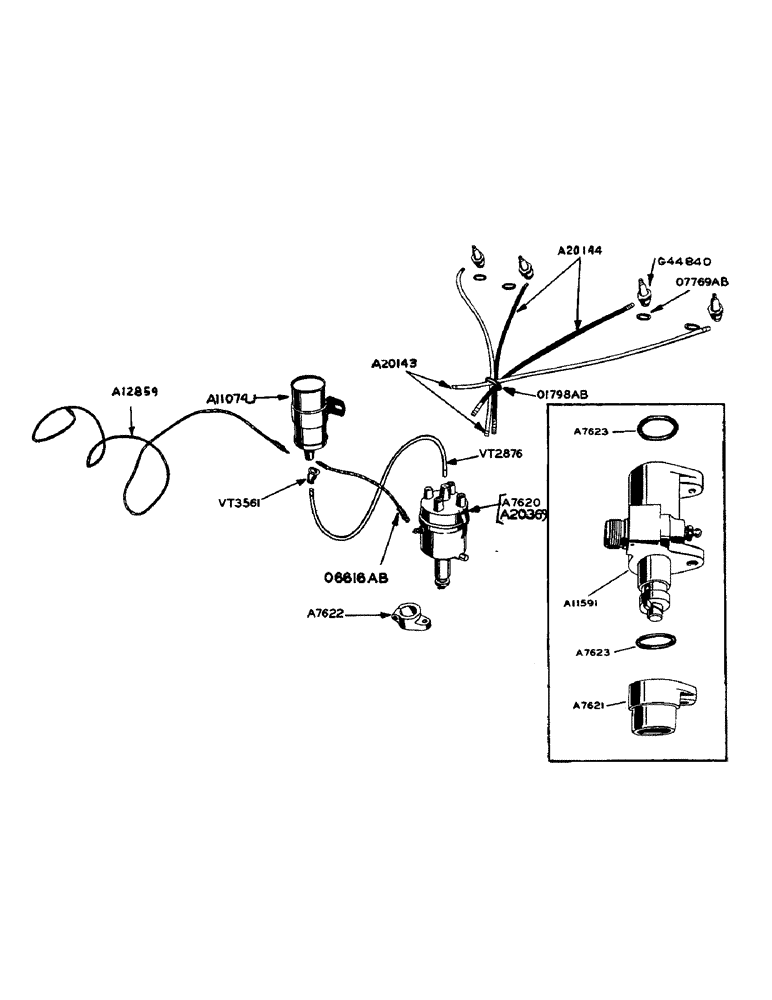

Запчасти Case W9 (052) - GASOLINE ENGINE, DISTRIBUTOR IGNITION AND TACHOMETER DRIVE (04) - ELECTRICAL SYSTEMS

A7620

DISTRIBUTOR (Electric Auto-Lite no. IAD6003-1B) Can use A20639

1шт.

A7621

INSERT - distributor support

1шт.

A7622

CLAMP - distributor

1шт.

5/16" x 1" N.C. hex. bolt w/lockwasher

1шт.

5/16" x 1-1/4" N.C. hex. bolt w/lockwasher

1шт.

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - tachometer

2шт.

A11074

COIL

- ignition (12 volt)

1шт.

5/16" x 5/8" N.C. rhd. mach. screw

2шт.

5/16" Shakeproof external - internal lockwasher #4018-24

2шт.

A11591

DRIVE - tachometer

1шт.

A12859

WIRE - ignition, Serial Range: switch-coil

1шт.

A20143

ELECTRICAL WIRE

WIRE - spark plug, to no. 1 and no. 4 cyl. (15" long)

2шт.

A20144

ELECTRICAL WIRE

WIRE - spark plug, to no. 2 and no. 3 cyl. (11" long)

2шт.

A20639

DISTRIBUTOR (WICO no. X30169)

1шт.

G44840

SPARK PLUG

PLUG - spark, 18MM, Champion #8 commerical (Included gasket)

4шт.

O6019A

HANDLE - spark plug wrench

1шт.

O1798AB

RING - ignition cable

1шт.

O6616AB

WIRE -, Serial Range: coil-distributor

1шт.

O7421AB

WRENCH - spark plug

1шт.

O7769AB

X

GASKET - spark plug

4шт.

VT2876

X

WIRE - ignition, distributor to coil (12" long)

1шт.

VT3561

X

NIPPLE - distributor, coil and spark plug wires

6шт.
