Запчасти Case W9 (050) - GASOLINE ENGINE, FUEL TANK, O1933AB FUEL STRAINER (03) - FUEL SYSTEM

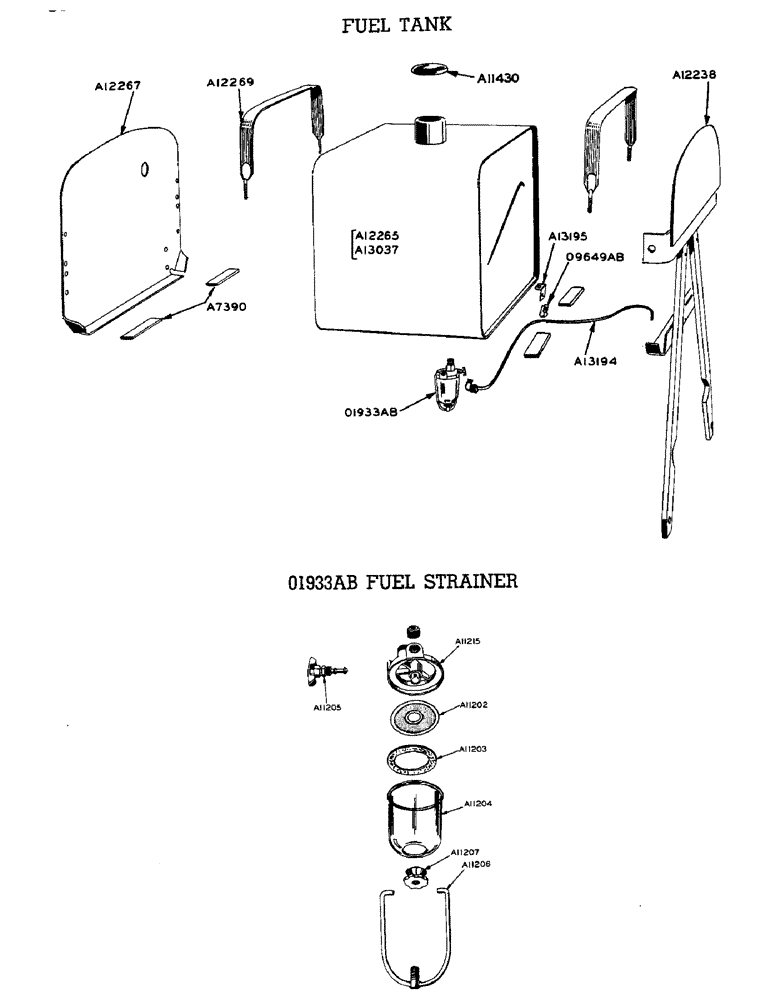

Схема запчастей Case W9 - (050) - GASOLINE ENGINE, FUEL TANK, O1933AB FUEL STRAINER (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

A7390

CUSHION - fuel tank mounting

4шт.

A11430

CAP - fuel tank filler

1шт.

A12238

SUPPORT - side plate and fuel tank front

1шт.

1/2" x 1-1/2" fin. hex. bolt N.F. w/nut and lockwasher

2шт.

5/8" x 1-3/4" fin. hex. bolt N.F. w/nut and lockwasher

2шт.

A12265

TANK - fuel w/out fuel sender gauge (See A13037)

1шт.

A12267

PLATE - fuel tank mounting

1шт.

3/8" x 1" fin. hex. bolt N.F. w/nut and lockwasher

6шт.

A12269

STRAP - fuel tank hold down, w/bolt

2шт.

3/8" fin. hex. nut N.F. w/lockwasher and plain washer

4шт.

A13037

TANK - fuel, for fuel sender gauge attachment (See A12265)

1шт.

A13194

TUBE - fuel strainer to carb. 5/16" w/2-60FL sleeves & 2-61FL nuts

1шт.

5/16" x 1/8" Imperial elbow #69FL

2шт.

A13195

STRAP - fuel tube support

1шт.

O1933AB

X

STRAINER - fuel

1шт.

O9649AB

CLIP - fuel tube

1шт.

1/4" x 5/8" rhd. mach. screw N.C. w/nut and lockwasher

1шт.

A11202

SCREEN

ASSEMBLY, O1933AB fuel strainer

1шт.

A11203

GASKET

- cork, O1933AB fuel strainer

1шт.

A11204

BOWL

- glass, O1933AB fuel strainer

1шт.

A11205

VALVE

- needle, assembly, O1933AB fuel strainer

1шт.

A11206

BAIL

ASSEMBLY, O1933AB fuel strainer

1шт.

A11207

NUT

CUP AND NUT - assembly, O1933AB fuel strainer

1шт.

A11215

BODY

- strainer, O1933AB fuel strainer

1шт.

1/8" socket hd. pipe plug, O1933AB fuel strainer

1шт.

Выбрано товаров: 25
