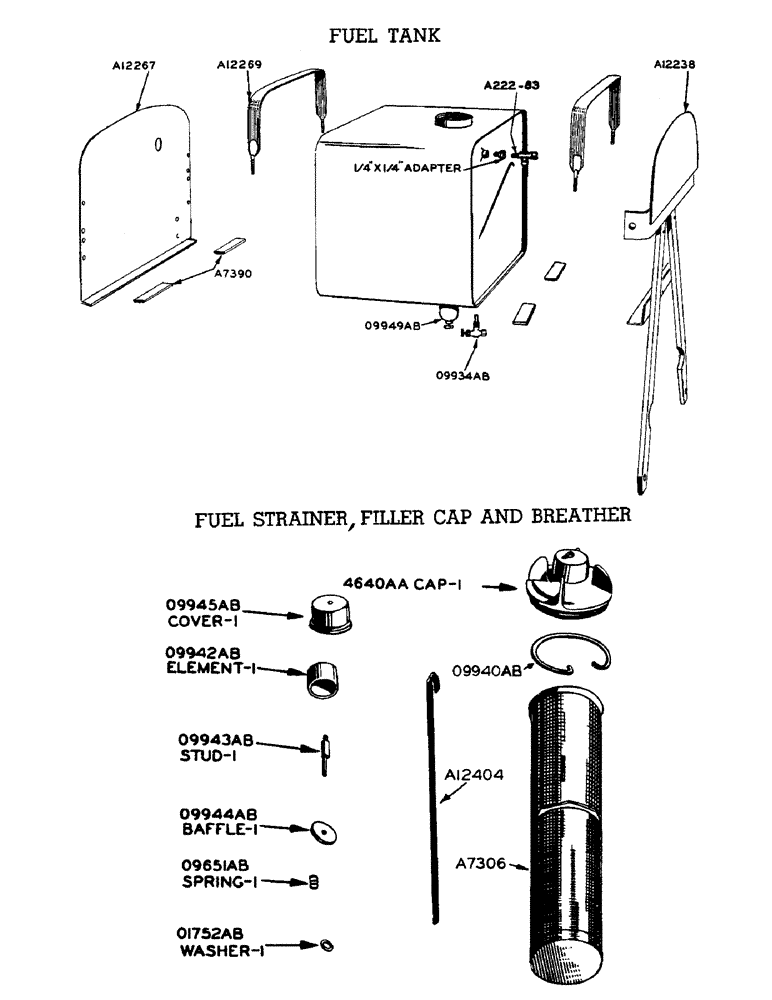

Запчасти Case W9 (030) - DIESEL ENGINE, FUEL TANK, FILLER CAP AND BREATHER FOR FUEL (03) - FUEL SYSTEM

A7390

CUSHION - fuel tank mounting

4шт.

A12238

SUPPORT - side plate and fuel tank front

1шт.

1/2" x 1-1/2" fin. hex. bolt N.F. w/nut and lockwasher

2шт.

5/8" x 1-3/4" fin. hex. bolt N.F. w/nut and lockwasher

2шт.

A12260

TANK - fuel w/out sender gauge (See A13035)

1шт.

1/4" x 1/8" P.T. Imperial flex tee #76FL

1шт.

A12267

PLATE - fuel tank mounting

1шт.

3/8" x 1" fin. hex. bolt N.F. w/nut and lockwasher

6шт.

A12269

STRAP - fuel tank hold down, w/bolts

2шт.

3/8" fin. hex. nut N.F. w/lockwasher and plain washer

4шт.

A13035

X

TANK - fuel, for fuel sender gauge attachment (See A12260)

1шт.

1/4" x 1/4" P.T. extension adapter

1шт.

O9934AB

X

VALVE - fuel tank needle (3/8" tube x 3/8" P.T.)

1шт.

O9949AB

X

VALVE - fuel tank water drain

1шт.

6342A

X

CAP - (Use 4640AA), filler cap and breather for fuel tank

1шт.

4640AA

X

CAP - fuel tank filler, with breather, filler cap and breather for fuel tank

1шт.

O1752AB

X

WASHER - fuel tank breather baffle retaining spring, filler cap and breather for fuel tank

1шт.

O9651AB

X

SPRING - retaining, fuel tank breather baffle, filler cap and breather for fuel tank

1шт.

O9942AB

X

ELEMENT - fuel tank breather, filler cap and breather for fuel tank

1шт.

O9943AB

X

STUD - fuel tank breather, filler cap and breather for fuel tank

1шт.

No. 10 - 32 N.F. hex. nut and lockwasher, filler cap and breather for fuel tank

1шт.

1/16" x 1/2" cotter pin, filler cap and breather for fuel tank

1шт.

O9944AB

X

BAFFLE - fuel tank breather, filler cap and breather for fuel tank

1шт.

O9945AB

X

COVER - fuel tank breather, filler cap and breather for fuel tank

1шт.

A7306

STRAINER - fuel

1шт.

A12404

GAUGE - bayonet, fuel oil (Without dash gauge), fuel strainer

1шт.

6360A

NECK - fuel strainer (Use A7306)

1шт.

O9940AB

RING - fuel strainer retaining

1шт.
