Запчасти Case W9 (028) - DIESEL ENGINE, FIRST AND SECOND STAGE FUEL FILTERS AND TUBES SN. 8143693 & AFTER (03) - FUEL SYSTEM

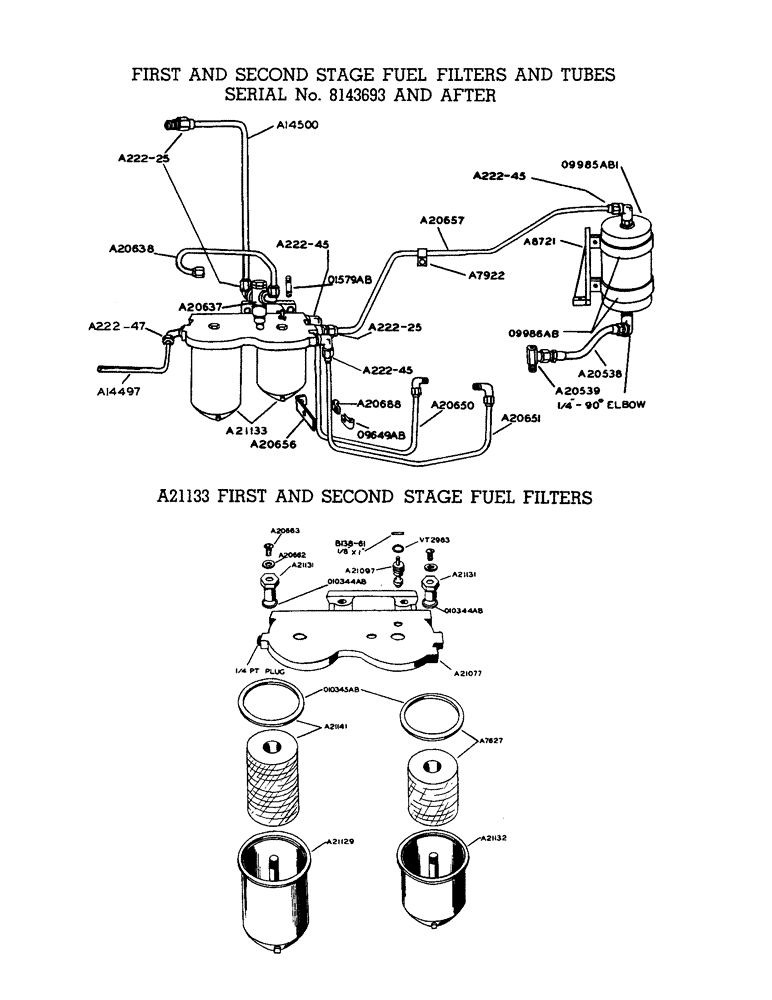

Схема запчастей Case W9 - (028) - DIESEL ENGINE, FIRST AND SECOND STAGE FUEL FILTERS AND TUBES SN. 8143693 & AFTER (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

A222-25

CONNECTOR - flex (5/16" x 1/4" P.T.) A14500 to tank and, Serial Range: A20657-filter

2шт.

A222-42

ELBOW - flex (1/4" x 1/8" P.T.) A20638 to relief valve

1шт.

A222-45

ELBOW - flex (5/16" x 1/4" P.T.) A14500 to relief valve, A20651 to second stage filter and A20657 to third stage filter

4шт.

A222-47

ELBOW - flex (3/8" x 1/4" P.T.) A20650 both ends and A14497 to first stage filter

3шт.

A7922

CLIP

- for A20657 tube

1шт.

A14497

TUBE - fuel tank to first stage filter

1шт.

A14500

TUBE - relief, Serial Range: valve-tank

1шт.

A20637

LOCK VALVE

VALVE - relief

1шт.

A20638

TUBE - leak-off from #4 nozzle to relief valve

1шт.

A20650

TUBE

- first stage filter to fuel pump

1шт.

A20651

TUBE

- fuel pump to second stage filter

1шт.

A20656

BRACKET - first and second stage filter tube clip

1шт.

5/16" x 3/4" N.C. hex. bolt w/lockwasher

1шт.

A20657

TUBE - second stage filter to final stage filter

1шт.

A20688

CLIP

- for A20650 tube

1шт.

1/4" x 3/4" N.C. rhd. mach. screw w/hex. nut and lockwasher

1шт.

A21133

FILTER

- fuel, first and second stage (Assembly)

1шт.

O1579AB

STUD - filter head to cylinder block

2шт.

3/8" N.F. hex. nut w/lockwasher

2шт.

O9649AB

CLIP - for A20651 tube

1шт.

A8721

BRACKET - final stage filter and tubes

1шт.

7/16" x 2" N.C. hex. bolt w/lockwasher, final stage filter and tubes

2шт.

A20538

FUEL HOSE,0.38" ID x 8.50"

Final stage filter to fuel pump, final stage filter and tubes 0.38" ID x 8.50"

1шт.

A20539

FITTING

UNION - 90 degree adapter, A20538 to fuel pump, final stage filter and tubes

1шт.

O9985AB1

FILTER - fuel, final stage filter and tubes

1шт.

O9986AB

CLAMP - final stage filter and tubes

2шт.

5/16" x 1/2" N.C. hex. bolt w/plain washer, final stage filter and tubes

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut, final stage filter and tubes

3шт.

1/4" x 1-1/2" N.C. rhd. mach. screw w/hex. nut, final stage filter and tubes

2шт.

A222-102

SLEEVE (1/4") - #60FL for A20638 tube, sleeves and nuts for fuel tubes

1шт.

A222-103

SLEEVE (5/16") - #60FL for A20651, A14500 AND A20657 tubes, sleeves and nuts for fuel tubes

1шт.

A222-104

SLEEVE (3/8") - #60FL for A20650 and A14497 tubes, sleeves and nuts for fuel tubes

1шт.

A222-112

NUT (1/4") - #61FL for A20638 tube, sleeves and nuts for fuel tubes

1шт.

A222-113

NUT (5/16") - #61FL for A20651, A14500 and A20657 tubes, sleeves and nuts for fuel tubes

1шт.

A222-114

NUT (3/8") - #61FL for A20650 and A14497 tubes, sleeves and nuts for fuel tubes

1шт.

A7627

FILTER, ELEMENT

ELEMENT - second stage filter (Includes O10345AB gasket), parts for A21133 first and second stage fuel filters

1шт.

A20662

GASKET

- bleed screw, on 1st and 2nd stage filter head, parts for A21133 first and second stage fuel filters

2шт.

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- Fillister head bleed, 1st and 2nd stage filter head, parts for A21133 first and second stage fuel filters

2шт.

A21077

FILTER HEAD

HEAD - first and second stage filter, parts for A21133 first and second stage fuel filters

1шт.

1/8" sq. hd. pipe plug, parts for A21133 first and second stage fuel filters

1шт.

A21097

VALVE - fuel filter by-pass, parts for A21133 first and second stage fuel filters

1шт.

A21129

BODY

- first stage filter, parts for A21133 first and second stage fuel filters

1шт.

A21131

NUT

- first and second stage filter body, parts for A21133 first and second stage fuel filters

2шт.

A21132

BODY

- second stage filter, parts for A21133 first and second stage fuel filters

1шт.

A21141

FILTER, ELEMENT

ELEMENT - first stage filter (Includes O10345AB gasket), parts for A21133 first and second stage fuel filters

1шт.

O10344AB

X

GASKET - body nut to head, parts for A21133 first and second stage fuel filters

2шт.

O10345AB

X

GASKET - first and second stage filter body, parts for A21133 first and second stage fuel filters

2шт.

B138-61

ROLL PIN - 1/8" x 1", parts for A21133 first and second stage fuel filters

1шт.

VT2983

X

"O" RING - by-pass valve, parts for A21133 first and second stage fuel filters

1шт.

Выбрано товаров: 49
