Запчасти Case W9 (026) - DIESEL ENGINE, FUEL INJECTOR NOZZLE AND TUBES SERIAL NO. 8143693 & AFTER (03) - FUEL SYSTEM

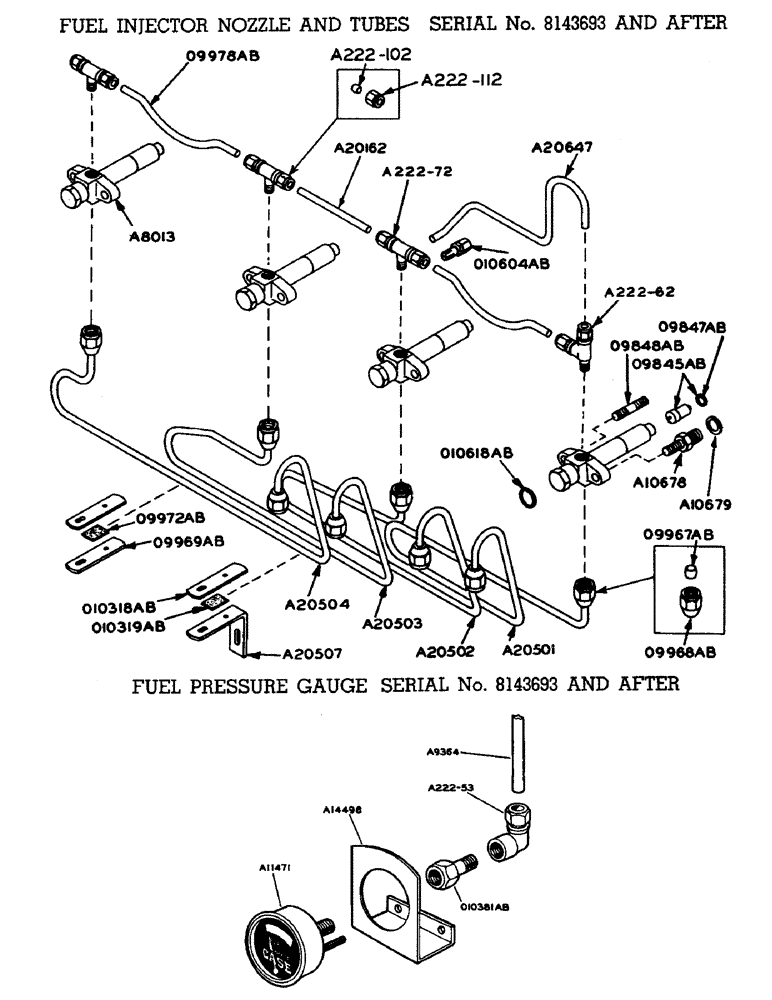

Схема запчастей Case W9 - (026) - DIESEL ENGINE, FUEL INJECTOR NOZZLE AND TUBES SERIAL NO. 8143693 & AFTER (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

A222-62

Flex tee (1/4" x 1/8" P.T.) O9978AB to no. 1 nozzle

1шт.

A222-72

Flex tee (1/4" x 1/8" P.T.) 2 used on A20162 and O9978AB to no. 4 nozzle

3шт.

A8013

NOZZLE INJECTION

NOZZLE - injector, with holder and gasket

4шт.

A10678

STUD

- nozzle holder, large

4шт.

3/8" N.F. hex. nut

4шт.

A10679

GASKET

- injector nozzle holder stud

4шт.

A20162

TUBE

- injector leak-off, upper

1шт.

Imperial flex. tee #72FL (1/4" tube x 1/8" P.T.)

2шт.

A20501

TUBE

- fuel injector, with sleeves and nuts, for no. 1 cyl.

1шт.

A20502

TUBE

- fuel injector, with sleeves and nuts, for no. 2 cyl.

1шт.

A20503

TUBE

- fuel injector, with sleeves and nuts, for no. 3 cyl.

1шт.

A20504

TUBE

- fuel injector, with sleeves and nuts, for no. 4 cyl.

1шт.

A20507

CLAMP - injector tubes (Clamps 4 tubes)

1шт.

5/16" x 3/4" N.C. hex. bolt w/Shakeproof ext.-int. lockwasher

1шт.

A20647

TUBE - fuel pump leak-off to #1 injector

1шт.

O9745AB

X

NOZZLE - injector, with O9847AB gasket

4шт.

O9847AB

X

GASKET - injector nozzle

4шт.

O9848AB

X

STUD - nozzle holder, small

4шт.

3/8" N.F. hex. nut

4шт.

O9967AB

X

SLEEVE - injector tube coupling

8шт.

O9968AB

NUT - injector tube

8шт.

O9969AB

X

CLAMP - injector tubes (Clamps 3 tubes)

2шт.

No. 10 x 1" N.C. rhd. mach. screw w/hex. nut and lockwasher

2шт.

O9972AB

X

CUSHION - between O9969AB clamps and injector tubes

2шт.

O9978AB

X

TUBE - injector leak-off, lower

2шт.

O10318AB

X

CLAMP - injector tubes (Clamps 4 tubes)

1шт.

No. 10 x 1" N.C. rhd. mach. screw w/hex. nut and lockwasher

2шт.

O10319AB

X

CUSHION - between A20507 and O10318AB clamps and injector tubes

2шт.

O10604AB

X

CONNECTION - fuel pump leak-off check valve

1шт.

O10618AB

X

GASKET - for injector pressure adjusting screw protective cap

4шт.

A222-102

Imperial brass no. 60FL sleeve for 1/4" tubing, for A11912, A20162 and O9978AB tubes, sleeves and nuts for fuel tubes

1шт.

A222-112

Imperial brass no. 61FL nut for 1/4" tubing for A11912, A20162 and O9978AB tubes, sleeves and nuts for fuel tubes

1шт.

A222-53

ELBOW - Imperial flex. #70FL (1/8" tube x 1/8" P.T.) Tube to gauge, fuel pressure gauge serial no. 8143693 and after

1шт.

A9364

TUBE

- fuel oil pressure gauge, fuel pressure gauge serial no. 8143693 and after

1шт.

A11471

X

GAUGE - fuel oil pressure, fuel pressure gauge serial no. 8143693 and after

1шт.

A14498

X

SUPPORT - fuel pressure gauge serial no. 8143693 and after

1шт.

3/8" x 5/8" N.C. hex. bolt w/lockwasher, fuel pressure gauge serial no. 8143693 and after

2шт.

O10381AB

SNUBBER - fuel oil gauge, fuel pressure gauge serial no. 8143693 and after

1шт.

Выбрано товаров: 38
