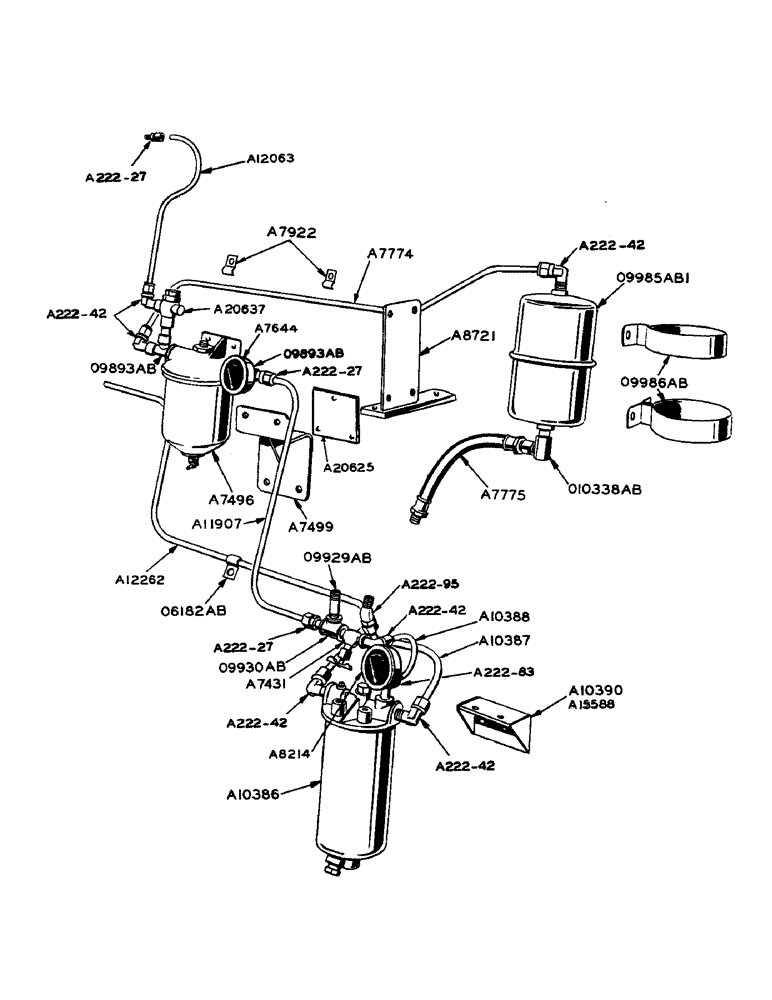

Запчасти Case W9 (020) - DIESEL ENG., FUEL FILTERS & TUBES PRIOR TO SN. 8143693, 1ST STAGE FILTER & TUBES PRIOR TO SN.8143693 (03) - FUEL SYSTEM

A222-42

ELBOW - 69FL flex (3/8" x 1/4" tube) A10387 at filter, A10388 to A7431 valve and A12262 at filter

3шт.

A222-82

TEE - 76FL (1/4" tube x 1/8") A10386 to vacuum gauge

1шт.

A222-95

ELBOW (45 degrees) 94FL flex (3/8" tube x 1/4") A10387, Serial Range: tube-pump

1шт.

A7431

VALVE

- needle (A10386 filter)

1шт.

A8214

GAUGE

- vacuum

1шт.

1/8" brass street elbow

1шт.

A10386

SPARE PART

FILTER - first stage fuel

1шт.

1/4" x 3/4" N.C. hex. bolt w/lockwasher

1шт.

A10387

TUBE

- first stage filter to fuel pump

1шт.

A10388

TUBE

- first stage filter bleeder by-pass

1шт.

A10390

BRACKET

- for A10386 first stage filter

1шт.

3/8" x 7/8" N.C. hex. bolt w/lockwasher

2шт.

A12262

TUBE - fuel tank to A10286 filter

1шт.

A15588

BRACKET - for A10386 filter

1шт.

O6182AB

CLIP - for tube from fuel tank to first stage filter

1шт.

O9929AB

X

NIPPLE - brass pipe, connects O9930AB tee to fuel pump (1/4" x 1-1/2")

1шт.

O9930AB

X

TEE - 1/4" brass female, for fuel pump

1шт.

A222-27

CONNECTOR - 68FL (5/16" tube x 1/4") A12063 to tank tee and both ends of A11907 tube, second stage filter and tubes

3шт.

A222-42

ELBOW - 69FL (5/16" tube x 1/4") A12063 to O9749AB and both ends of A7774 tube, second stage filter and tubes

3шт.

A7496

HEAD

FILTER - second stage fuel, second stage filter and tubes

1шт.

3/8" x 1" hex. bolt w/hex. nut and lockwasher, second stage filter and tubes

2шт.

A7499

BRACKET - second stage filter and tubes

1шт.

5/16" x 3/4" N.C. hex. bolt w/lockwasher, second stage filter and tubes

2шт.

A7644

GAUGE

- fuel oil pressure, second stage filter and tubes

1шт.

A7774

TUBE - second stage to final stage filter (5/16"), second stage filter and tubes

1шт.

A7922

CLIP

- for A7774 tube, second stage filter and tubes

2шт.

A11907

TUBE - fuel pump to second stage filter, second stage filter and tubes

1шт.

A12063

TUBE - relief valve to fuel tank (5/16"), second stage filter and tubes

1шт.

A20625

SUPPORT - for A7499 filter bracket, second stage filter and tubes

1шт.

3/8" x 1-3/8" hex. bolt N.F. w/nut and lockwasher, second stage filter and tubes

2шт.

A20626

STUD - for A20625 support (Not illustrated), second stage filter and tubes

1шт.

3/8" N.F. hex. nuts, second stage filter and tubes

2шт.

A20637B

VALVE - relief (American Bosch #VA7928A), second stage filter and tubes

1шт.

O9893AB

TEE - second stage filter (1/8"), second stage filter and tubes

2шт.

1/4" x 1/8" brass reducing bushing

1шт.

A7775

FUEL HOSE,0.38" ID x 9.25"

Final Stage Filter To Fuel Pump, Third Stage Fuel Filters And Tubes 0.38" ID x 9.25"

1шт.

A8721

BRACKET - final stage filter, third stage fuel filters and tubes

1шт.

7/16" x 2" N.C. hex. bolt w/lockwasher, third stage fuel filters and tubes

2шт.

O9985AB1

FILTER - final stage fuel, third stage fuel filters and tubes

1шт.

O9986AB

CLAMP - final stage filter, third stage fuel filters and tubes

2шт.

5/16" x 1/2" N.C. hex. bolt w/plain washer, third stage fuel filters and tubes

1шт.

5/16" x 3/4" N.C. hex. bolt w/hex. nut, third stage fuel filters and tubes

3шт.

1/4" x 1-1/2" N.C. rhd. mach. screw w/hex. nut, third stage fuel filters and tubes

2шт.

O10338AB

UNION

- 90 degree adapter, connects A7775 hose to final stage filter, third stage fuel filters and tubes

1шт.

A222-103

SLEEVE - #60Fl (5/16") For A12063, A11907 and O9749AB tubes, sleeves and nuts for fuel tubes

1шт.

A222-104

SLEEVE - #60FL (3/8") For A10387, A10388 and A12262 tubes, sleeves and nuts for fuel tubes

1шт.

A222-113

NUT - #61FL (5/16") For A12063, A11907 and O9749AB tubes, sleeves and nuts for fuel tubes

1шт.

A222-114

NUT - #61FL (3/8") For A10387, A10388 and A12262 tubes, sleeves and nuts for fuel tubes

1шт.
