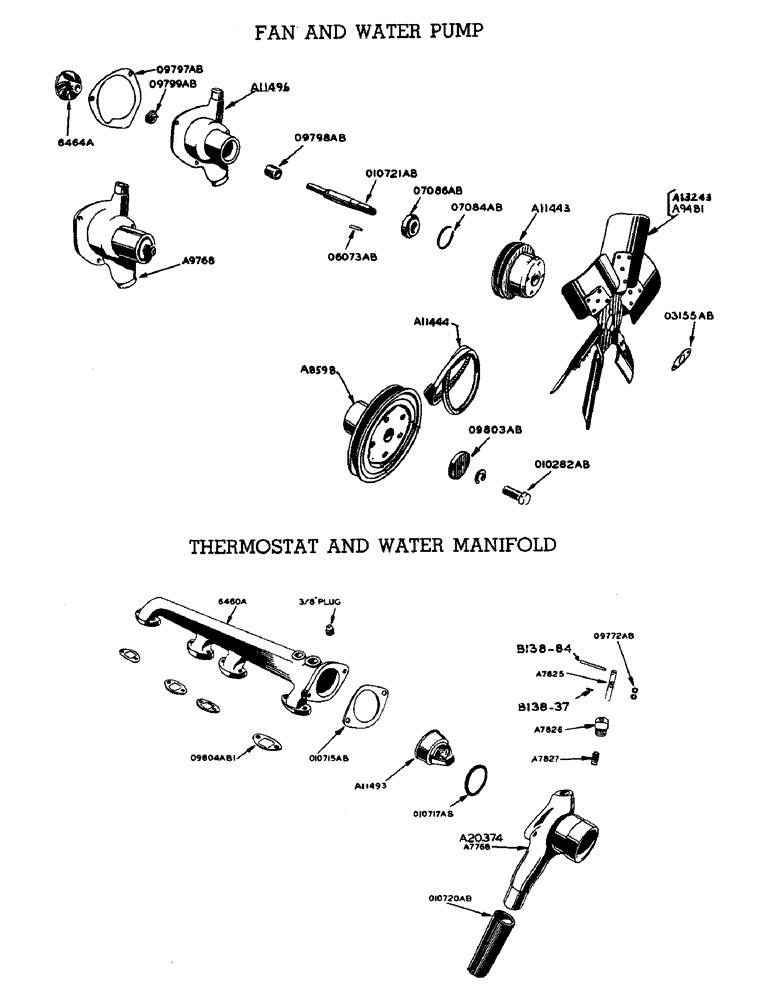

Запчасти Case W9 (070) - FAN AND WATER PUMP, THERMOSTAT AND WATER MANIFOLD (02) - ENGINE

A8598

PULLEY - fan drive on crankshaft

1шт.

A9481

FAN

- blade assembly 17" suction type (See A13243 and O9801AB)

1шт.

3/8" x 3/4" hex. bolt N.C. w/lockwasher

4шт.

A9768

PUMP

WATER PUMP ASSEMBLY - less fan blades, A11443 pulley and O6073AB key

1шт.

3/8" x 1/4" hex. bolt N.C. w/lockwasher

3шт.

A11443

PULLEY - fan and water pump

1шт.

A11444

BELT,0.53" W x 50.50" L

Fan and Generator 0.53" W x 50.50" L

1шт.

A11495

BODY - water pump (Use A11496)

1шт.

A11496

BODY

- water pump, with O9798AB bushing

1шт.

A13243

FAN - blade assembly - pusher type, 17" (See A20707)

1шт.

3/8" x 3/4" hex. bolt N.C. w/lockwasher

4шт.

A20707

FAN - assembly - (Pusher type) Use with 22" width radiator

1шт.

A21726

REPAIR KIT

KIT - water pump repair (Includes 1 each 6464A, O3155AB, O6073AB, O7084AB, O7086AB, O9797AB, O9799AB and O10721AB)

1шт.

6464A

X

IMPELLER - water pump

1шт.

O3155AB

X

LOCK - water pump shaft nut

1шт.

O6073AB

X

KEY - water pump and fan shaft

1шт.

O7084AB

X

SNAP RING - bearing retainer

1шт.

O7086AB

X

BEARING - water pump and fan shaft (New Departure no. 8604)

1шт.

O9797AB

GASKET

- water pump body

1шт.

O9798AB

X

BUSHING - water pump body

1шт.

O9799AB

SEAL - water pump

1шт.

O9801AB

FAN - assembly (Suction type) Use with 22" width radiator

1шт.

O9803AB

X

WASHER - lower fan drive pulley

1шт.

O10282AB

X

CAP SCREW - lower fan drive pulley, Serial Range: washer-crankshaft

1шт.

5/8" std. lockwasher

1шт.

O10721AB

SHAFT

- water pump and fan

1шт.

5/8" N.F. hex. jam nut

1шт.

A7768

HOUSING - thermostat w/bleed valve hole (See A20374), thermostat and water manifold

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher, thermostat and water manifold

2шт.

A7825

STEM - thermostat bleed valve, for A7768, thermostat and water manifold

1шт.

A7826

SLEEVE - thermostat bleed valve stem, for A7768, thermostat and water manifold

1шт.

A7827

SPRING

- thermostat bleed valve, for A7768, thermostat and water manifold

1шт.

A11493

THERMOSTAT

- 190 degrees to 202 degrees, thermostat and water manifold

1шт.

A20374

HOUSING

- thermostat w/out bleed valve (See A7768), thermostat and water manifold

1шт.

B138-84

ROLL PIN (5/32 x 1-7/8") - for A7825 stem, thermostat and water manifold

1шт.

B138-37

ROLL PIN (3/32 x 1/2") - for A7825 stem, thermostat and water manifold

1шт.

6460A

MANIFOLD - water, thermostat and water manifold

1шт.

5/16" x 1-1/8" N.C. hex. bolt w/lockwasher, thermostat and water manifold

8шт.

3/8" sq. hd. pipe plug, thermostat and water manifold

1шт.

O9772AB

X

"O" RING - thermostat bleed valve, thermostat and water manifold

2шт.

O9804AB1

X

GASKET - water manifold, and thermostat

4шт.

O10715AB

X

GASKET - thermostat housing, thermostat and water manifold

1шт.

O10717AB

X

GASKET - thermostat and water manifold

1шт.

O10720AB

X

HOSE - water by-pass, thermostat and water manifold

1шт.

No. 9 hose clamp (1-5/8" O.D. hose), thermostat and water manifold

2шт.
